LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 417930746 & Above) (Rev A) (2025) LH Mud Flap Assembly Parts Diagram
144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

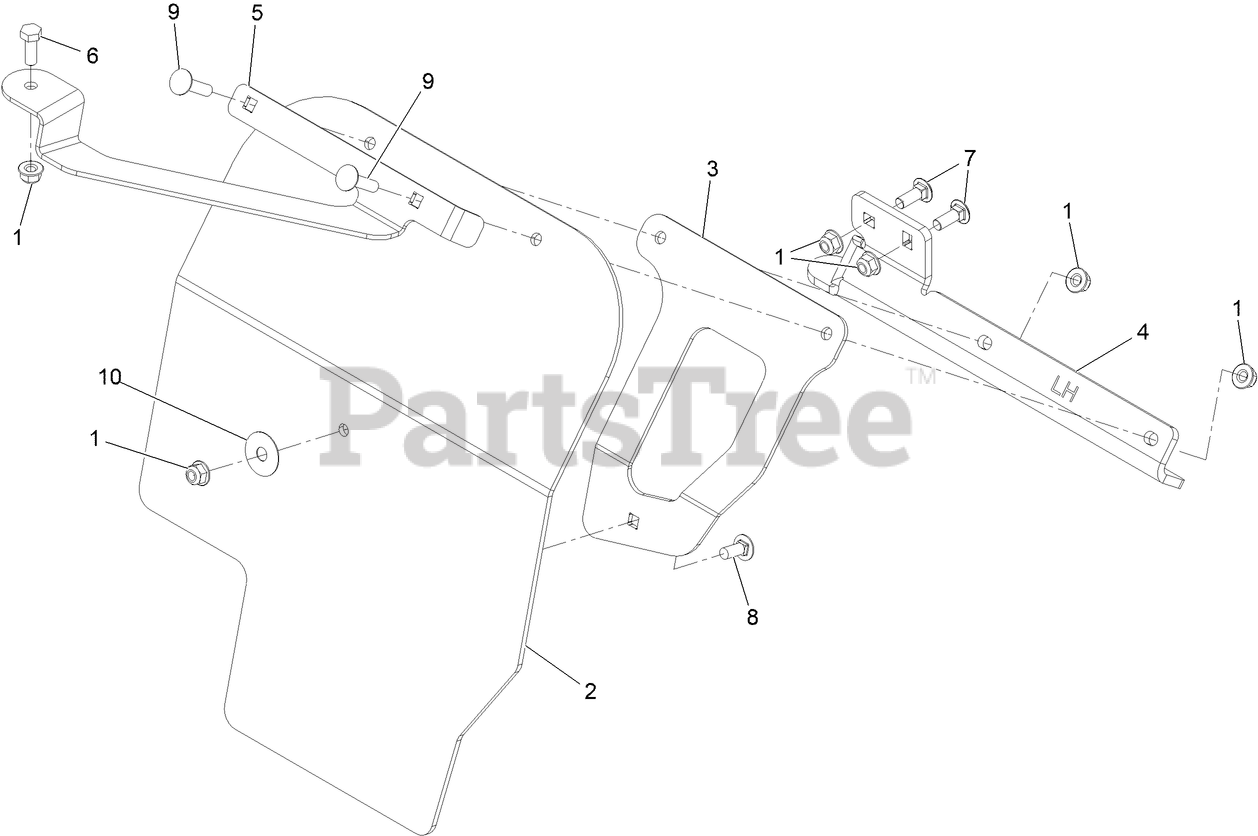

LH Mud Flap Assembly Parts Diagram
Exmark 104-8300
NUT-HF, NI
$1.49
$
In Stock, Qty 7
Exmark 135-4912
LH MUD FLAP
$32.99
$
Usually ships in 3-6 days
Exmark 135-4938-03
SUPPORT, LH MUD FLAP
$39.99
$
Usually ships in 3-6 days
Exmark 146-5321-03
PLATE-LH MUD FLAP BRACKET
$54.99
$
Usually ships in 0 days
Exmark 146-5323-03
PLATE-LH MUD FLAP SUPPORT
$27.99
$
Usually ships in 0 days
Exmark 322-4
SCREW-HH
$0.99
$
In Stock, Qty 20+
Exmark 3230-16
SCREW-CARR
$2.99
$
In Stock, Qty 20+
Exmark 3230-23
SCREW-CARR
$1.49
$
In Stock, Qty 20+
Exmark 3230-3
Bolt-Carriage 5/16-18 X 1 1/4
$1.49
$
In Stock, Qty 9
Exmark 105-6814
WASHER-PLAIN
$1.49
$
In Stock, Qty 9
