LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 417930746 & Above) (Rev A) (2025) Starting Motor Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

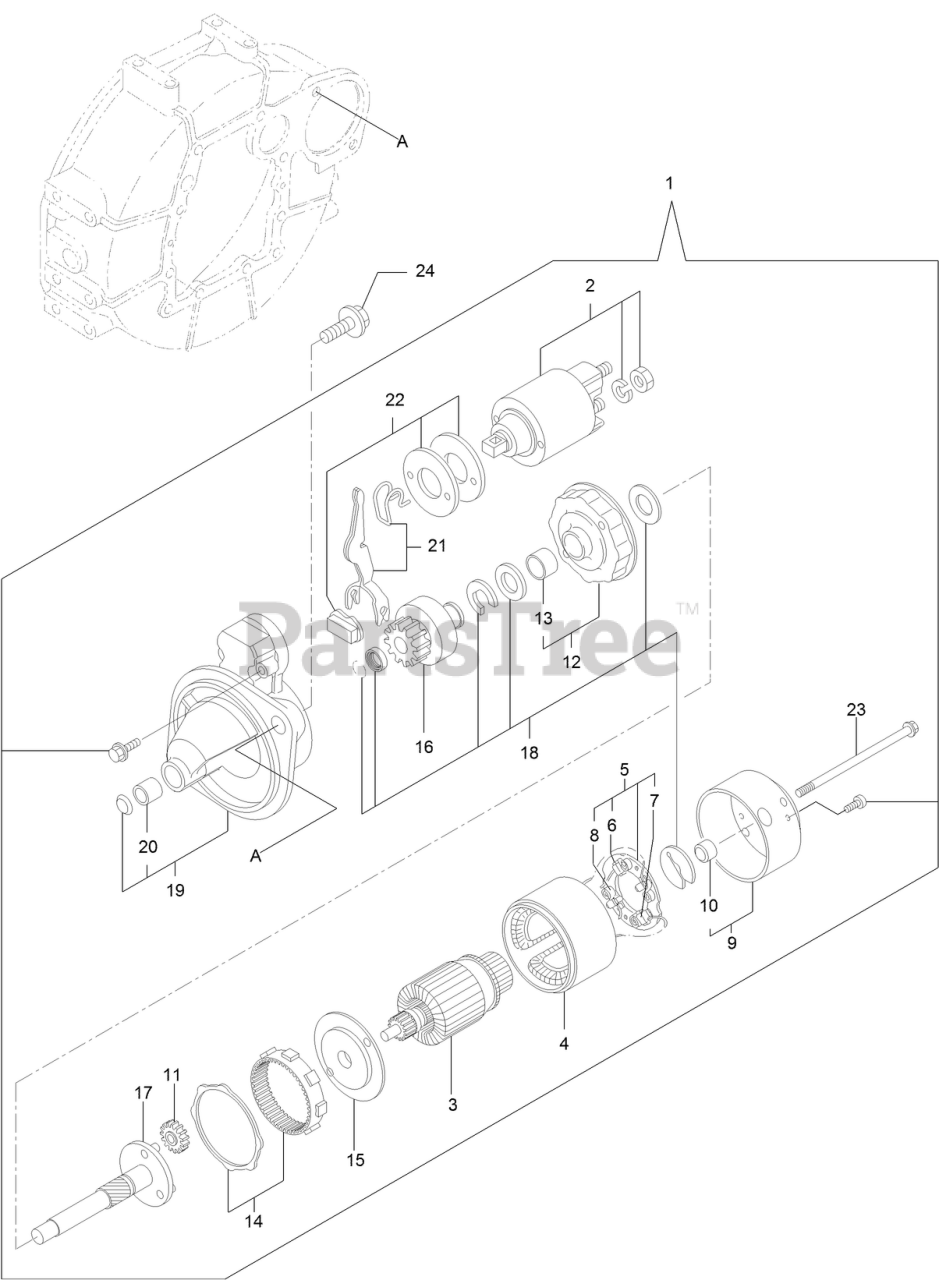

Starting Motor Assembly Parts Diagram

  • Title

1

Exmark 127-3818

STARTER ASM

$925.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3819

SWITCH ASM

$300.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3820

Armature ASM

$237.99

$

Usually ships in 3-6 days

0

4

Exmark 127-3821

Yoke ASM

$233.99

$

Usually ships in 3-6 days

0

5

Exmark 127-3822

Brush Holder ASM

$105.99

$

Usually ships in 3-6 days

0

6

Exmark 127-3823

Brush

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 127-3824

BRUSH SET

$26.99

$

Usually ships in 3-6 days

0

8

Exmark 127-3825

SPRING

$7.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3826

Cover ASM

$26.99

$

Usually ships in 3-6 days

0

10

Exmark 127-3827

Metal

$38.99

$

Usually ships in 3-6 days

0

11

Exmark 127-3828

Gear

$26.99

$

Usually ships in 3-6 days

0

12

Exmark 127-3829

Bracket

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 127-3830

Bracket

$48.99

$

Usually ships in 3-6 days

0

14

Exmark 127-3831

Gear

$76.99

$

Usually ships in 3-6 days

0

15

Exmark 127-3832

Bracket

$4.49

$

Usually ships in 3-6 days

0

16

Exmark 127-3833

PINION ASM

$194.99

$

Usually ships in 3-6 days

0

17

Exmark 127-3834

Shaft

$190.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3835

Washer Set

$18.99

$

Usually ships in 0 days

0

19

Exmark 127-3836

Case ASM

$217.99

$

Usually ships in 0 days

0

20

Exmark 127-3837

Metal-Starter

$8.49

$

Usually ships in 0 days

0

21

Exmark 127-3838

Lever Set

$59.99

$

Usually ships in 0 days

0

22

Exmark 127-3839

Dust Cover ASM

$6.99

$

Usually ships in 0 days

0

23

Exmark 135-4024

BOLT-THROUGH

$6.49

$

Usually ships in 3-6 days

0

24

Exmark 125-7225

BOLT

$5.49

$

Usually ships in 3-6 days

0
