LZS86TDYM12RW0 - Exmark 144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT (SN: 417930746 & Above) (Rev A) (2025) Suction Manifold Assembly Parts Diagram

144" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV86CT

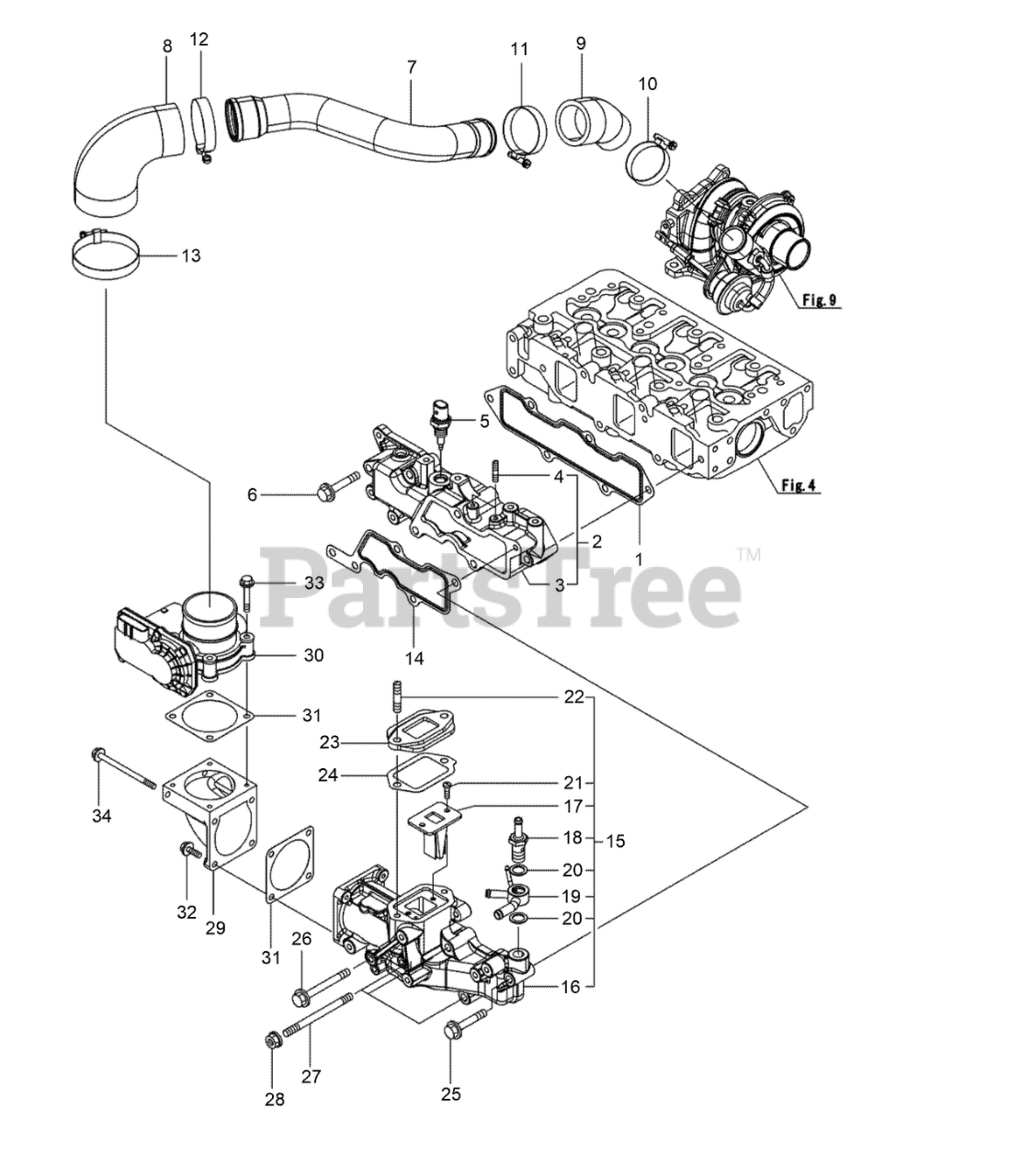

Suction Manifold Assembly Parts Diagram

  • Title

1

Exmark 127-3769

GASKET-MANIFOLD, INTAKE

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3770

INTAKE MANIFOLD ASM

$378.99

$

Usually ships in 3-6 days

0

3

Exmark 127-3771

MANIFOLD-INTAKE, AIR

$378.99

$

Usually ships in 3-6 days

0

4

Exmark 127-3180

STUD

$3.99

$

Usually ships in 3-6 days

0

5

Exmark 137-5167

SENSOR-TEMPERATURE, AIR

$689.99

$

Usually ships in 3-6 days

0

6

Exmark 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

7

Exmark 127-3772

DUCT SUCTION

$184.99

$

Usually ships in 3-6 days

0

8

Exmark 127-3096

JOINT-RUBBER

$415.99

$

Usually ships in 3-6 days

0

9

Exmark 127-3773

JOINT, RUBBER

$86.99

$

Usually ships in 3-6 days

0

10

Exmark 125-7189

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

11

Exmark 127-3170

CLAMP-HOSE

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 125-7190

CLAMP-HOSE

$14.99

$

Usually ships in 3-6 days

0

13

Exmark 127-3171

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

14

Exmark 127-3034

GASKET-COLLECTOR

$11.99

$

Usually ships in 3-6 days

0

15

Exmark 127-3093

INTAKE COLLECTOR ASM

$662.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3092

COLLECTOR-INTAKE

$232.99

$

Usually ships in 3-6 days

0

17

Exmark 127-3139

VALVE-REED

$212.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3080

JOINT-HOSE

$59.99

$

Usually ships in 3-6 days

0

19

Exmark 127-3081

Joint-Hose

$122.99

$

Usually ships in 0 days

0

20

Exmark 127-3166

Washer-Seal

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 127-3168

Screw

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 138-7831

STUD, M8X 35

$4.99

$

Usually ships in 3-6 days

0

23

Exmark 127-3045

SPACER-VALVE, E G R

$39.99

$

Usually ships in 3-6 days

0

24

Exmark 127-3046

GASKET-E G R

$5.99

$

Usually ships in 3-6 days

0

25

Exmark 125-7220

BOLT

$5.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3178

Bolt

$

$

Currently unavailable

27

Exmark 127-3182

Stud

$

$

Currently unavailable

28

Exmark 125-7229

NUT

$19.99

$

Usually ships in 3-6 days

0

29

Exmark 127-3035

Bend-Inlet

$

$

Currently unavailable

30

Exmark 127-3036

BODY-THROTTLE

$1504.99

$

Usually ships in 3-6 days

0

31

Exmark 127-3037

GASKET-THROTTLE

$3.49

$

Usually ships in 3-6 days

0

32

Exmark 125-7209

BOLT

$3.49

$

Usually ships in 3-6 days

0

33

Exmark 125-7211

BOLT

$3.99

$

Usually ships in 3-6 days

0

34

Exmark 127-3177

Bolt

$

$

Currently unavailable
