LZS88CDYM724W0 - Exmark 72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Transmission Assembly (Cont.) Charge Pump Housing Assembly Parts Diagram

72" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

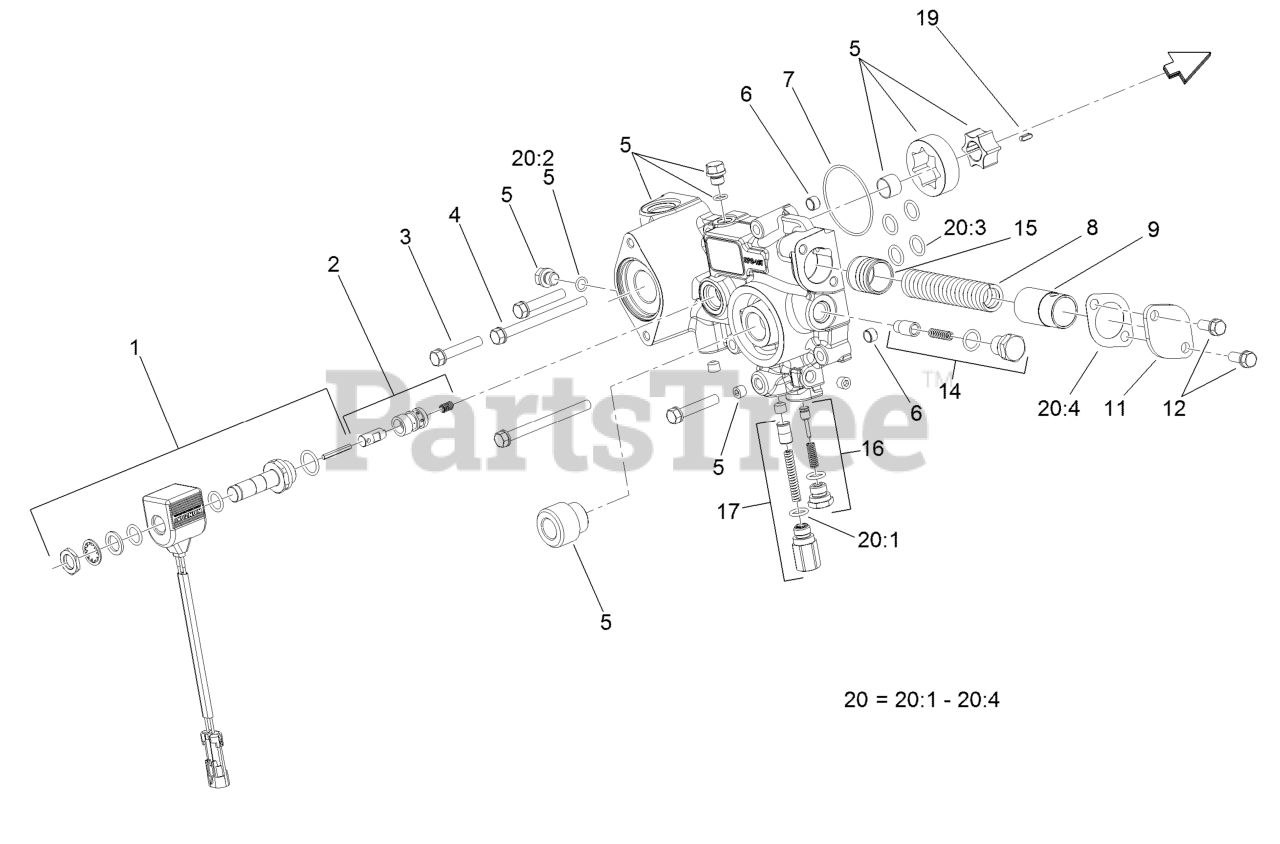

Transmission Assembly (Cont.) Charge Pump Housing Assembly Parts Diagram

  • Title

1

Exmark 107-0851

Solenoid ASM

$555.99

$

In Stock, only 1 left!

0

2

Exmark 107-0850

Solenoid Valve ASM

$161.99

$

Usually ships in 3-6 days

0

3

Exmark 107-0863

Bolt

$4.49

$

Usually ships in 3-6 days

0

4

Exmark 107-0864

Bolt

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 107-0840

Pump Body ASM

$1198.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0848

Pin

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 107-0856

O-Ring

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 107-0845

Spring

$60.99

$

Usually ships in 3-6 days

0

9

Exmark 107-0844

Collar

$72.99

$

Usually ships in 3-6 days

0

11

Exmark 107-0846

Cover

$

$

Currently unavailable

12

Exmark 93-0457

Bolt And Washer ASM

$5.49

$

In Stock, only 1 left!

0

14

Exmark 107-0843

Filter Bypass Valve ASM

$129.99

$

Usually ships in 3-6 days

0

15

Exmark 107-0818

Piston

$317.99

$

Usually ships in 3-6 days

0

16

Exmark 107-0842

Charge Relief Valve ASM

$61.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0841

Pressure Valve ASM

$80.99

$

Usually ships in 3-6 days

0

19

Exmark 107-0865

Key

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 107-0855

Charge Pump Seal Kit

$23.99

$

Usually ships in 3-6 days

0

20:1

Exmark 93-0418

O-Ring

$8.49

$

In Stock, only 3 left!

0

20:2

Exmark 107-0817

O Ring-Plug

$3.49

$

Usually ships in 3-6 days

0

20:3

Exmark 104-3298

Packing

$

$

Not available

20:4

Exmark 107-0847

Gasket

$7.49

$

In Stock, only 2 left!

0
