LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Center Deck Guard Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

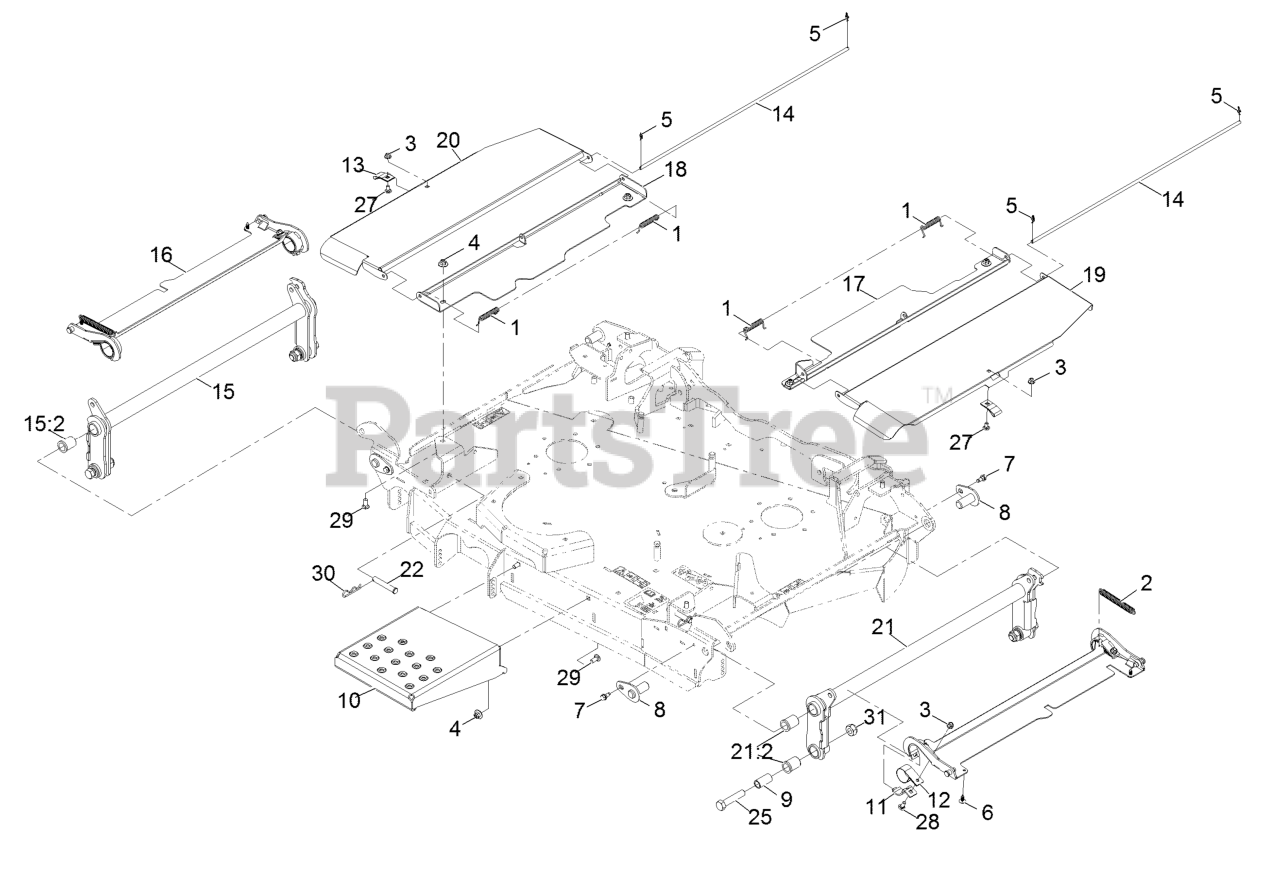

Center Deck Guard Assembly Parts Diagram

  • Title

1

Exmark 99-5293

Spring

$9.99

$

In Stock, Qty 14

0

2

Exmark 103-4813

Spring

$6.49

$

In Stock, only 1 left!

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-6639

Pin-Cotter, Locking

$1.49

$

In Stock, only 4 left!

0

6

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 14

0

7

Exmark 126-4424

Screw-Shoulder

$2.99

$

In Stock, Qty 15

0

8

Exmark 126-9411

Pin-Deck

$23.99

$

In Stock, Qty 17

0

9

Exmark 126-9445

Bushing-Float, Deck
(Superseded to 135-5125)

$12.99

$

In Stock, Qty 16

0

10

Exmark 126-9745-03

Panel-Step

$103.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9764

Plate-Retainer, Bearing

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 135-0584

Bearing-Strap, Nylon

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 135-0608

Bearing-Strap, Nylon

$5.49

$

In Stock, only 4 left!

0

14

Exmark 135-1023

Cover-Rod, Pivot

$36.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1046

RH Fold Arm ASM

$557.99

$

In Stock, only 2 left!

0

15:2

Exmark 135-1841

Bushing-Flanged
(Superseded to 142-4794)

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 135-2630-01

Cover-Wing

$177.99

$

Usually ships in 3-6 days

0

17

Exmark 135-2651-01

Shield-Center, LH

$62.99

$

Usually ships in 3-6 days

0

18

Exmark 135-2652-01

Shield-Center, RH

$52.99

$

Usually ships in 3-6 days

0

19

Exmark 135-1839-03

Panel-Shield Hinge, LH

$69.99

$

Usually ships in 3-6 days

0

20

Exmark 135-1840-03

Panel-Shield Hinge, RH

$69.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1844

LH Fold Arm ASM

$557.99

$

In Stock, only 2 left!

0

21:2

Exmark 135-1841

Bushing-Flanged
(Superseded to 142-4794)

$15.99

$

Usually ships in 3-6 days

0

22

Exmark 283-55

Pin-Clevis

$11.99

$

In Stock, Qty 9

0

25

Exmark 327-9

Screw-HH

$3.99

$

In Stock, only 4 left!

0

27

Exmark 3230-15

Screw-CARR

$1.99

$

In Stock, only 4 left!

0

28

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3231-12

Bolt-CARR

$6.49

$

In Stock, only 3 left!

0

30

Exmark 3290-355

Pin-Hair

$2.49

$

In Stock, Qty 20+

0

31

Exmark 3296-61

Nut-Lock

$15.99

$

Usually ships in 3-6 days

0
