LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Center Deck Idler Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

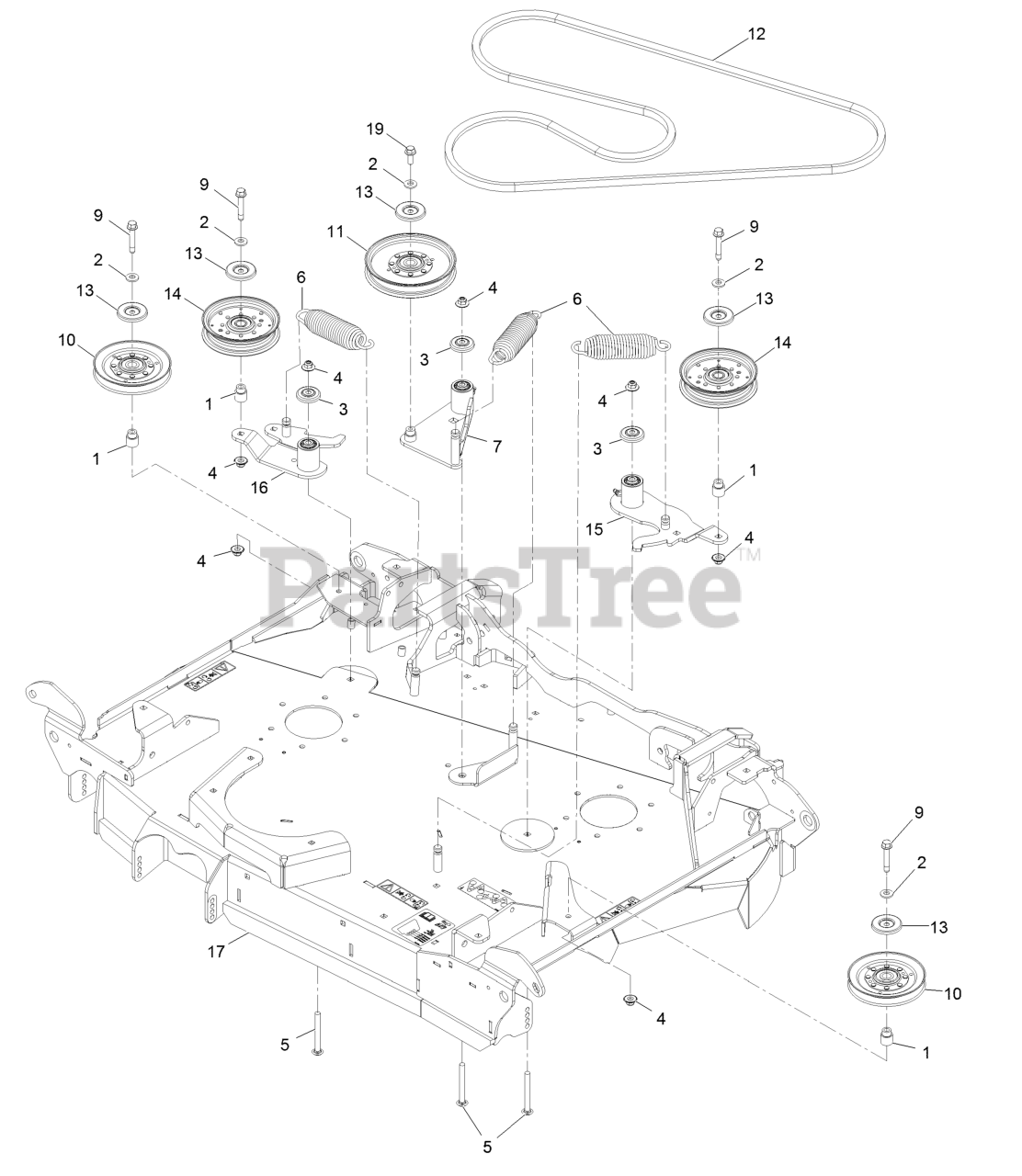

Center Deck Idler Assembly Parts Diagram

  • Title

1

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

2

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 10

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-1502

Bolt-Carriage Shoulder 3/8-16 X 3 1/2

$7.99

$

In Stock, Qty 11

0

6

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 20+

0

7

Exmark 126-2585

Idler Arm ASM

$174.99

$

Usually ships in 3-6 days

0

9

Exmark 126-2956

Screw-HHF W/ Patch

$6.49

$

In Stock, only 4 left!

0

10

Exmark 126-2960

Idler-V

$66.99

$

In Stock, only 2 left!

0

11

Exmark 126-7685

Idler-Pulley

$63.99

$

In Stock, Qty 20+

0

12

Exmark 126-7924

V-Belt

$119.99

$

In Stock, Qty 10

0

13

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-9187

Pulley-Idler, Flat

$62.99

$

In Stock, Qty 20+

0

15

Exmark 126-9435

Idler ASM

$164.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9438

Idler ASM

$164.99

$

Usually ships in 3-6 days

0

17

Exmark 135-1042

ASM-Deck, Ctr 96/120

$2883.99

$

In Stock, only 1 left!

0

19

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 17

0
