LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Center Deck Spindle, Blade and Baffle Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

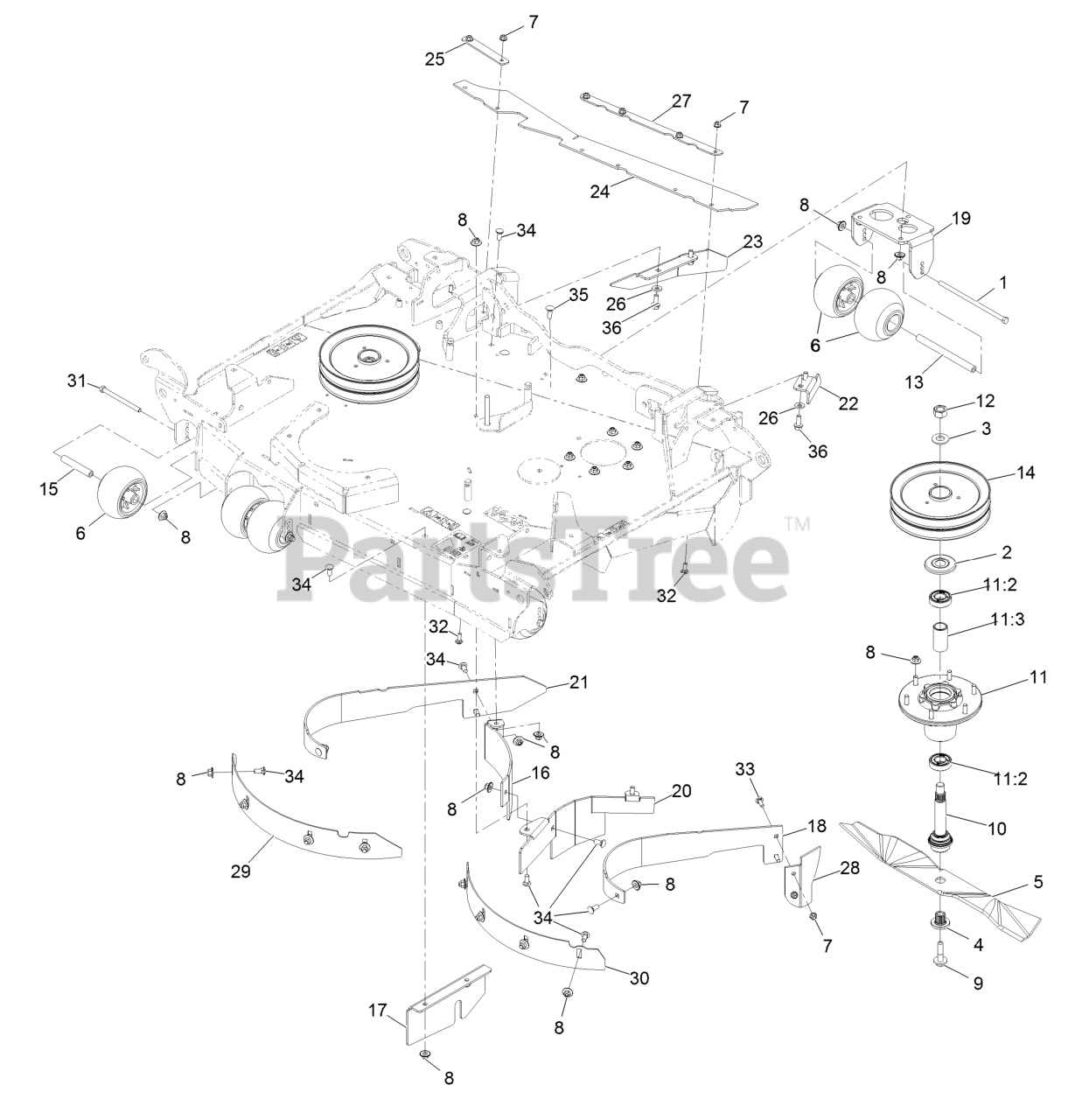

Center Deck Spindle, Blade and Baffle Assembly Parts Diagram

  • Title

1

Exmark 99-7203

Screw-HH

$9.99

$

In Stock, Qty 6

0

2

Exmark 103-1330

Guard-Bearing Top

$5.49

$

In Stock, only 2 left!

0

3

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

4

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

5

Exmark 103-6394

Blade, Mulching
(Superseded to 103-6394-S)

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

10

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 17

0

11

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 14

0

11:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

11:3

Exmark 116-3312

Spacer-Bearing

$9.99

$

In Stock, Qty 9

0

12

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 19

0

13

Exmark 126-6115

Spacer-Wheel

$11.99

$

Usually ships in 3-6 days

0

14

Exmark 126-6634

Sheave-Double 96Rd

$169.99

$

In Stock, Qty 5

0

15

Exmark 126-7140

Spacer-Wheel Short

$15.99

$

In Stock, Qty 7

0

16

Exmark 135-0601-01

Baffle-Center, Rear (RH)

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 135-0603-01

Plate-Block, Front

$28.99

$

Usually ships in 3-6 days

0

18

Exmark 135-0792-01

Baffle-Dogleg, Center (LH)

$69.99

$

Usually ships in 3-6 days

0

19

Exmark 135-1036-01

Bracket-Antiscalp, Rear

$52.99

$

Usually ships in 3-6 days

0

20

Exmark 135-1827-01

Baffle-Center

$52.99

$

Usually ships in 3-6 days

0

21

Exmark 135-2451-01

Baffle-Dogleg, Center (RH)

$69.99

$

Usually ships in 3-6 days

0

22

Exmark 135-2452-01

Baffle-Breaker

$15.99

$

Usually ships in 3-6 days

0

23

Exmark 135-2453-01

Plate-Fin, Discharge

$31.99

$

Usually ships in 3-6 days

0

24

Exmark 135-2618

Flap-Discharge

$35.99

$

Usually ships in 3-6 days

0

25

Exmark 135-2455-03

Support-Flap, LH

$7.99

$

Usually ships in 3-6 days

0

26

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

27

Exmark 135-2457-03

Support-Flap, LH

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 135-2458

Guard-Discharge

$7.99

$

Usually ships in 3-6 days

0

29

Exmark 135-2459-01

Baffle-Depth, LH

$33.99

$

Usually ships in 3-6 days

0

30

Exmark 135-2460-01

Baffle-Depth, RH

$33.99

$

Usually ships in 3-6 days

0

31

Exmark 323-38

Screw-HH 3/8-16 X 4 3/4

$11.99

$

In Stock, only 2 left!

0

32

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

33

Exmark 3230-22

Bolt-Carriage 5/16-18 X 1 Sp
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

34

Exmark 3231-12

Bolt-CARR

$6.49

$

In Stock, only 3 left!

0

35

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

36

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 15

0
