LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Cylinder Head and Cover Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

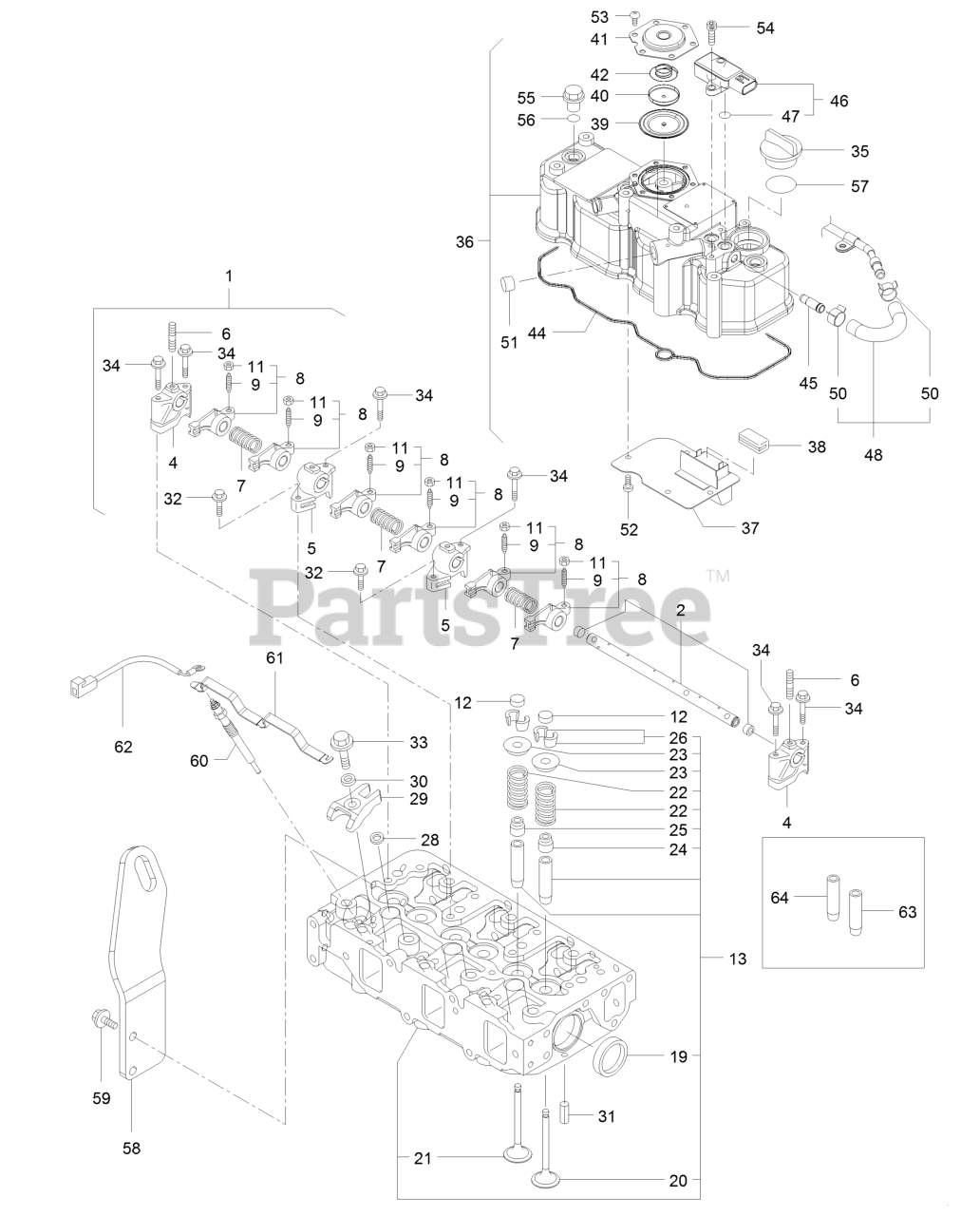

Cylinder Head and Cover Assembly Parts Diagram

  • Title

1

Exmark 127-3757

Shaft ASM

$642.99

$

Usually ships in 3-6 days

0

2

Exmark 127-3758

Shaft

$137.99

$

Usually ships in 3-6 days

0

4

Exmark 127-2974

Support

$75.99

$

Usually ships in 0 days

0

5

Exmark 127-2975

Support

$53.99

$

Usually ships in 3-6 days

0

6

Exmark 135-4012

Bolt,Stud

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 127-2995

Spring

$

$

Currently unavailable

8

Exmark 127-2989

Arm-Rocker

$62.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7013

Screw-Adjust, Valve

$30.99

$

Usually ships in 3-6 days

0

11

Exmark 125-7014

Nut

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 127-2996

Cap-Valve

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 127-2990

Valve

$111.99

$

Usually ships in 3-6 days

0

19

Exmark 127-4720

Cylinder Head ASM

$4302.99

$

Usually ships in 3-6 days

0

20

Exmark 127-4710

Valve

$34.99

$

Usually ships in 3-6 days

0

21

Exmark 127-3012

Spring

$

$

Currently unavailable

22

Exmark 127-3013

Retainer-Spring

$

$

Currently unavailable

23

Exmark 127-2986

Seal-Stem, Valve

$7.49

$

Usually ships in 3-6 days

0

24

Exmark 127-3027

Seal-Stem, Valve

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 125-7240

Plug

$4.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3186

Pin-Cotter

$20.99

$

Usually ships in 3-6 days

0

28

Exmark 127-3021

Gasket-Injector

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 127-3028

Retainer-Injector

$74.99

$

Usually ships in 3-6 days

0

30

Exmark 127-2980

Washer-Injector

$22.99

$

Usually ships in 3-6 days

0

31

Exmark 125-7184

Pin-Spring

$4.49

$

Usually ships in 3-6 days

0

32

Exmark 125-7215

Bolt

$4.49

$

Usually ships in 3-6 days

0

33

Exmark 125-7217

Bolt

$5.99

$

Usually ships in 3-6 days

0

34

Exmark 125-7220

Bolt

$6.49

$

Usually ships in 3-6 days

0

35

Exmark 125-6972

Cover-Filler

$13.99

$

Usually ships in 3-6 days

0

36

Exmark 127-4719

Cylinder Head Cover ASM

$380.99

$

Usually ships in 3-6 days

0

37

Exmark 127-2988

Plate

$179.99

$

Usually ships in 3-6 days

0

38

Exmark 125-7012

Baffle

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 125-6959

Diaphragm

$66.99

$

Usually ships in 3-6 days

0

40

Exmark 125-6960

Plate

$19.99

$

Usually ships in 3-6 days

0

41

Exmark 125-6961

Plate-Breather

$31.99

$

Usually ships in 3-6 days

0

42

Exmark 125-6962

Spring-Diaphragm

$22.99

$

Usually ships in 3-6 days

0

44

Exmark 127-3856

Gasket-Head, Cylinder

$77.99

$

In Stock, only 1 left!

0

45

Exmark 127-3026

Joint

$62.99

$

Usually ships in 3-6 days

0

46

Exmark 127-3029

Sensor-Pressure

$1037.99

$

Usually ships in 3-6 days

0

47

Exmark 127-3032

O Ring-Sensor, Pressure

$23.99

$

Usually ships in 3-6 days

0

48

Exmark 127-3040

Hose ASM

$117.99

$

Usually ships in 3-6 days

0

50

Exmark 127-3041

Clip-Hose

$29.99

$

Usually ships in 3-6 days

0

51

Exmark 125-6913

Plug

$9.49

$

Usually ships in 3-6 days

0

52

Exmark 125-7186

Screw

$3.49

$

Usually ships in 3-6 days

0

53

Exmark 125-7186

Screw

$3.49

$

Usually ships in 3-6 days

0

54

Exmark 127-3184

Bolt

$5.99

$

Usually ships in 3-6 days

0

55

Exmark 125-6974

Knob

$7.49

$

Usually ships in 3-6 days

0

56

Exmark 93-0418

O-Ring

$8.49

$

In Stock, only 3 left!

0

57

Exmark 125-7197

O-Ring

$2.99

$

In Stock, only 1 left!

0

58

Exmark 127-4718

Lifter-Engine

$63.99

$

Usually ships in 3-6 days

0

59

Exmark 100-6928

Bolt
(Superseded to 125-7214)

$4.99

$

Usually ships in 3-6 days

0

60

Exmark 127-2991

Plug-Glow

$193.99

$

In Stock, only 3 left!

0

61

Exmark 127-3768

Connector-Plug, Glow

$39.99

$

Usually ships in 3-6 days

0

62

Exmark 131-2704

Harness-Wire

$35.99

$

Usually ships in 3-6 days

0

63

Exmark 127-2979

Guide

$33.99

$

Usually ships in 3-6 days

0

64

Exmark 127-2997

Guide-Valve

$13.99

$

Usually ships in 3-6 days

0
