LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) Front LH Caster Fork and Tire Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

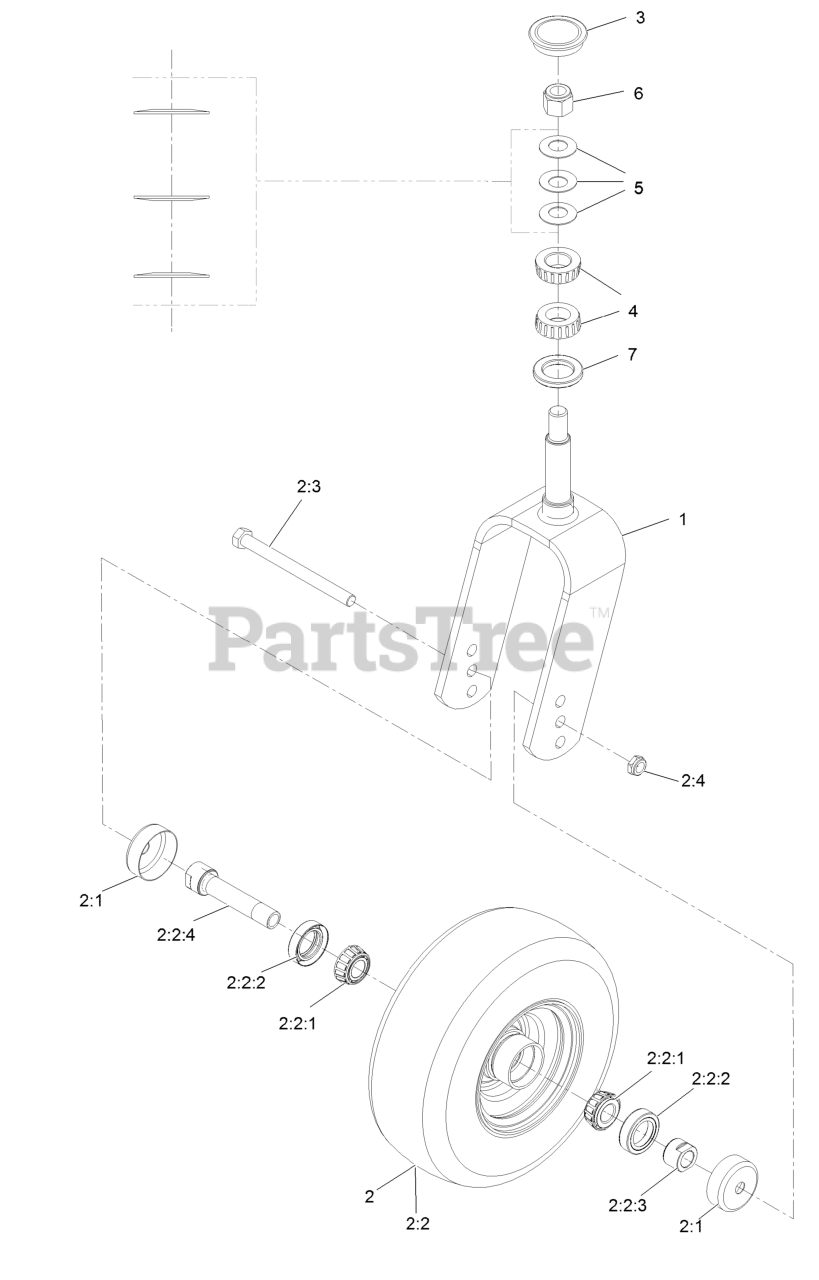

Front LH Caster Fork and Tire Assembly Parts Diagram

  • Title

1

Exmark 135-3794-01

Caster-Fork [red]

$229.99

$

In Stock, only 4 left!

0

2

Exmark 109-3524

Asm, Wheel And Bearings

$274.99

$

In Stock, Qty 20+

0

2:1

Exmark 103-2768

Guard-Seal

$3.99

$

In Stock, Qty 20+

0

2:2

Wheel And Bearing ASM

$

$

Not available

2:2:1

Exmark 1-633585

Bearing-Cone Tapered Roller

$25.99

$

In Stock, Qty 20+

0

2:2:2

Exmark 103-0063

Seal-Double Lip

$10.99

$

In Stock, Qty 20+

0

2:2:3

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

2:2:4

Exmark 126-5359

Caster Axle ASM

$20.99

$

In Stock, only 2 left!

0

2:3

Exmark 325-20

Screw-HH 1/2-13 X 6

$8.49

$

In Stock, Qty 10

0

2:4

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

3

Exmark 103-4882

Cap-Grease

$8.99

$

In Stock, Qty 20+

0

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$15.99

$

In Stock, Qty 20+

0

5

Exmark 1-633508

Washer-Spring Disc

$3.99

$

In Stock, Qty 20+

0

6

Exmark 3296-51

Nut-Nyloc 3/4-10

$7.49

$

In Stock, Qty 20+

0

7

Exmark 1-543511

Seal-Grease

$12.99

$

In Stock, Qty 14

0
