96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

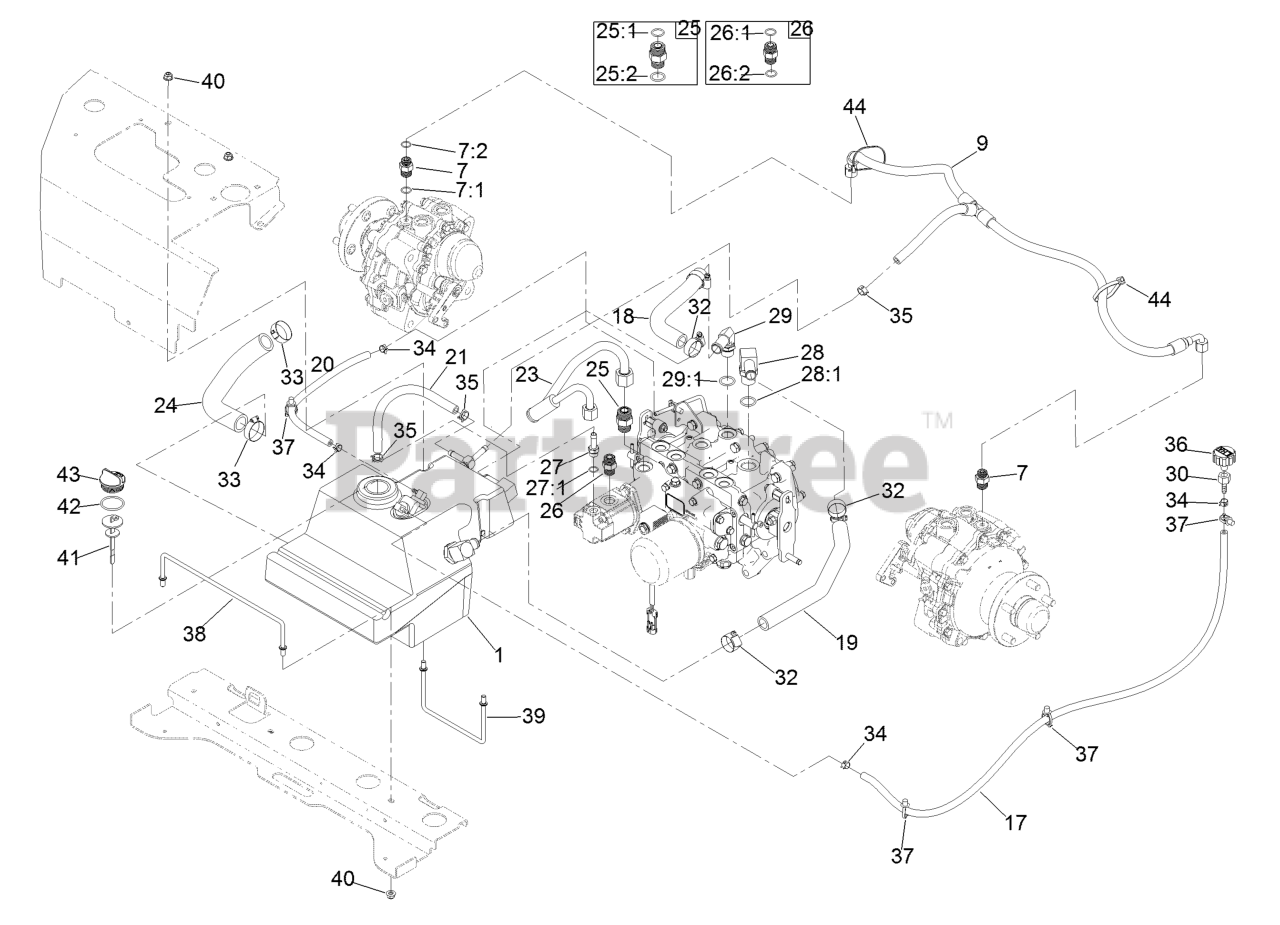

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 126-6764

HYD Reservoir ASM
(Superseded to 142-5034)

$828.99

$

Usually ships in 3-6 days

0

7

Exmark 340-3

Fitting-Straight

$11.99

$

Usually ships in 3-6 days

0

7:1

Exmark 237-22

O-Ring

$2.99

$

In Stock, Qty 20+

0

7:2

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 17

0

9

Exmark 135-3731

Tee Hose ASM

$134.99

$

Usually ships in 3-6 days

0

17

Exmark 126-6776

Hose

$24.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6767

Hose-Return

$18.99

$

Usually ships in 3-6 days

0

19

Exmark 126-6768

Hose-Return

$21.99

$

Usually ships in 3-6 days

0

20

Exmark 126-6778

Hose

$13.99

$

Usually ships in 3-6 days

0

21

Exmark 126-6766

Hose

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 126-8688

Tube ASM

$164.99

$

Usually ships in 3-6 days

0

24

Exmark 126-6774

Hose-Suction

$22.99

$

Usually ships in 3-6 days

0

25

Exmark 340-7

Fitting-Straight

$14.99

$

In Stock, Qty 13

0

25:1

Exmark 237-65

O-Ring

$2.99

$

In Stock, Qty 14

0

25:2

Exmark 237-80

O-Ring

$6.49

$

In Stock, Qty 5

0

26

Exmark 340-4

Fitting-STR

$11.99

$

In Stock, only 3 left!

0

26:1

Exmark 237-30

O-Ring

$2.99

$

In Stock, Qty 20+

0

26:2

Exmark 237-79

O-Ring

$5.99

$

In Stock, Qty 17

0

27

Exmark 103-1912

Adapter-Straight

$21.99

$

Usually ships in 3-6 days

0

27:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

28

Exmark 353-987

Fitting-Elbow, 90

$75.99

$

Usually ships in 3-6 days

0

28:1

Exmark 237-81

O-Ring

$2.99

$

In Stock, Qty 5

0

29

Exmark 87-8170

Fitting-90

$47.99

$

Usually ships in 3-6 days

0

29:1

Exmark 237-80

O-Ring

$6.49

$

In Stock, Qty 5

0

30

Exmark 354-95

Fitting-Straight

$6.99

$

Usually ships in 3-6 days

0

32

Exmark 2412-129

Clamp-Hose

$4.99

$

In Stock, Qty 7

0

33

Exmark 2412-34

Clamp-Hose

$2.49

$

In Stock, only 1 left!

0

34

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

35

Exmark 103-1988

Clamp-Hose 11/16

$1.49

$

In Stock, Qty 20+

0

36

Exmark 68-6150

Breather

$27.99

$

In Stock, only 4 left!

0

37

Exmark 32180-030

Clip-Tie

$4.99

$

In Stock, Qty 7

0

38

Exmark 126-7547

Rod-Support, HYD Tank

$21.99

$

Usually ships in 3-6 days

0

39

Exmark 126-7546

Rod-Support, HYD Tank

$27.99

$

Usually ships in 3-6 days

0

40

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

41

Exmark 112-6365

Dipstick

$88.99

$

Usually ships in 3-6 days

0

42

Exmark 94-8166

O-Ring

$4.99

$

Usually ships in 3-6 days

0

43

Exmark 93-7498

Plug-Plastic

$27.99

$

In Stock, only 3 left!

0

44

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 12

0
