LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 402082300 - 404314158) (2018) LH Wing Deck Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

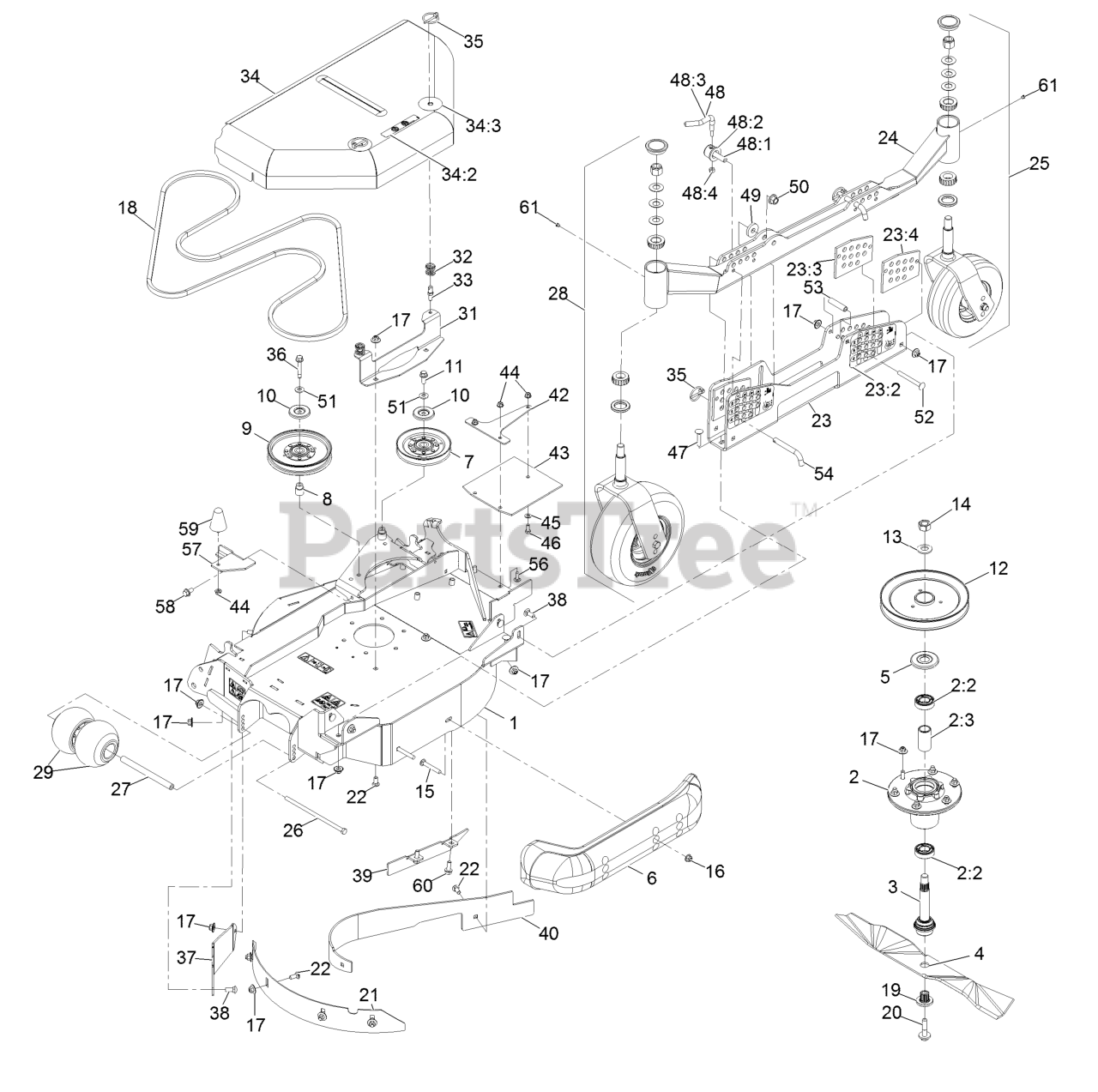

LH Wing Deck Assembly Parts Diagram

  • Title

1

Exmark 135-2428

ASM-Deck, LH Wing 96/120

$2072.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 14

0

2:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

Spacer-Bearing

$9.99

$

In Stock, Qty 9

0

3

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 20+

0

4

Exmark 103-6394

Blade, Mulching
(Superseded to 103-6394-S)

$38.99

$

In Stock, Qty 20+

0

5

Exmark 103-1330

Guard-Bearing Top

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 112-1479

Skid-Bumper, Deck

$101.99

$

Usually ships in 3-6 days

0

7

Exmark 126-2960

Idler-V

$66.99

$

In Stock, only 2 left!

0

8

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

9

Exmark 126-7685

Idler-Pulley

$63.99

$

In Stock, Qty 20+

0

10

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3234-42

Screw HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 17

0

12

Exmark 126-6635

Sheave-Single 96Rd

$123.99

$

In Stock, only 4 left!

0

13

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 15

0

15

Exmark 3231-31

Bolt-Carriage 3/8-16 X 2 1/2

$6.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 126-6442

Belt-V

$123.99

$

In Stock, Qty 8

0

19

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

20

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

21

Exmark 135-2459-01

Baffle-Depth, LH

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 3231-12

Bolt-CARR

$6.49

$

In Stock, only 3 left!

0

23

Exmark 135-2433

LH HOC Channel ASM

$674.99

$

Usually ships in 3-6 days

0

23:2

Exmark 126-8597

Decal-Height Of Cut-LH

$13.99

$

Usually ships in 3-6 days

0

23:3

Exmark 135-2422

Plate-Guide, HOC (LH)

$76.99

$

In Stock, only 1 left!

0

23:4

Exmark 135-2423

Plate-Guide, HOC (RH)

$76.99

$

In Stock, only 2 left!

0

24

Exmark 135-2436-01

Tube-HOC, LH

$479.99

$

Usually ships in 3-6 days

0

25

Caster/Wheel ASM

$

$

Not available

26

Exmark 99-7203

Screw-HH

$9.99

$

In Stock, Qty 9

0

27

Exmark 126-6115

Spacer-Wheel

$11.99

$

In Stock, only 4 left!

0

28

ASM-Caster,11"tire

$

$

Not available

29

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 20+

0

31

Exmark 135-2653-03

Bracket-Shield Mount, Outer

$24.99

$

Usually ships in 3-6 days

0

32

Exmark 126-1503

Spring

$2.99

$

In Stock, Qty 5

0

33

Exmark 126-1504

Pin-Spring
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 135-1815

LH Wing Shield ASM

$288.99

$

Usually ships in 3-6 days

0

34:2

Exmark 93-6687

Decal-No Step

$18.99

$

Usually ships in 3-6 days

0

34:3

Exmark 135-3165

Decal-Scratch Cover

$3.49

$

Usually ships in 3-6 days

0

35

Exmark 92-1298

Pin-Lynch

$3.99

$

In Stock, Qty 18

0

36

Exmark 126-2956

Screw-HHF W/ Patch

$6.49

$

In Stock, only 4 left!

0

37

Exmark 126-9757-01

Plate-Fill, LH Deck

$25.99

$

Usually ships in 3-6 days

0

38

Exmark 3231-2

Bolt-Carriage 3/8-16 X 1

$1.99

$

In Stock, Qty 20+

0

39

Exmark 135-1824-01

Fin-Baffle, Discharge Wing (LH)

$22.99

$

Usually ships in 3-6 days

0

40

Exmark 135-0794-01

Baffle-Dogleg, Center (RH)

$70.99

$

In Stock, only 1 left!

0

42

Exmark 135-0618-03

Support-Flap, LH

$11.99

$

Usually ships in 3-6 days

0

43

Exmark 135-1849

Guard-Tire, LH

$15.99

$

Usually ships in 3-6 days

0

44

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

45

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

46

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

47

Exmark 3231-5

Bolt-Carriage 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 16

0

48

Exmark 107-1664

Lever ASM

$72.99

$

In Stock, only 4 left!

0

48:1

Exmark 106-3239

Screw-Lock

$52.99

$

In Stock, only 2 left!

0

48:2

Exmark 107-1644

Cap-Lock

$18.99

$

Usually ships in 3-6 days

0

48:3

Exmark 106-3241

Lever-Lock
(Superseded to 107-1664)

$72.99

$

In Stock, only 4 left!

0

48:4

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

49

Exmark 30-8770

Washer

$11.99

$

In Stock, only 3 left!

0

50

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

51

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

52

Exmark 3231-11

Bolt-Carriage 3/8-16 X 3 1/2

$5.49

$

In Stock, only 4 left!

0

53

Exmark 135-2424

Spacer

$15.99

$

Usually ships in 3-6 days

0

54

Exmark 135-2073

Pin-HOC

$27.99

$

In Stock, Qty 18

0

56

Exmark 3230-10

Bolt-Carriage 5/16-18 X 7/8

$3.99

$

In Stock, only 1 left!

0

57

Exmark 135-2611-01

Bracket-Cover Retainer

$17.99

$

Usually ships in 3-6 days

0

58

Exmark 110-9380

Screw-HWH

$2.99

$

In Stock, Qty 14

0

59

Exmark 114-1925

Bumper-Rubber

$25.99

$

In Stock, Qty 20+

0

60

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 18

0

61

Exmark 1-811010

Plug

$5.49

$

In Stock, Qty 20+

0
