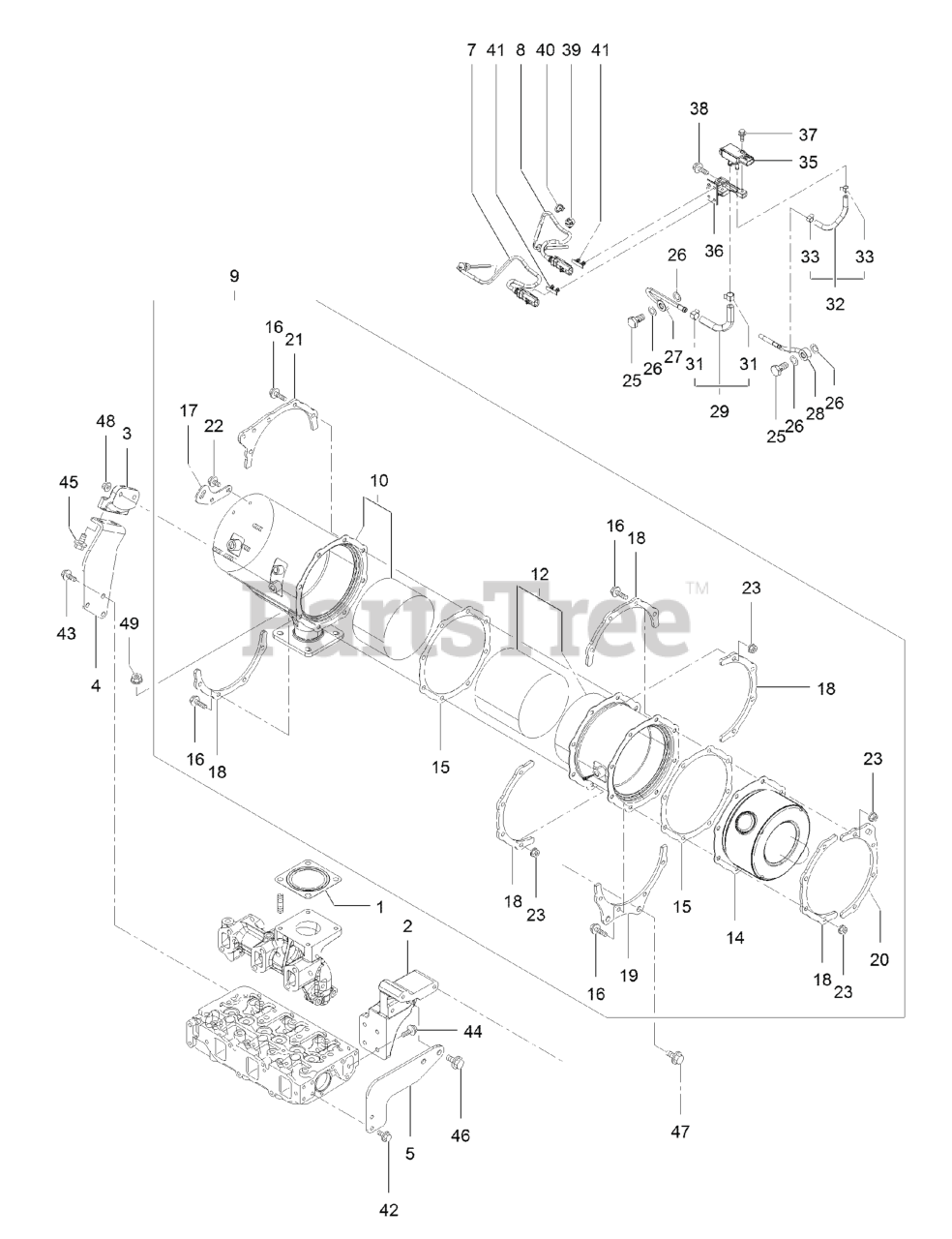

LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) Diesel Particulate Filter Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

Diesel Particulate Filter Assembly Parts Diagram

  • Title

1

Exmark 127-2987

GASKET-SILENCER

$15.99

$

In Stock, only 1 left!

0

2

Exmark 127-4738

STAY-D P F

$392.99

$

Usually ships in 3-6 days

0

3

Exmark 127-4739

STAY-D P F

$86.99

$

Usually ships in 3-6 days

0

4

Exmark 127-4740

STAY-D P F

$44.99

$

Usually ships in 3-6 days

0

5

Exmark 127-4741

STAY-D P F

$72.99

$

Usually ships in 3-6 days

0

7

Exmark 127-4764

SENSOR-TEMP, EXHAUST

$226.99

$

Usually ships in 3-6 days

0

8

Exmark 127-4765

SENSOR-TEMP, EXHAUST

$226.99

$

Usually ships in 3-6 days

0

9

Exmark 127-4759

D P F ASM

$6610.99

$

Usually ships in 3-6 days

0

10

Exmark 127-4732

CASE-D O C

$2175.99

$

Usually ships in 3-6 days

0

12

Exmark 127-4734

CASE-FILTER, SOOT

$1016.99

$

Usually ships in 3-6 days

0

14

Exmark 127-3786

SILENCER-D P F

$588.99

$

Usually ships in 3-6 days

0

15

Exmark 127-3859

GASKET-D P F

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 127-3055

BOLT

$9.99

$

Usually ships in 3-6 days

0

17

Exmark 127-3788

LIFTER-D P F

$36.99

$

Usually ships in 3-6 days

0

18

Exmark 127-3789

STIFFENER-D P F, A

$67.99

$

Usually ships in 3-6 days

0

19

Exmark 127-4735

STIFFENER-D P F, B

$154.99

$

Usually ships in 3-6 days

0

20

Exmark 127-3792

STIFFENER-D P F, C

$92.99

$

Usually ships in 3-6 days

0

21

Exmark 127-4736

STIFFENER-D P F, C

$120.99

$

Usually ships in 3-6 days

0

22

Exmark 125-7213

BOLT

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 125-7229

NUT

$17.99

$

Usually ships in 3-6 days

0

25

Exmark 127-3039

BOLT-JOINT, PIPE

$131.99

$

Usually ships in 3-6 days

0

26

Exmark 127-3056

GASKET-SENSOR

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 127-4744

SENSOR PIPE ASM

$69.99

$

Usually ships in 3-6 days

0

28

Exmark 127-4745

SENSOR PIPE ASM

$69.99

$

Usually ships in 3-6 days

0

29

Exmark 127-4747

EXHAUST HOSE ASM

$37.99

$

Usually ships in 3-6 days

0

31

Exmark 127-3057

Clip-Hose

$

$

Currently unavailable

32

Exmark 127-4748

EXHAUST HOSE ASM

$34.99

$

Usually ships in 3-6 days

0

33

Exmark 127-3058

Clip-Hose

$

$

Currently unavailable

35

Exmark 127-3060

SENSOR-PRESSURE

$997.99

$

Usually ships in 3-6 days

0

36

Exmark 127-4750

BRACKET-SENSOR

$41.99

$

Usually ships in 3-6 days

0

37

Exmark 125-7208

BOLT

$4.49

$

Usually ships in 3-6 days

0

38

Exmark 125-7595

BOLT

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

40

Exmark 127-3124

BAND

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 127-3088

CLIP-CONNNECTOR

$8.99

$

Usually ships in 3-6 days

0

42

Exmark 100-6928

BOLT

$4.99

$

Usually ships in 3-6 days

0

43

Exmark 100-6928

BOLT

$4.99

$

Usually ships in 3-6 days

0

44

Exmark 125-7594

BOLT

$3.49

$

Usually ships in 3-6 days

0

45

Exmark 127-4773

BOLT

$3.99

$

Usually ships in 3-6 days

0

46

Exmark 127-3179

BOLT

$4.49

$

Usually ships in 3-6 days

0

47

Exmark 127-3179

BOLT

$4.49

$

Usually ships in 3-6 days

0

48

Exmark 127-3179

BOLT

$4.49

$

Usually ships in 3-6 days

0

49

Exmark 125-7230

NUT

$3.49

$

Usually ships in 3-6 days

0
