LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 404314159 - 406294344) (2019) RH Wing Deck Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

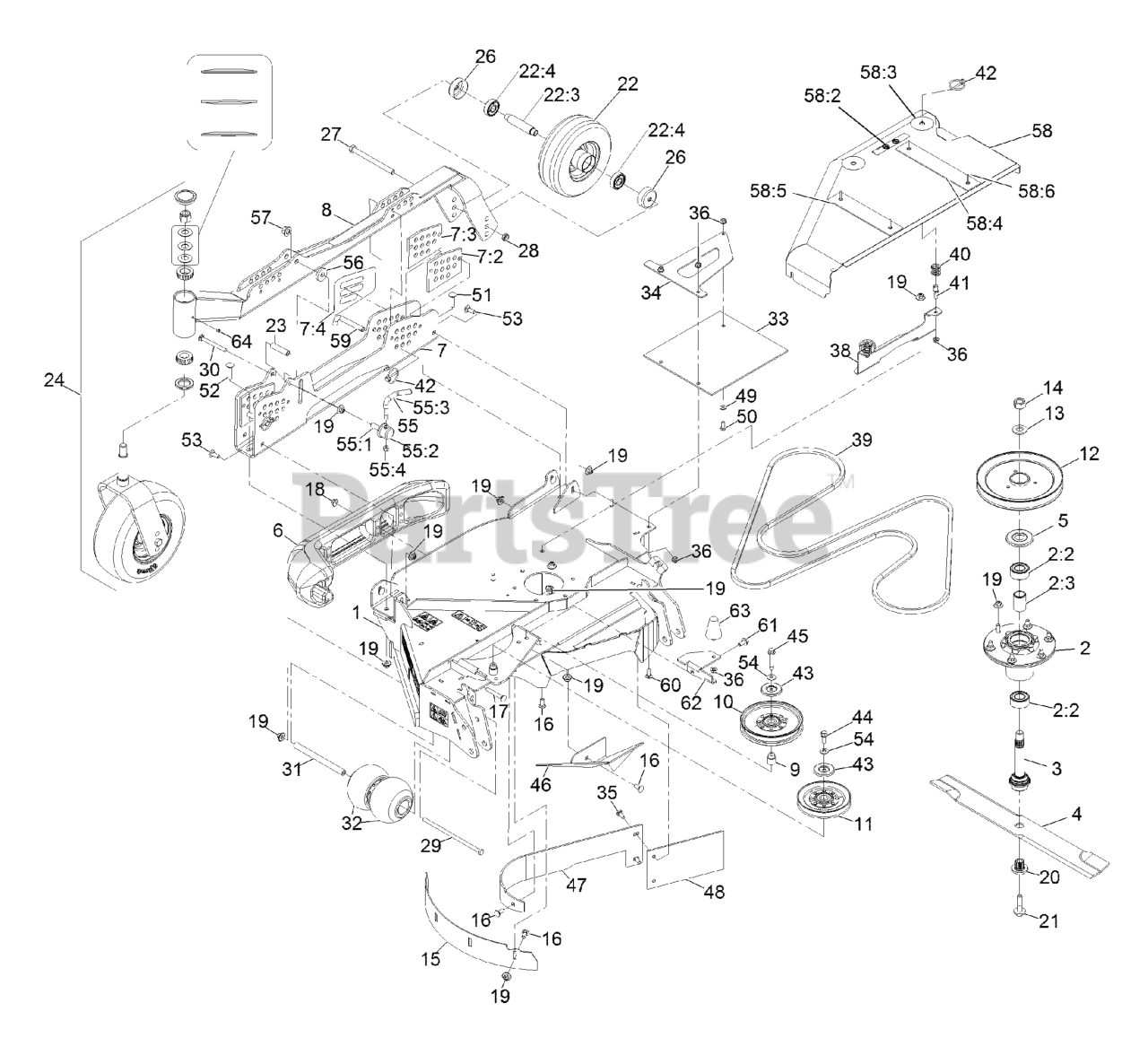

RH Wing Deck Assembly Parts Diagram

  • Title

1

Exmark 135-2429

ASM-DECK, RH WING 96

$2072.99

$

Usually ships in 3-6 days

0

2

Exmark 135-3437

ASM-CUTTER HSG

$170.99

$

In Stock, only 4 left!

0

2:2

Exmark 135-3144

BEARING-3205 TRASHGUARD
(Superseded to 134-6634)

$31.99

$

Usually ships in 3-6 days

0

2:3

Exmark 135-3440

SPACER-BEARING

$8.49

$

In Stock, only 2 left!

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 20+

0

4

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

5

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5595

RH HOC CHANNEL ASM

$623.99

$

Usually ships in 3-6 days

0

7:2

Exmark 135-2422

PLATE-GUIDE, HOC (LH)

$76.99

$

In Stock, only 1 left!

0

7:3

Exmark 135-2423

PLATE-GUIDE, HOC (RH)

$76.99

$

In Stock, only 2 left!

0

7:4

Exmark 126-8760

DECAL-HEIGHT OF CUT, RH

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 135-3788-01

CALL CUSTOMER SERVICE

$674.99

$

Usually ships in 3-6 days

0

9

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

10

Exmark 126-7685

IDLER-PULLEY

$63.99

$

In Stock, Qty 20+

0

11

Exmark 126-2960

IDLER-V

$66.99

$

In Stock, only 2 left!

0

12

Exmark 126-6635

SHEAVE-SINGLE 96RD

$123.99

$

In Stock, only 4 left!

0

13

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 15

0

15

Exmark 135-2460-01

BAFFLE-DEPTH, RH

$33.99

$

Usually ships in 3-6 days

0

16

Exmark 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

17

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

21

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb

$8.49

$

In Stock, Qty 20+

0

22

Exmark 135-2642

WHEEL AND TIRE ASM

$100.99

$

In Stock, Qty 12

0

22:3

Exmark 126-7904

AXLE-CASTER

$22.99

$

In Stock, only 2 left!

0

22:4

Exmark 116-4004

BEARING

$19.99

$

In Stock, Qty 20+

0

23

Exmark 135-2424

SPACER

$15.99

$

Usually ships in 3-6 days

0

24

ASM-Caster,11"tire

Note: Not serviced separately

$

$

Not available

26

Exmark 135-3218

GUARD, SEAL

$5.49

$

In Stock, only 2 left!

0

27

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

28

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

29

Exmark 99-7203

SCREW-HH

$9.99

$

In Stock, Qty 5

0

30

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

31

Exmark 126-6115

SPACER-WHEEL

$11.99

$

Usually ships in 3-6 days

0

32

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

33

Exmark 135-2068

GUARD-TIRE

$25.99

$

Usually ships in 3-6 days

0

34

Exmark 135-2067-03

SUPPORT-FLAP, RH

$20.99

$

Usually ships in 3-6 days

0

35

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

36

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 135-2653-03

BRACKET-SHIELD MOUNT, OUT

$24.99

$

Usually ships in 3-6 days

0

39

Exmark 126-6447

BELT-V

$128.99

$

In Stock, Qty 6

0

40

Exmark 126-1503

SPRING

$2.99

$

In Stock, Qty 5

0

41

Exmark 126-1504

PIN-SPRING
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

42

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 18

0

43

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

44

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 7

0

45

Exmark 126-2956

SCREW-HHF

$6.49

$

In Stock, only 4 left!

0

46

Exmark 135-2448-01

BAFFLE-DEFLECT, RH

$39.99

$

Usually ships in 3-6 days

0

47

Exmark 135-0795-01

BAFFLE-DOGLEG, RH

$57.99

$

Usually ships in 3-6 days

0

48

Exmark 135-0091

FLAP-RUBBER

$13.99

$

Usually ships in 3-6 days

0

49

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

50

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

52

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 16

0

53

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

54

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

55

Exmark 107-1664

LEVER ASM

$72.99

$

In Stock, only 4 left!

0

55:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

In Stock, only 2 left!

0

55:2

Exmark 107-1644

CAP-LOCK

$18.99

$

Usually ships in 3-6 days

0

55:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$72.99

$

In Stock, only 4 left!

0

55:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Exmark 30-8770

WASHER

$11.99

$

In Stock, only 3 left!

0

57

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

58

Exmark 135-6171

ASM-Wing Shield RH

$312.99

$

Usually ships in 3-6 days

0

58:2

Exmark 93-6687

DECAL-NO STEP

$18.99

$

Usually ships in 3-6 days

0

58:3

Exmark 135-3165

DECAL-SCRATCH COVER

$3.49

$

Usually ships in 3-6 days

0

58:4

Exmark 135-6706

Plate-Uhmw 2"

$31.99

$

Usually ships in 3-6 days

0

58:5

Exmark 135-6707

PLATE-FRONT

$31.99

$

Usually ships in 3-6 days

0

58:6

Exmark 133-7130

Rivet-Pop

$1.49

$

Usually ships in 3-6 days

0

59

Exmark 135-2073

PIN-HOC

$27.99

$

In Stock, Qty 18

0

60

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

61

Exmark 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

62

Exmark 135-2611-01

BRACKET-COVER RETAINER

$17.99

$

Usually ships in 3-6 days

0

63

Exmark 114-1925

BUMPER-RUBBER

$25.99

$

In Stock, Qty 20+

0

64

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0
