LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 406294345 - 408644345) (Rev A) (2020) Engine and Air Cleaner Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

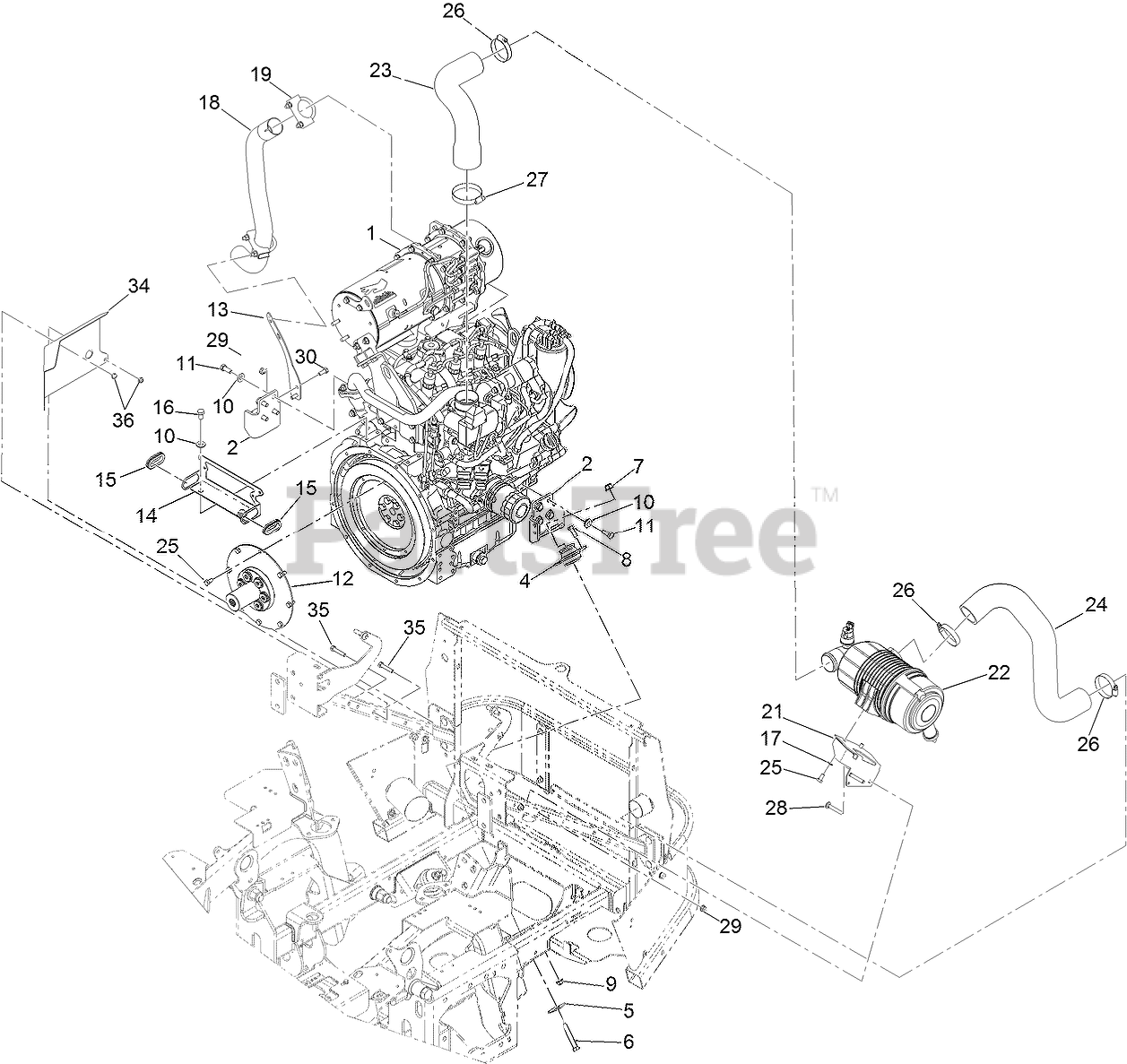

Engine and Air Cleaner Assembly Parts Diagram

  • Title

1

Exmark 138-6927

ENGINE-YANMAR, 3TNV88C-DT

$19057.99

$

Usually ships in 3-6 days

0

2

Exmark 120-9180-03

MOUNT-MOTOR, UPPER

$52.99

$

Usually ships in 3-6 days

0

4

Exmark 130-2486

MOUNT

$37.99

$

Usually ships in 3-6 days

0

5

Exmark 87-5100

WASHER-SNUBBING

$4.49

$

Usually ships in 3-6 days

0

6

Exmark 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

7

Exmark 114-8417

NUT-HF, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

12

Exmark 120-9131

COUPLING-FLYWHEEL

$607.99

$

Usually ships in 3-6 days

0

13

Exmark 126-8587-03

BRACKET-MOUNT

$17.99

$

Usually ships in 3-6 days

0

14

Exmark 126-7602-03

BRACKET-GUIDE

$35.99

$

Usually ships in 3-6 days

0

15

Exmark 240-7

GROMMET-RUBBER

$17.99

$

Usually ships in 3-6 days

0

16

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 126-7652

TUBE-EXHAUST

$81.99

$

Usually ships in 3-6 days

0

19

Exmark 18-2130

CLAMP

$36.99

$

Usually ships in 3-6 days

0

21

Exmark 126-8730-03

BRACKET-CLEANER, AIR

$43.99

$

Usually ships in 3-6 days

0

22

Exmark 126-7646

AIR CLEANER ASM
(Superseded to 142-3554)

$192.99

$

In Stock, Qty 6

0

23

Exmark 120-9199

HOSE-AIR

$54.99

$

Usually ships in 3-6 days

0

24

Exmark 120-9177

HOSE-AIR

$76.99

$

Usually ships in 3-6 days

0

25

Exmark 99-5132

BOLT

$16.99

$

In Stock, only 2 left!

0

26

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

27

Exmark 2412-125

CLAMP-HOSE

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Exmark 135-3946-03

DEFLECTOR-AIR

$22.99

$

Usually ships in 3-6 days

0

35

Exmark 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

36

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0
