LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 411294212 - 413950473) (Rev A) (2022) Fuel Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

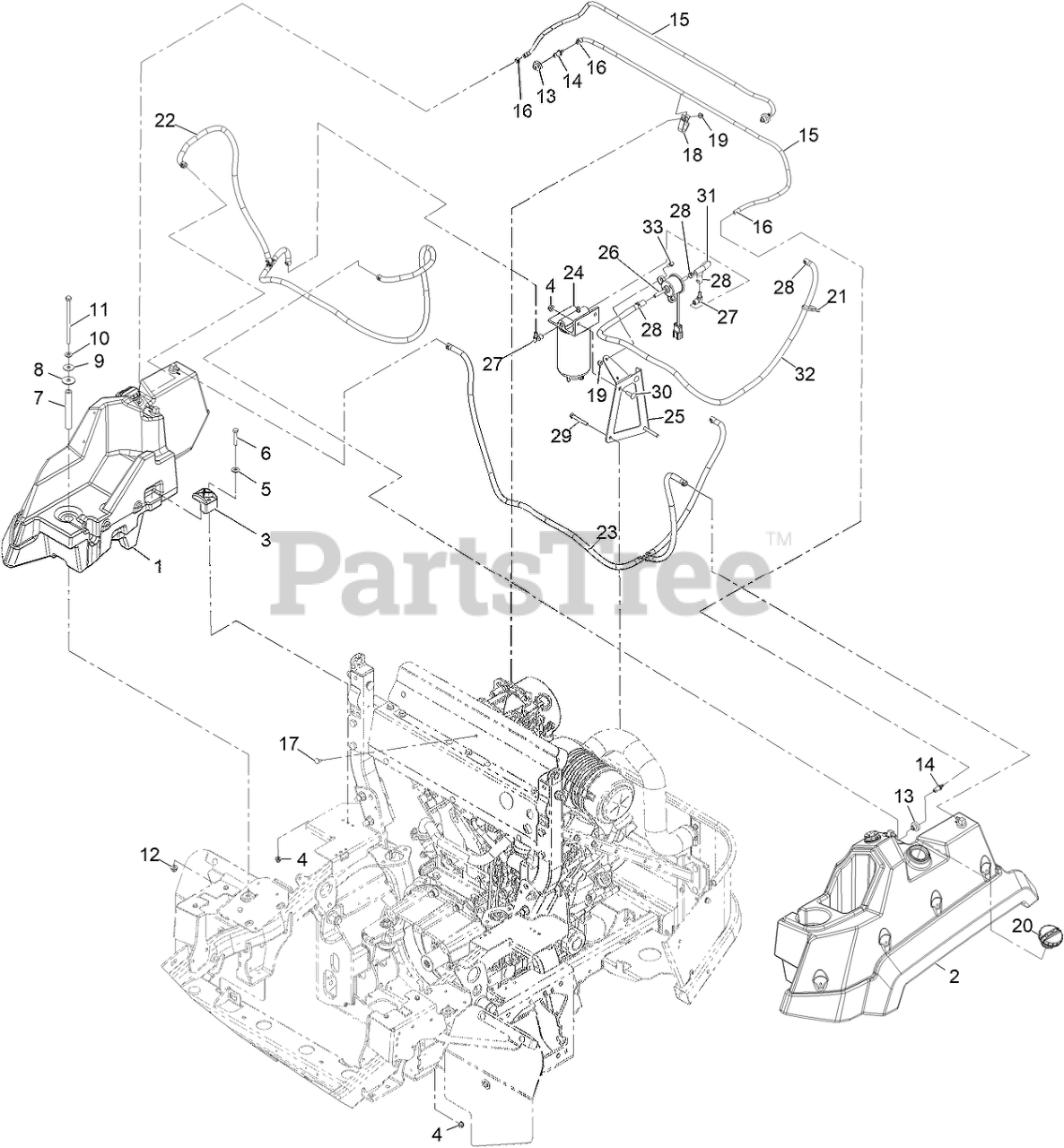

Fuel Assembly Parts Diagram

  • Title

1

Exmark 126-8651

RH FUEL TANK ASM
(Superseded to 142-8638)

$448.99

$

Usually ships in 3-6 days

0

2

Exmark 126-8652

LH FUEL TANK ASM
(Superseded to 142-8637)

$

$

Not available

3

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-21

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

7

Exmark 126-8335

TUBE-SPACER

$17.99

$

Usually ships in 3-6 days

0

8

Exmark 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 6

0

9

Exmark 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 17

0

10

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 323-22

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

14

Exmark 116-4630

FITTING-ORIFICE, STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 117-6395

HOSE-VENT, TANK

$21.99

$

Usually ships in 3-6 days

0

16

Exmark 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

17

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Exmark 92-5753

CLAMP-HOSE

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 135-2715

CAP-FUEL, DIESEL

$23.99

$

In Stock, Qty 7

0

21

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

22

Exmark 135-0512

FUEL SUCTION LINE ASM

$80.99

$

Usually ships in 3-6 days

0

23

Exmark 135-0513

FUEL RETURN LINE ASM

$80.99

$

Usually ships in 3-6 days

0

24

Exmark 126-8294

FILTER-WATER/FUEL SEPERATOR

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 126-8795-03

BRACKET-FILTER, FUEL

$36.99

$

Usually ships in 3-6 days

0

26

Exmark 121-5613

PUMP-FUEL, ELECTRIC

$358.99

$

Usually ships in 3-6 days

0

27

Exmark 353-781

FITTING-HYD, 90

$30.99

$

Usually ships in 3-6 days

0

28

Exmark 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

29

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 20+

0

30

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

31

Exmark 108-3280

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 110-7503

HOSE-FUEL

$57.99

$

Usually ships in 3-6 days

0

33

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+
