LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 411294212 - 413950473) (Rev B) (2022) Deck Lift Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

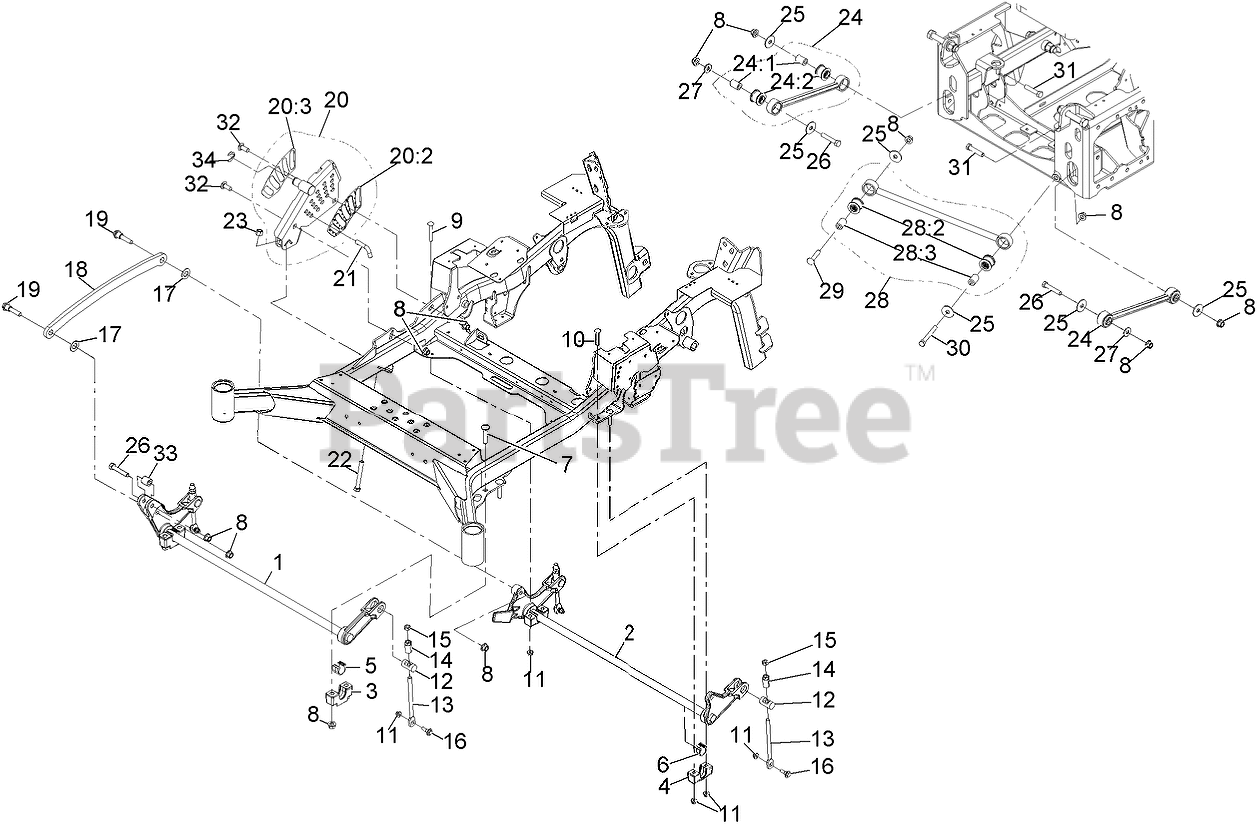

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 135-1216-03

DECKLIFT-FRONT

$391.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2645-03

LIFT-DECK, REAR

$391.99

$

Usually ships in 3-6 days

0

3

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 10

0

4

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$14.99

$

In Stock, Qty 18

0

5

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

0

6

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

0

7

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

10

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, only 3 left!

0

13

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 7

0

14

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 7

0

15

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 9

0

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

17

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

18

Exmark 116-0797-03

LINK-LIFT, DECK

$133.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

0

20

Exmark 126-7866

HOC ASM

$302.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-9275

DECAL-HEIGHT OF CUT

$14.99

$

Usually ships in 3-6 days

0

20:3

Exmark 135-1432

DECAL-HEIGHT OF CUT, OUTER

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 20+

0

22

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 142-4003

DECK STRUT ASM 85A

$41.99

$

Usually ships in 3-6 days

0

24:1

Exmark 109-5010

SPACER

$6.49

$

In Stock, Qty 20+

0

24:2

Exmark 135-2466

BUSHING-RUBBER

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 19

0

26

Exmark 325-11

SCREW-HH

$2.99

$

In Stock, Qty 12

0

27

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

28

Exmark 109-5013

PANHARD ROD ASM

$137.99

$

In Stock, Qty 6

0

28:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 20+

0

28:3

Exmark 109-5010

SPACER

$6.49

$

In Stock, Qty 20+

0

29

Exmark 3233-34

SCREW-CARR

$9.49

$

Usually ships in 3-6 days

0

30

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 11

0

31

Exmark 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

32

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 135-1215

SPACER-PIVOT

$14.99

$

Usually ships in 3-6 days

0

34

Exmark 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0
