LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 413950474 - 416150474) (Rev C) (2023) Electrical Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

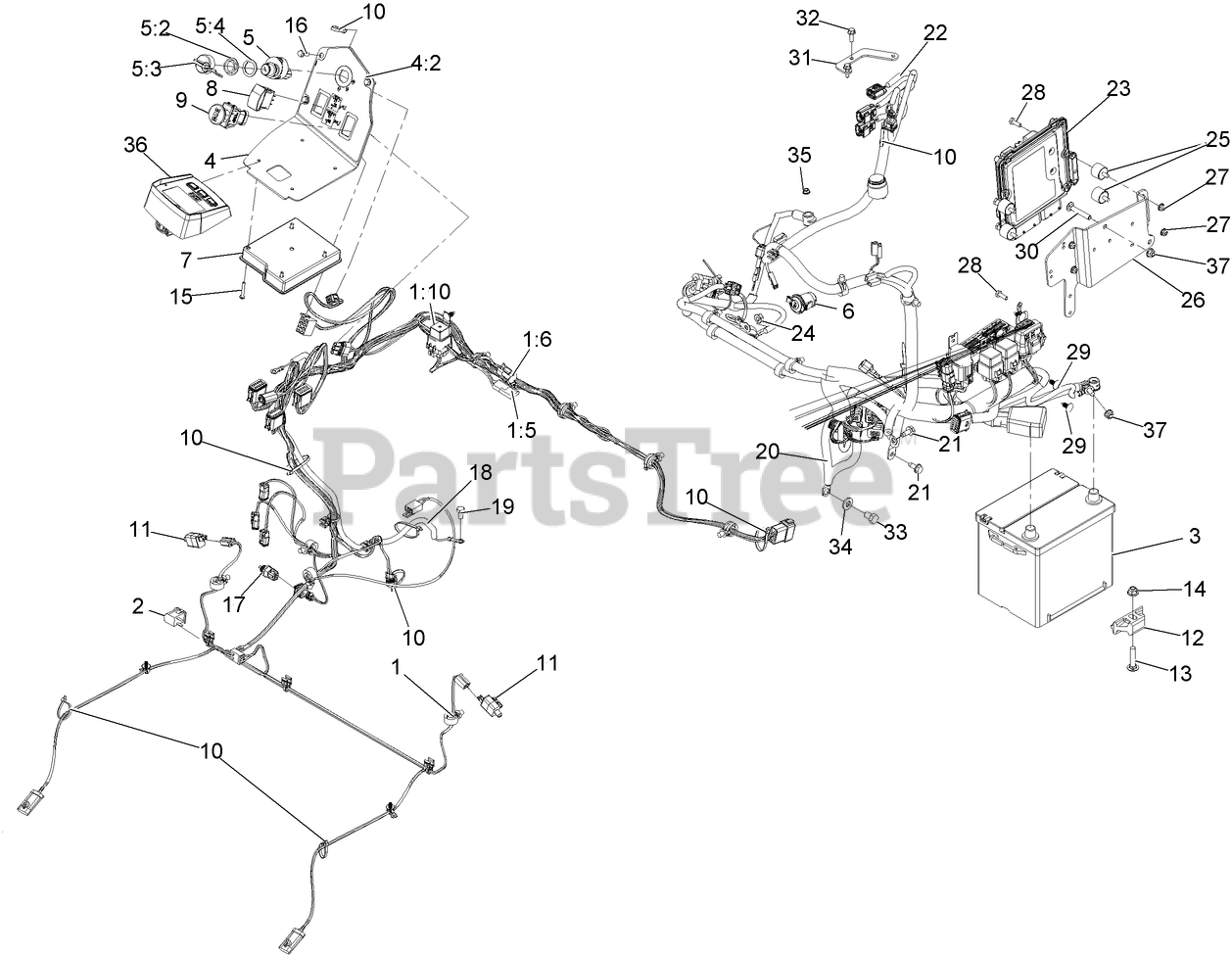

Electrical Assembly Parts Diagram

  • Title

1

Exmark 146-0540

HARNESS-WIRE, MAIN

$487.99

$

Usually ships in 0 days

0

1:5

Exmark 32180-197

Cap-Plug

$18.99

$

In Stock, only 1 left!

0

1:6

Exmark 32180-156

CAP-PLUG, 6 WAY

$11.99

$

Usually ships in 3-6 days

0

1:10

Exmark 99-7430

RELAY-MINI

$26.99

$

In Stock, Qty 5

0

2

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

3

Exmark 106-5187

Battery-Dry

$

$

Not available

4

Exmark 146-0811

CONSOLE ASM

$120.99

$

Usually ships in 0 days

0

4:2

Exmark 135-0398

DECAL-CONSOLE

$20.99

$

Usually ships in 3-6 days

0

5

Exmark 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 15

0

5:2

Exmark 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 2 left!

0

5:3

Exmark 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 14

0

5:4

Exmark 108-8659

WASHER-BACKUP

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 126-6499

PORT-POWER, 12V

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 135-3427

Module-Mcu

$411.99

$

Usually ships in 3-6 days

0

8

Exmark 100-1535

SWITCH

$96.99

$

In Stock, only 3 left!

0

9

Exmark 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 9

0

10

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

11

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

12

Exmark 138-6335

RETAINER-BATTERY

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 9

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

16

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

17

Exmark 126-7698

SENSOR-TEMPERATURE

$

$

Not available

18

Exmark 135-3998

HARNESS-WIRE, JUMPER

$33.99

$

Usually ships in 3-6 days

0

19

Exmark 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

Usually ships in 3-6 days

0

20

Exmark 126-7406

CABLE-BATTERY

$182.99

$

Usually ships in 3-6 days

0

21

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 15

0

22

Exmark 142-7958

Harness-Wire, Yanmar

$976.99

$

Usually ships in 3-6 days

0

23

Exmark 121-5592

Electronic Control Unit

$3837.99

$

Usually ships in 3-6 days

0

24

Exmark 127-2371

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

25

Exmark 125-2674

MOUNT-CYLINDRICAL

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 126-8706-03

MOUNT-CONTROL UNIT, ENGIN

$49.99

$

Usually ships in 3-6 days

0

27

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3230-6

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

31

Exmark 135-0071

BRACKET-WIRING, ENGINE

$12.99

$

Usually ships in 3-6 days

0

32

Exmark 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

33

Exmark 33115-016

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

36

Exmark 126-4232

MODULE, LDU

$498.99

$

Usually ships in 3-6 days

0

37

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0
