LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 417930746 & Above) (Rev A) (2025) Center Folding Deck Hydraulic Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

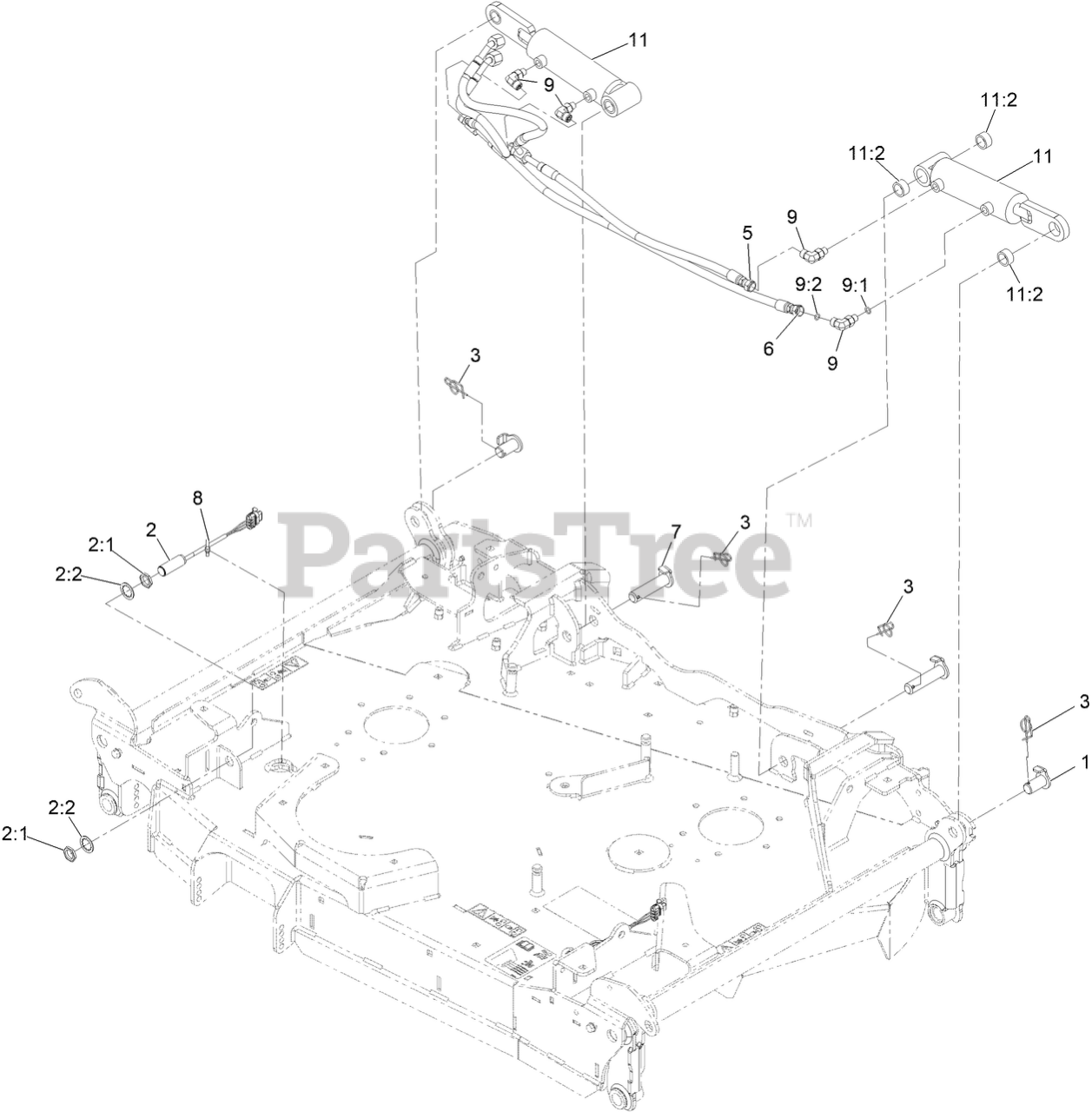

Center Folding Deck Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 142-3999

PIN-CYLINDER

$36.99

$

In Stock, Qty 5

0

2

Exmark 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 6

0

2:1

Exmark 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

2:2

Exmark 117-3208

WASHER-LOCK, INTERNAL TOO

$11.99

$

In Stock, only 4 left!

0

3

Exmark 142-4002

PIN-LOCKING COTTER

$2.99

$

In Stock, Qty 5

0

5

Exmark 135-1760

HOSE ASM

$161.99

$

In Stock, only 1 left!

0

6

Exmark 135-1761

HOSE ASM

$161.99

$

Usually ships in 3-6 days

0

7

Exmark 142-5437

ASM-CYL PIN BASE

$36.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

9

Exmark 340-132

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

9:1

Exmark 237-78

O-RING

$4.49

$

In Stock, Qty 13

0

9:2

Exmark 237-21

O-RING

$0.99

$

In Stock, Qty 6

0

11

Exmark 142-6609

CYL-Deck Fold

$711.99

$

In Stock, only 2 left!

0

11:2

Exmark 142-5808

BUSHING-0.75X1.00X0.50 LONG

$21.99

$

In Stock, Qty 14

0
