LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 417930746 & Above) (Rev A) (2025) Crankshaft and Piston Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

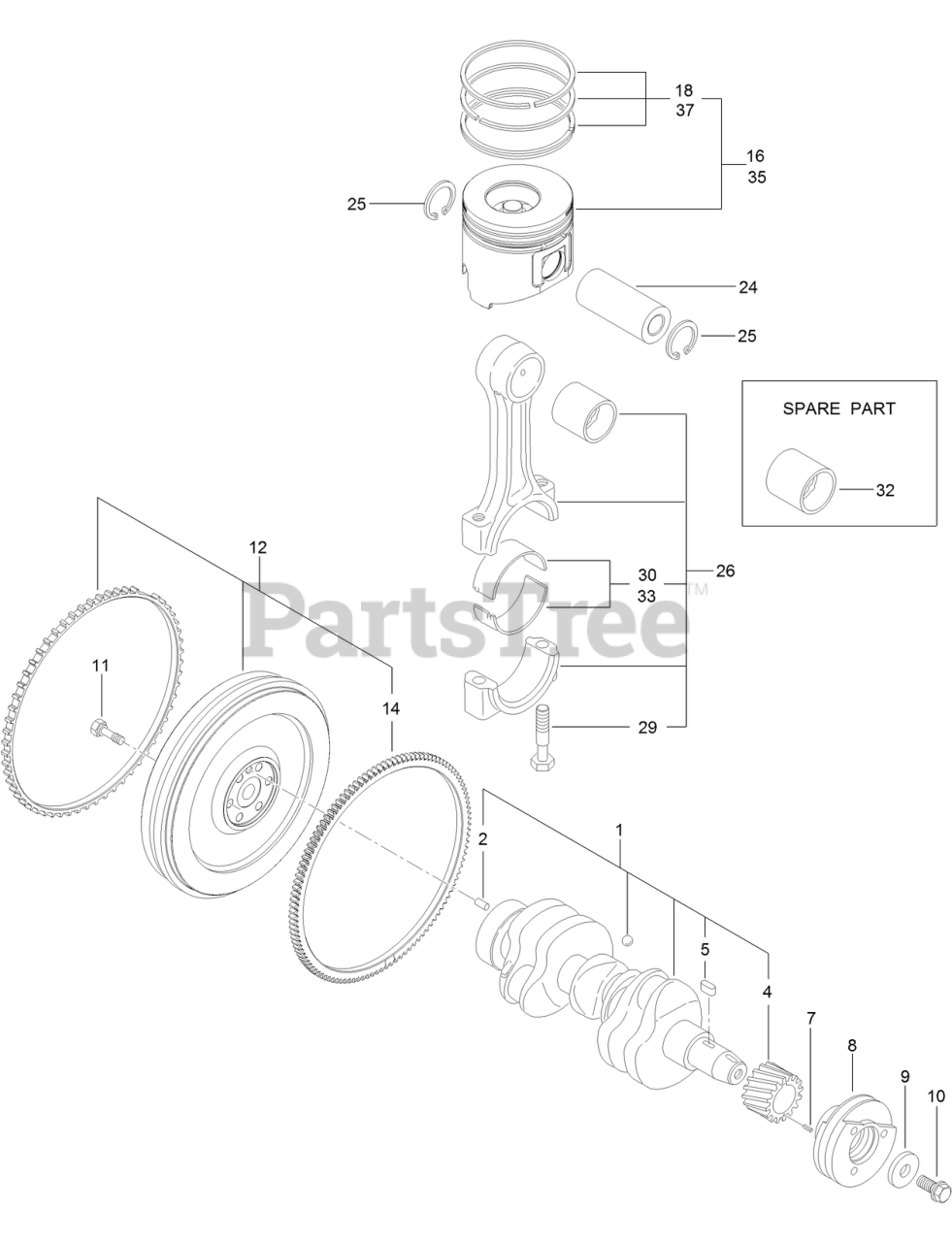

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Exmark 127-3800

CRANKSHAFT ASM

$2510.99

$

Usually ships in 3-6 days

0

2

Exmark 125-6995

PIN

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 125-6937

GEAR

$234.99

$

Usually ships in 3-6 days

0

5

Exmark 125-7185

KEY

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 125-7182

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 127-3801

PULLEY-V

$375.99

$

Usually ships in 3-6 days

0

9

Exmark 125-7109

WASHER

$22.99

$

Usually ships in 3-6 days

0

10

Exmark 125-6956

BOLT

$45.99

$

Usually ships in 3-6 days

0

11

Exmark 125-6951

BOLT

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 127-4761

FLYWHEEL ASM

$2150.99

$

Usually ships in 3-6 days

0

14

Exmark 127-4703

GEAR

$241.99

$

Usually ships in 3-6 days

0

16

Exmark 127-4766

PISTON ASM

$565.99

$

In Stock, only 1 left!

0

18

Exmark 127-4751

PISTON RING ASM

$133.99

$

In Stock, only 1 left!

0

24

Exmark 125-7030

PIN

$49.99

$

In Stock, only 1 left!

0

25

Exmark 125-7180

RING

$2.99

$

In Stock, only 2 left!

0

26

Exmark 125-7242

CONNECTING ROD ASM

$648.99

$

In Stock, only 1 left!

0

29

Exmark 125-6955

BOLT

$23.99

$

Usually ships in 3-6 days

0

30

Exmark 125-7018

PIN-CRANK

$23.99

$

Usually ships in 3-6 days

0

32

Exmark 125-6997

PIN-PISTON

$24.99

$

Usually ships in 3-6 days

0

33

Exmark 125-7019

PIN-CRANK (.25)

$23.99

$

Usually ships in 3-6 days

0

35

Exmark 127-4767

PISTON ASM (0.25 O S)

$689.99

$

Usually ships in 3-6 days

0

37

Exmark 127-4752

RING SET (0.25 O S)

$101.99

$

Usually ships in 3-6 days

0
