LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 417930746 & Above) (Rev A) (2025) Gearbox and Mount Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

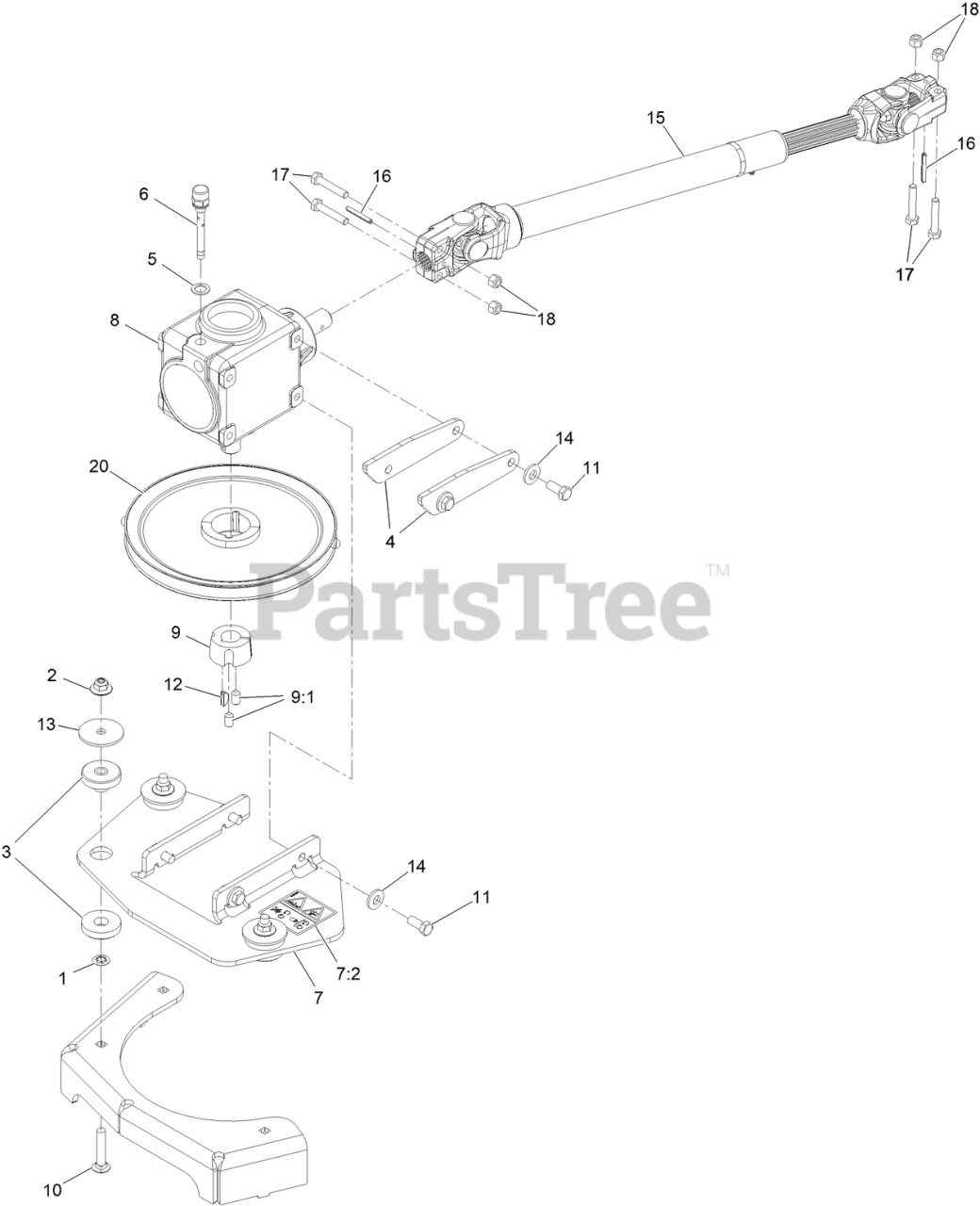

Gearbox and Mount Assembly Parts Diagram

  • Title

1

Exmark 107-3154

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 126-3074

MOUNT-ISO

$19.99

$

In Stock, only 3 left!

0

4

Exmark 126-3544

STOP-GEARBOX

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 130-4899

WASHER

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 130-8661

PLUG-BREATHER

$42.99

$

In Stock, only 2 left!

0

7

Exmark 135-0874

MOUNT-GEARBOX

$117.99

$

Usually ships in 3-6 days

0

7:2

Exmark 135-0679

DECAL-HAZARD, ENTANGLEMENT

$7.49

$

Usually ships in 3-6 days

0

8

Exmark 142-8061

Gearbox ASM

$943.99

$

In Stock, only 1 left!

0

9

Exmark 23-1640

BUSHING-TAPERLOCK

$93.99

$

Usually ships in 3-6 days

0

9:1

Exmark 3247-4

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

11

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 16

0

13

Exmark 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

14

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

15

Exmark 110-3575

DRIVESHAFT ASM

$996.99

$

In Stock, only 1 left!

0

16

Exmark 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 11

0

17

Exmark 322-9

SCREW-HH

$3.99

$

In Stock, Qty 15

0

18

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20
