LZS88CDYM96RW0 - Exmark 96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C (SN: 417930746 & Above) (Rev A) (2025) Transmission Assembly (cont.) Gear Case and Clutch Assembly Parts Diagram

96" Lazer Z Diesel Zero-Turn Mower, Yanmar 3TNV88C

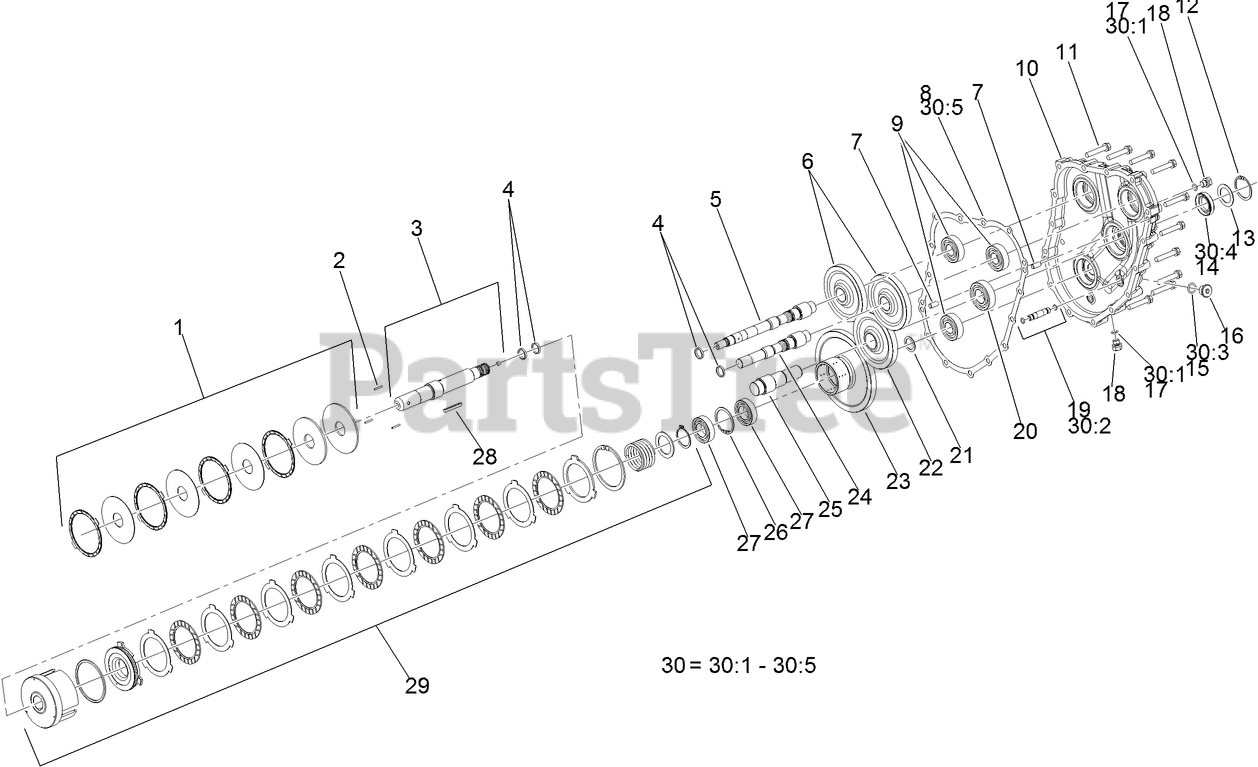

Transmission Assembly (cont.) Gear Case and Clutch Assembly Parts Diagram

  • Title

1

Exmark 107-0839

PTO BRAKE ASM

$258.99

$

In Stock, only 2 left!

0

2

Exmark 107-0837

ROD-PUSH

$4.49

$

In Stock, only 3 left!

0

3

Exmark 107-0833

PTO SHAFT ASM

$613.99

$

In Stock, only 2 left!

0

4

Exmark 107-0825

RING-SEAL

$27.99

$

In Stock, Qty 6

0

5

Exmark 107-0827

SHAFT-PUMP

$75.99

$

Usually ships in 3-6 days

0

6

Exmark 107-0823

GEAR-PUMP

$278.99

$

Usually ships in 3-6 days

0

7

Exmark 92-0765

PIN-PARALLEL

$4.49

$

Usually ships in 3-6 days

0

8

Exmark 107-0816

GASKET-HOUSING, GEAR

$79.99

$

In Stock, only 3 left!

0

9

Exmark 107-0826

BEARING

$37.99

$

Usually ships in 3-6 days

0

10

Exmark 120-5152

HOUSING-CASE, GEAR

$1957.99

$

Usually ships in 3-6 days

0

11

Exmark 107-0863

BOLT

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 92-0757

RING-SNAP

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 107-0813

SPACER

$9.99

$

Usually ships in 3-6 days

0

14

Exmark 107-0814

SEAL

$56.99

$

In Stock, only 2 left!

0

15

Exmark 104-3298

Packing

$

$

Not available

16

Exmark 107-0861

PLUG-NPTF

$13.99

$

Usually ships in 3-6 days

0

17

Exmark 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

18

Exmark 107-0857

PLUG

$37.99

$

Usually ships in 3-6 days

0

19

Exmark 107-0811

PIPE

$159.99

$

Usually ships in 3-6 days

0

20

Exmark 107-0821

BEARING

$45.99

$

Usually ships in 3-6 days

0

21

Exmark 107-0836

SPACER

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 107-0820

GEAR-INPUT

$278.99

$

Usually ships in 3-6 days

0

23

Exmark 107-0834

GEAR-PTO

$686.99

$

Usually ships in 3-6 days

0

24

Exmark 107-0822

SHAFT-PUMP

$184.99

$

Usually ships in 3-6 days

0

25

Exmark 107-0819

SHAFT-INPUT

$171.99

$

Usually ships in 3-6 days

0

26

Exmark 92-0758

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 107-0838

BEARING

$71.99

$

Usually ships in 3-6 days

0

28

Exmark 107-0866

KEY

$6.49

$

In Stock, only 2 left!

0

29

Exmark 107-0835

CLUTCH CYLINDER ASM

$966.99

$

In Stock, only 2 left!

0

30

Exmark 107-0854

GEAR HOUSING SEAL KIT

$94.99

$

Usually ships in 3-6 days

0

30:1

Exmark 107-0817

O RING-PLUG

$3.99

$

Usually ships in 3-6 days

0

30:2

O-Ring

Note: Not serviced separately

$

$

Not available

30:3

Exmark 104-3298

Packing

$

$

Not available

30:4

Exmark 107-0814

SEAL

$56.99

$

In Stock, only 2 left!

0

30:5

Exmark 107-0816

GASKET-HOUSING, GEAR

$79.99

$

In Stock, only 3 left!

0
