LZS902DKU725A1 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

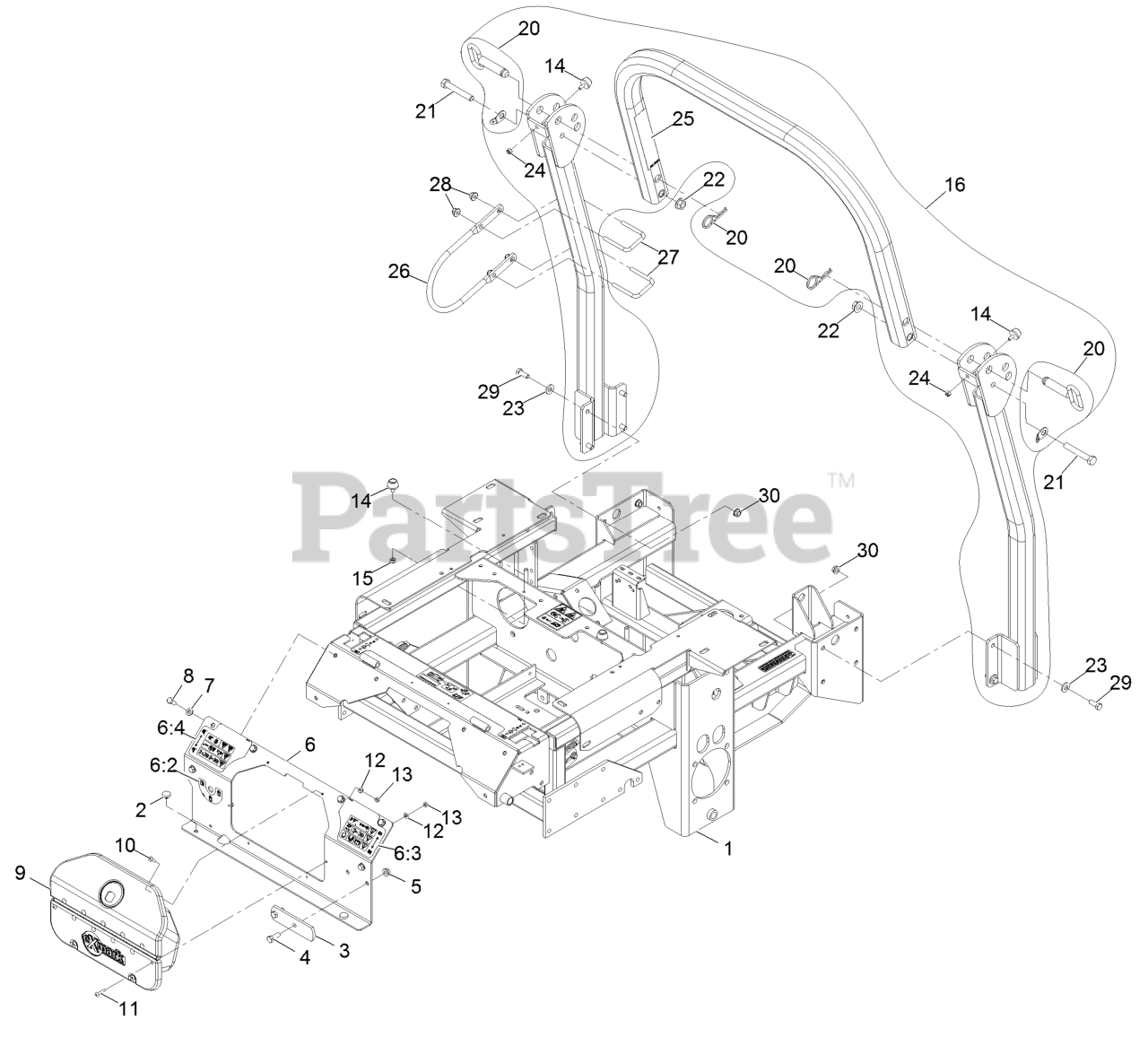

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 109-3984

ASM,KDXS ENGINE DECK W/DE

$7203.99

$

Usually ships in 3-6 days

0

2

Exmark 1-513658

BUMPER

$7.49

$

In Stock, Qty 20+

0

3

Exmark 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Exmark 109-2075

ASM, CONSOLE W/DECALS

$283.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-4848

Decal-Fuel

$

$

Currently unavailable

6:3

Exmark 126-4755

Decal-Console LH

$

$

Currently unavailable

6:4

Exmark 126-4756

Decal-Console RH

$

$

Currently unavailable

7

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 103-3666

ASM,CUBBY

$202.99

$

Usually ships in 3-6 days

0

10

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

11

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

12

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 20+

0

15

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Exmark 109-0060

KIT, 06 XS ROPS

Note: Includes seat belt assembly

$568.99

$

Usually ships in 3-6 days

0

20

Exmark 103-4553

PIN-FOLD, ROPS
(Superseded to 161-4477)

$37.99

$

Usually ships in 3-6 days

0

21

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

23

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Exmark 3296-73

NUT-LOCK, NI

$5.99

$

In Stock, Qty 20+

0

25

Exmark 107-3069

DECAL-WARNING

$27.99

$

Usually ships in 3-6 days

0

26

Exmark 103-7599-03

GUARD

$

$

Not available

27

Exmark 109-2394

U-BOLT

$15.99

$

Usually ships in 3-6 days

0

28

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
