LZS902DKU725A1 - Exmark 72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel (SN: 400000000 - 402082299) (2017) Complete Deck Assembly Parts Diagram

72" Lazer Z DS-Series Zero-Turn Mower, Kubota Diesel

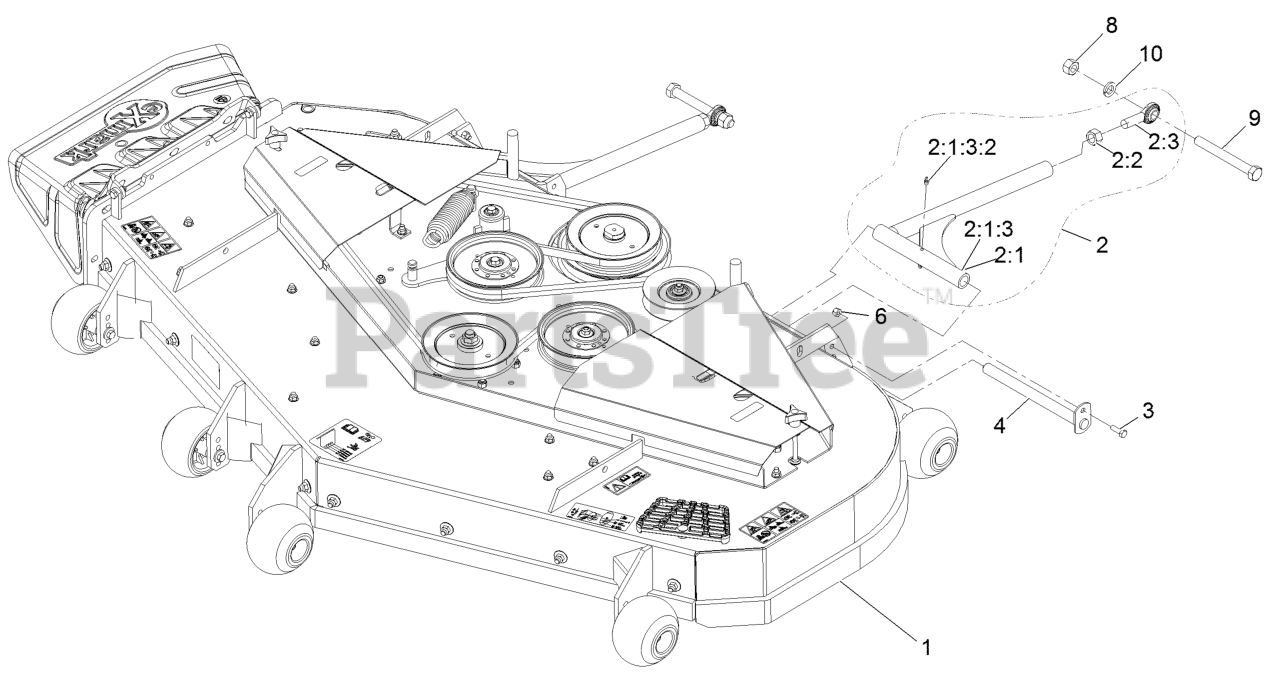

Complete Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9149

ASM-Deck Complete 725

$

$

Currently unavailable

2

Exmark 103-8544

ASM,DECK STRUT XS 72

$354.99

$

Usually ships in 3-6 days

0

2:1

Exmark 109-1183

WLD,DECK STRUT

$359.99

$

Usually ships in 3-6 days

0

2:1:3

Tube And Zerk ASM

Note: Not serviced separately

$

$

Not available

2:1:3:2

Exmark 109-1380

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 16

0

2:2

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

2:3

Exmark 1-633029

BALLJOINT-SPHERICAL

$64.99

$

In Stock, Qty 20+

0

3

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 20+

0

6

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

9

Exmark 327-28

SCREW-HH

$18.99

$

In Stock, only 3 left!

0

10

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
