LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018)

Ultra Vac Triple Bagger for Lazer Z Mower

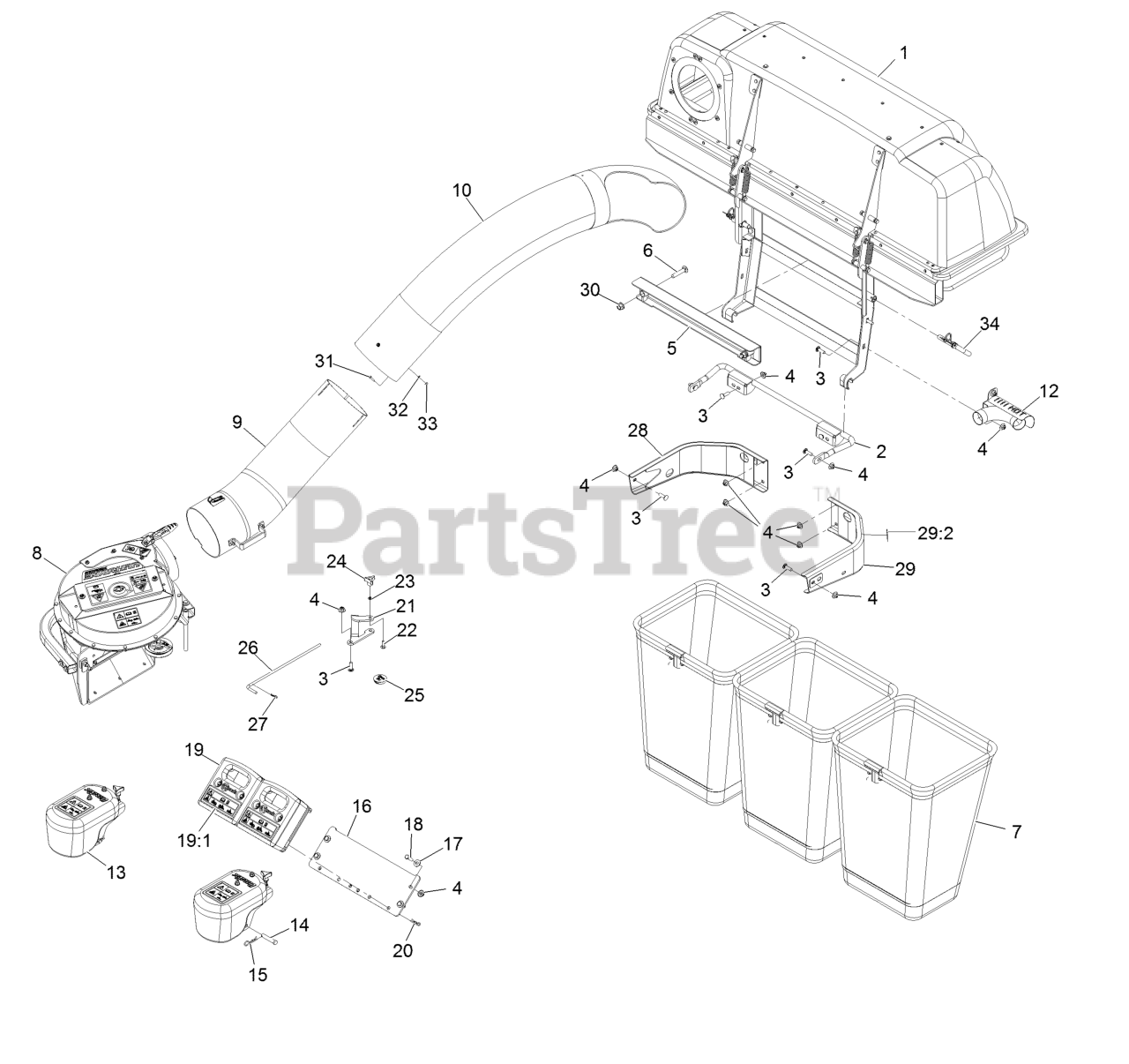

LZUV3B - Exmark Ultra Vac Triple Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) > Parts Diagrams (15) > LZUV3B Assembly

  • Title

1

ASM,Hood Uv 3 Bag

Part#

Not available

109-9248

2

Mount-Bagger, Lower

Part# 109-9248

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.49

3231-28

3

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

109-6658

4

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

116-0473-03

5

Mount-Bagger, Upper

Part# 116-0473-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $173.74

3233-34

6

Bolt-Carriage 1/2-13 X 2 1/2

Part# 3233-34

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.84

116-0754

7

Bag And Frame ASM

Part# 116-0754

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $144.82

109-9836

8

ASM, Blower Large - Svc Only

Part# 109-9836

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1471.60

109-1973

9

Lower Tube ASM

Part# 109-1973

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $245.80

109-1968

10

Tube-Upper

Part# 109-1968

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $250.82

116-2804

12

Exhaust Diverter ASM

Part# 116-2804

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $148.05

109-8461

13

ASM,Caster Weight

Part# 109-8461

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $487.08

92-2743

14

Pin-Clevis

Part# 92-2743

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.42

1-806005

15

Hairpin-Cotter

Part# 1-806005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.51

103-6368-01

16

Plate, Weight Mounting

Part# 103-6368-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $56.69

3256-4

17

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

323-7

18

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-6363

19

Asm, Weight (103-6364-01) W/Decals

Part# 103-6363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $253.84

126-4661

19:1

Decal-Warning Weight

Part# 126-4661

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

9335124

20

Hairpin-Cotter

Part# 9335124

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

109-9463-03

21

Bracket,Belt Cover

Part# 109-9463-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.58

3230-2

22

Bolt-Carriage 5/16-18 X 1

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.15

109-5667

23

Ring-Bolt Retaining

Part# 109-5667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.55

1-323385

24

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.92

103-1279

25

Plug

Part# 103-1279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

109-3458

26

Pin, Chute Pivot

Part# 109-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

1-806003

27

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

116-0057-03

28

Bumper-RH

Part# 116-0057-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $155.39

116-0180

29

LH Bumper ASM

Part# 116-0180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $193.31

106-5517

29:2

Decal-Warning

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

99-5107

30

Nut-Lock 1/2-13

Part# 99-5107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

32105-13

31

Screw-HWH #10-24 X 3/4

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48

3256-14

32

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3296-2

33

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

116-0458

34

Pin-Mount, Bagger

Part# 116-0458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.16
