LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016)

Ultra Vac QDS Bagger for Lazer Z Mower

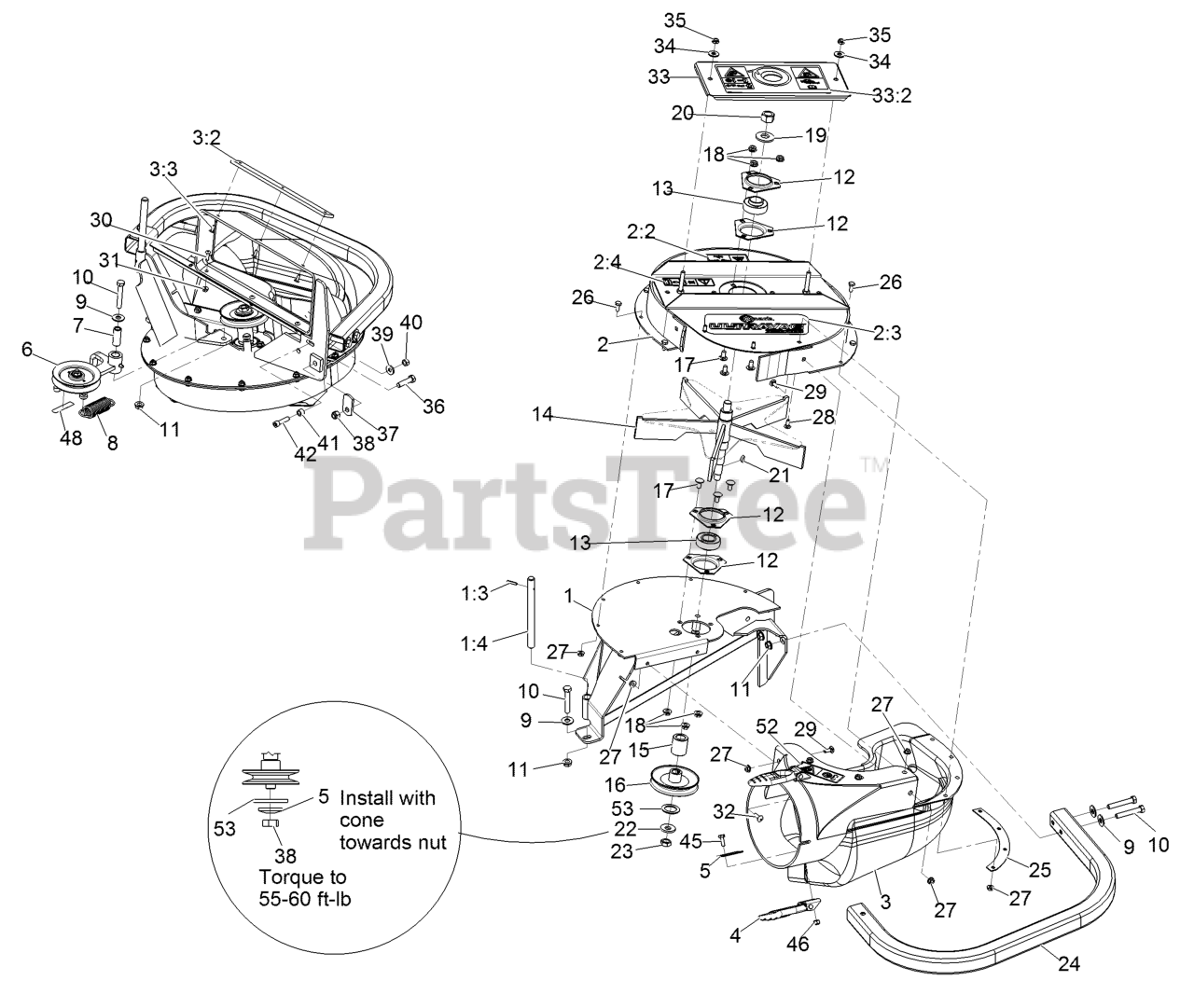

LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016) > Parts Diagrams (13) > Blower Assembly No. 109-9836

  • Title
109-8885-03

1

Wld,Frame Lg Blower

Part# 109-8885-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $472.92

1-806323

1:3

Rollpin 3/16 X 7/8

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

1-353050

1:4

Shaft-Catcher, Grass

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.96

116-4816

2

ASM-Upper Housing Large

Part# 116-4816

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $402.81

126-4662

2:2

Decal-Warning Traction

Part# 126-4662

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.81

126-7210

2:3

Decal-Ultravac X-Series

Part# 126-7210

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.15

112-9028

2:4

Decal-Missing, Cover

Part# 112-9028

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.09

109-2954

3

Asm, Blower Chute

Part# 109-2954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $260.53

103-4751-03

3:2

Plate, Reinforcement

Part# 103-4751-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.45

114439

3:3

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.63

103-2898

4

Latch-Rubber

Part# 103-2898

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.68

103-3093

5

Plate-Backing

Part# 103-3093

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

ASM, Idler

6

ASM, Idler

Part# ASM, Idler

Not available

1-603044

7

Bushing

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

1-653331

8

Spring

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.45

3256-4

9

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

323-11

10

Screw-HH 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

3290-357

11

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-513013

12

Housing-Flange

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

1-653346

13

Bearing

Part# 1-653346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $51.37

103-0455

14

Impeller

Part# 103-0455

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $313.23

103-0460

15

Spacer

Part# 103-0460

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.16

103-0456

16

Sheave

Part# 103-0456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $40.36

3230-18

17

Bolt-Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

32128-20

18

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-513208

19

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.24

3219-6

20

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.28

3257-32

21

Key-Woodruff 3/16 X 5/8

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.10

1-513435

22

Washer-Spring Disc 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.67

3220-5

23

Nut-Jam 1/2-20

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.31

103-0458-01

24

Bumper

Part# 103-0458-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.87

103-0461-03

25

Plate-Backing, Blower

Part# 103-0461-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.07

321-3

26

Screw-HH 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

32128-33

27

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

3229-11

28

Bolt-Carriage 1/4-20 X 5/8

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

3229-1

29

Bolt-Carriage 1/4-20 X 3/4

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.87

1-803075

30

Screw-Truss Head #10-24 X 3/4

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.87

3290-148

31

Nut-Whizlock #10-24

Part# 3290-148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.60

1-803076

32

Screw-PPH 1/4-20 X 3/4

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

103-3583

33

Cover, Bearing W/Decal

Part# 103-3583

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $72.15

103-3584-03

33

Cover, Bearing With Decal

Part# 103-3584-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.76

109-5890

33:2

Decal, Warning

Part# 109-5890

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

3256-3

34

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

3296-47

35

Nut-Nyloc 5/16-18 Thin

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.49

323-8

36

Screw-HH 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.66

1-353054

37

Latch-Catcher, Grass

Part# 1-353054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.30

3296-39

38

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-303334

39

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

3217-6

40

Nut-Hex 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

103-0126

41

Bushing

Part# 103-0126

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

3274-18

42

Screw-Sh 5/16-18 X 1 1/4

Part# 3274-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.08

321-4

45

Screw-HH 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

3296-42

46

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.38

126-4659

48

Decal-Warning Hot Pulley

Part# 126-4659

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.81

126-4853

52

Decal-Blower-Impeller Hazard

Part# 126-4853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.82

1-523157

53

Washer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06
