LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016)

Ultra Vac QDS Bagger for Lazer Z Mower

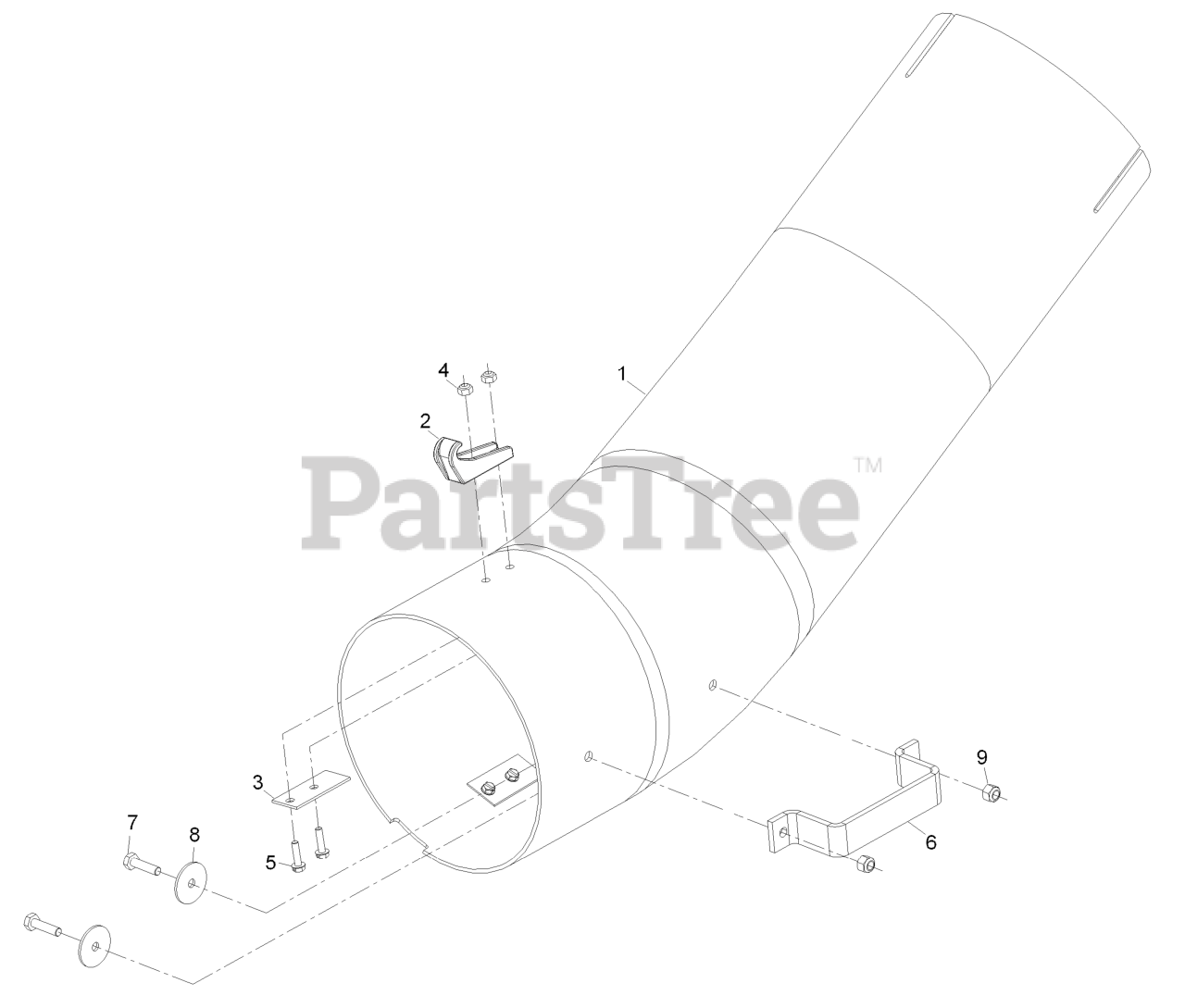

LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 316000000 - 399999999) (2016) > Parts Diagrams (13) > Lower Tube Assembly No. 109-1973

  • Title
1-353005-03

1

Handle

Part# 1-353005-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.47

103-2897

2

Latch-Catch

Part# 103-2897

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-3079

3

Plate-Backing

Part# 103-3079

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.10

109-1974

4

Tube, Lower

Part# 109-1974

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $166.83

321-6

5

Screw-HH 1/4-20 X 1

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.44

3256-55

6

Washer

Part# 3256-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.97

3296-2

7

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

3296-42

8

Nut-Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.38

32105-13

9

Screw-HWH #10-24 X 3/4

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.48
