Exmark LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Hopper Assembly No. 109-6142 Parts Lookup with Diagrams

1

Exmark 109-8709-03

Frame

$2435.99

$

Usually ships in 3-6 days

2

Exmark 103-7827

Panel-Bagger, RH

$175.99

$

Usually ships in 3-6 days

3

Exmark 103-7826

Panel, Bagger LH

$175.99

$

Usually ships in 3-6 days

4

Exmark 103-2404-03

Sheet, Wall

$173.99

$

Usually ships in 3-6 days

5

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

6

Exmark 103-2710

Rear Crossmember ASM

$162.99

$

Usually ships in 3-6 days

6:2

Exmark 32148-6

Insert-Nut

$1.99

$

Usually ships in 3-6 days

7

Exmark 103-2414-03

Support

$55.99

$

Usually ships in 3-6 days

8

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

9

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

10

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

11

Exmark 103-3201

Cap

$3.49

$

Usually ships in 3-6 days

12

Exmark 103-3202

Cap

$1.49

$

In Stock, only 1 left!

13

Exmark 103-2377

Bushing

$8.99

$

In Stock, Qty 5

14

Exmark 103-3331-03

Arm-Hinge, RH

$59.99

$

Usually ships in 3-6 days

15

Exmark 103-3332-03

Arm, Hinge LH

$59.99

$

Usually ships in 3-6 days

16

Exmark 103-2361

Pin-Pivot, Hinge

$19.99

$

In Stock, only 3 left!

18

Exmark 323-9

Screw-HH 3/8-16 X 1 3/4

$1.49

$

In Stock, Qty 20+

19

Exmark 103-2737

Door ASM

$702.99

$

Usually ships in 3-6 days

19:2

Exmark 32148-6

Insert-Nut

$1.99

$

Usually ships in 3-6 days

20

Exmark 103-2360

Seal-Door Hinge

$143.99

$

Usually ships in 3-6 days

22

Exmark 103-2383

Bag And Bottom Panel ASM

$348.99

$

Usually ships in 3-6 days

23

Exmark 3256-2

Washer-1/4 Std

(Superseded to 3256-2) 

$0.99

$

In Stock, Qty 20+

24

Exmark 321-3

Screw-HH 1/4-20 X 5/8

$1.49

$

In Stock, only 3 left!

25

Exmark 32128-33

Nut-Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

26

Exmark 103-3010-03

Strap-Hold Down

$64.99

$

Usually ships in 3-6 days

27

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

28

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

29

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.49

$

In Stock, Qty 20+

30

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

31

Exmark 103-8018

Plug-Dome

$5.49

$

Usually ships in 3-6 days

32

Exmark 103-2409

Half-Block, Bearing

(Superseded to 103-8057) 

$61.99

$

Usually ships in 3-6 days

33

Exmark 103-2412-03

Link-Intermediate

$281.99

$

Usually ships in 3-6 days

34

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

35

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.49

$

In Stock, Qty 20+

36

Exmark 1-633131

Yoke-Linkage, Brake

$15.99

$

In Stock, only 2 left!

37

Exmark 1-808285

Pin-Clevis 3/8 X 1 1/8

$3.49

$

In Stock, Qty 5

38

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

39

Exmark 3219-3

Nut-Hex 3/8-24

$1.99

$

In Stock, Qty 20+

40

Exmark 103-2365

Link-Hinge

$15.99

$

In Stock, only 1 left!

41

Exmark 103-2413

Link-Handle

$13.99

$

In Stock, only 3 left!

42

Exmark 103-3191-03

Latch

$21.99

$

Usually ships in 3-6 days

43

Exmark 103-2399

Pin-Clevis Spring 3/8

$6.49

$

In Stock, Qty 20+

44

Exmark 3272-10

Pin-Cotter 1/8 X 3/4

$1.49

$

In Stock, Qty 20+

45

Exmark 1-633545

Spacer

$2.99

$

In Stock, Qty 20+

46

Exmark 3256-55

Washer

$5.49

$

In Stock, only 2 left!

47

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

48

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

49

Exmark 323-53

Screw-HH 3/8-16 X 1 3/4

$3.49

$

Usually ships in 3-6 days

50

Exmark 109-7301

ASM,Hood Dump

$1032.99

$

Usually ships in 3-6 days

53

Exmark 3256-61

Washer

$2.99

$

In Stock, only 3 left!

54

Exmark 3250-27

Screw-PPH #10-24 X 7/8

$0.99

$

In Stock, Qty 9

55

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

57

Exmark 1-513658

Bumper

$6.49

$

In Stock, Qty 20+

58

Exmark 103-0439

Seal-Tube

$49.99

$

In Stock, only 2 left!

59

Exmark 103-0378

Clamp-Seal

$33.99

$

In Stock, only 1 left!

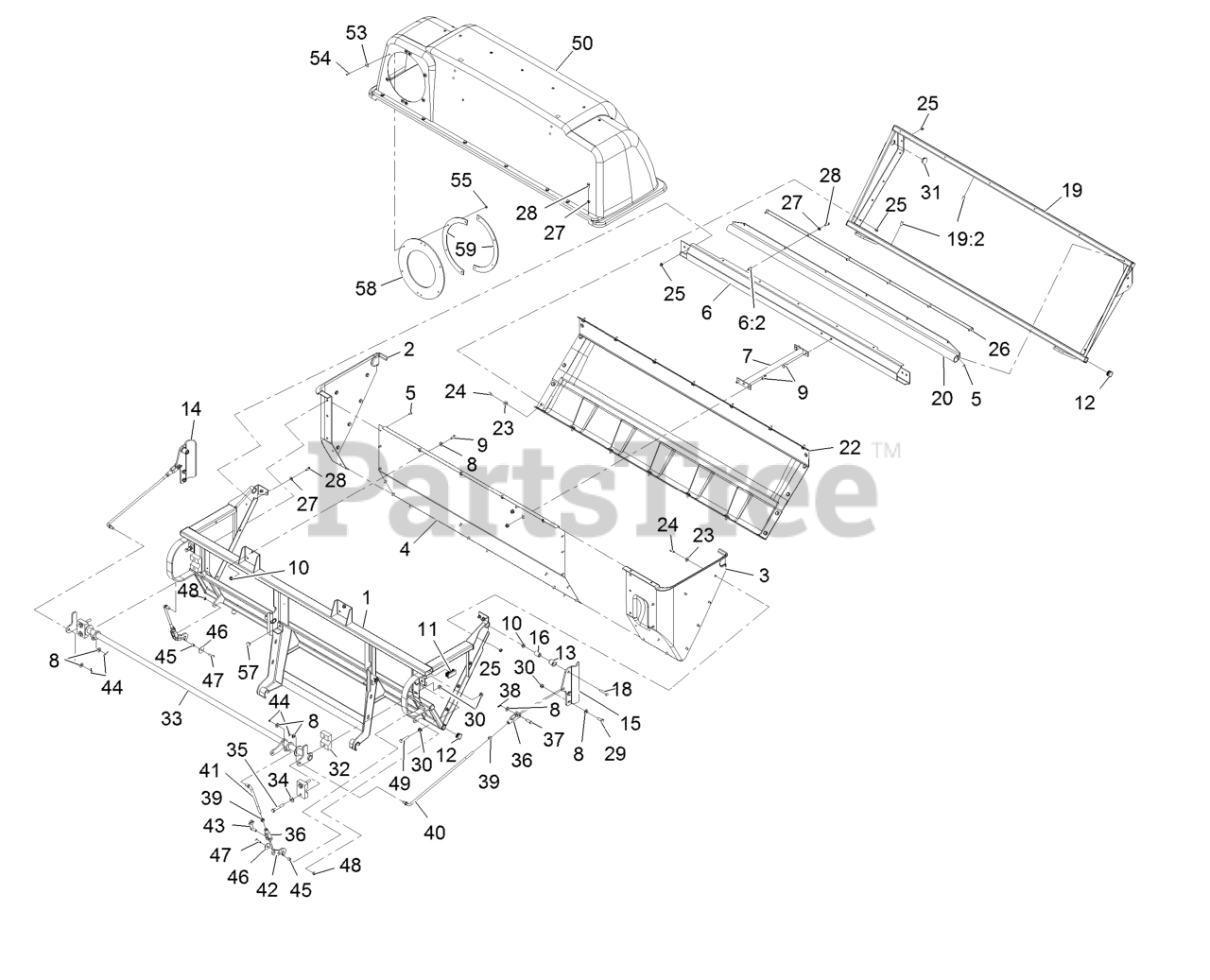

LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Hopper Assembly No. 109-6142 Parts Diagram

Hopper Assembly No. 109-6142 Parts Diagram
