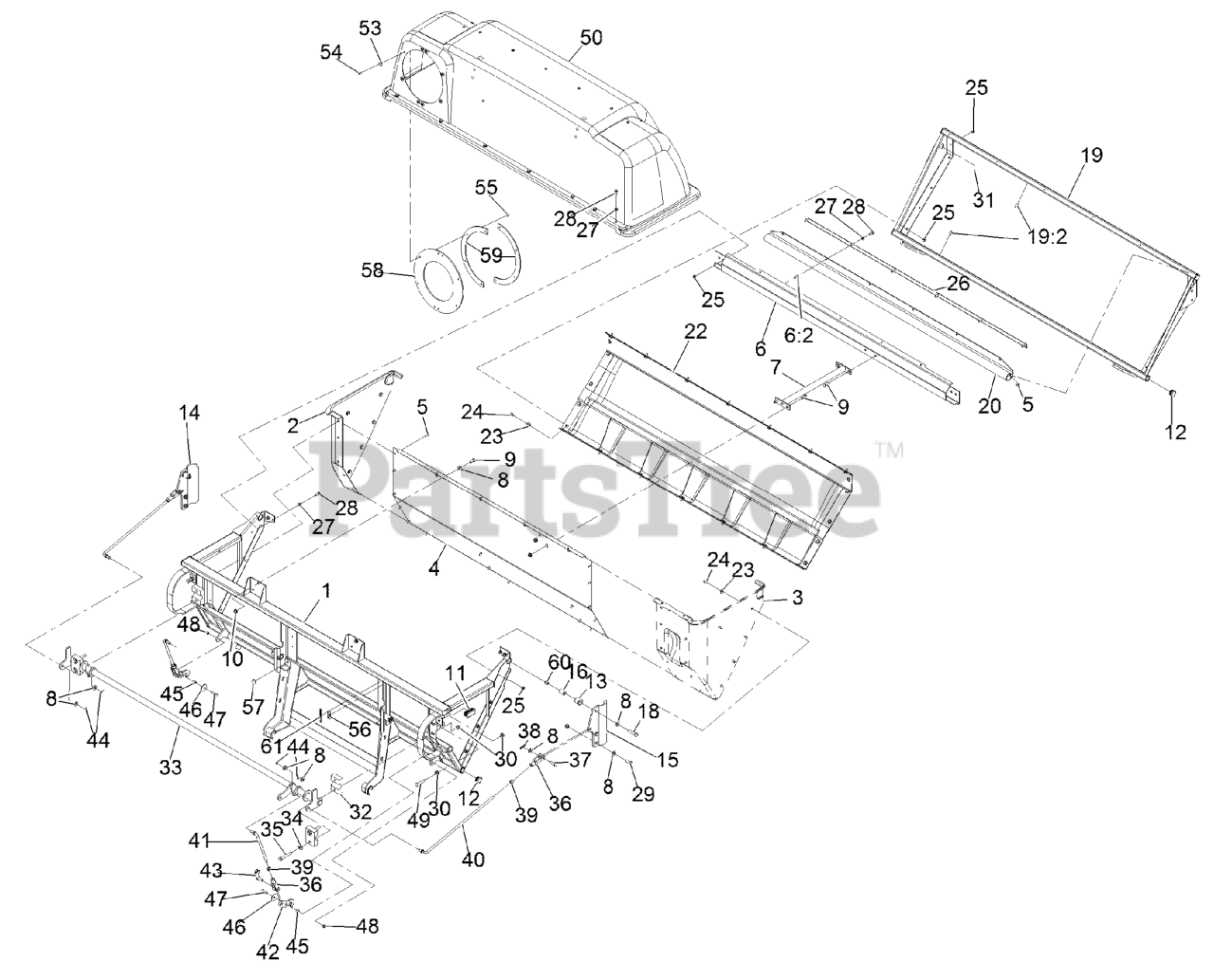

LZUVQD11 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 404314159 - 406294344) (2019) > Parts Diagrams (13) > Hopper Assembly

  • Title
109-8709-03

1

FRAME

Part# 109-8709-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1731.13

103-7827

2

PANEL-BAGGER, RH

Part# 103-7827

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $121.19

103-7826

3

PANEL-BAGGER, LH

Part# 103-7826

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $121.19

103-2404-03

4

SHEET-WALL

Part# 103-2404-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $118.89

114439

5

RIVET-BLIND

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

103-2710

6

REAR CROSSMEMBER ASM

Part# 103-2710

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.48

32148-6

6:2

NUT-CLINCH

Part# 32148-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.98

103-2414-03

7

SUPPORT

Part# 103-2414-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.08

3256-24

8

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

322-3

9

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

32128-20

10

NUT-HF

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

103-3201

11

CAP

Part# 103-3201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.21

103-3202

12

CAP

Part# 103-3202

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

103-2377

13

BUSHING

Part# 103-2377

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.13

103-3331-03

14

ARM-HINGE, RH

Part# 103-3331-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.39

103-3332-03

15

ARM-HINGE, LH

Part# 103-3332-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.39

103-2361

16

PIN-PIVOT, HINGE

Part# 103-2361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.77

323-9

18

SCREW-HH

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

103-2737

19

DOOR ASM

Part# 103-2737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $482.50

32148-6

19:2

NUT-CLINCH

Part# 32148-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.98

103-2360

20

SEAL-DOOR HINGE

Part# 103-2360

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $99.26

103-2383

22

BAG AND BOTTOM PANEL ASM

Part# 103-2383

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $240.09

3256-2

23

WASHER-FLAT

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

321-3

24

SCREW-HH

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

32128-33

25

NUT-HF

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-3010-03

26

STRAP-HOLD DOWN

Part# 103-3010-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.01

3256-22

27

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

321-4

28

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

323-6

29

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.97

3290-357

30

NUT-HHF, WHIZ

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

103-8018

31

PLUG-DOME

Part# 103-8018

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.14

103-2409

32

103-8057

Part# 103-2409 (Superseded to 103-8057)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.70

103-2412-03

33

LINK-INTERMEDIATE

Part# 103-2412-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $193.92

3256-4

34

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-12

35

SCREW-HH

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

1-633131

36

YOKE-LINKAGE, BRAKE

Part# 1-633131

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.69

1-808285

37

PIN-CLEVIS

Part# 1-808285

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.20

1-806003

38

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

3219-3

39

NUT-HEX

Part# 3219-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.35

103-2365

40

LINK-HINGE

Part# 103-2365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.31

103-2413

41

LINK-HANDLE

Part# 103-2413

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.22

103-3191-03

42

LATCH

Part# 103-3191-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.42

103-2399

43

PIN-SPRING, CLEVIS

Part# 103-2399

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.25

3272-10

44

PIN-COTTER

Part# 3272-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

1-633545

45

SPACER

Part# 1-633545

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

3256-55

46

WASHER-FLAT

Part# 3256-55

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.81

321-6

47

SCREW-HH

Part# 321-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.41

3296-42

48

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.36

323-53

49

SCREW-HH

Part# 323-53

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.77

109-7301

50

ASM,HOOD DUMP

Part# 109-7301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $714.81

3256-61

53

WASHER-FLAT

Part# 3256-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

3250-27

54

SCREW-PPH

Part# 3250-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

3296-2

55

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

126-4345

56

Decal-Patent Ttco.Com

Part# 126-4345

OEM Warranty Repair Part for Exmark

Currently unavailable

1-513658

57

BUMPER

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.94

103-0439

58

SEAL-TUBE

Part# 103-0439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.61

103-0378

59

CLAMP-SEAL

Part# 103-0378

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.72

3296-39

60

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

133-8061

61

DECAL-WARNING

Part# 133-8061

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.64
