LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) LZUVQD7 Assembly Parts Diagram

Ultra Vac QDS Bagger for Lazer Z Mower

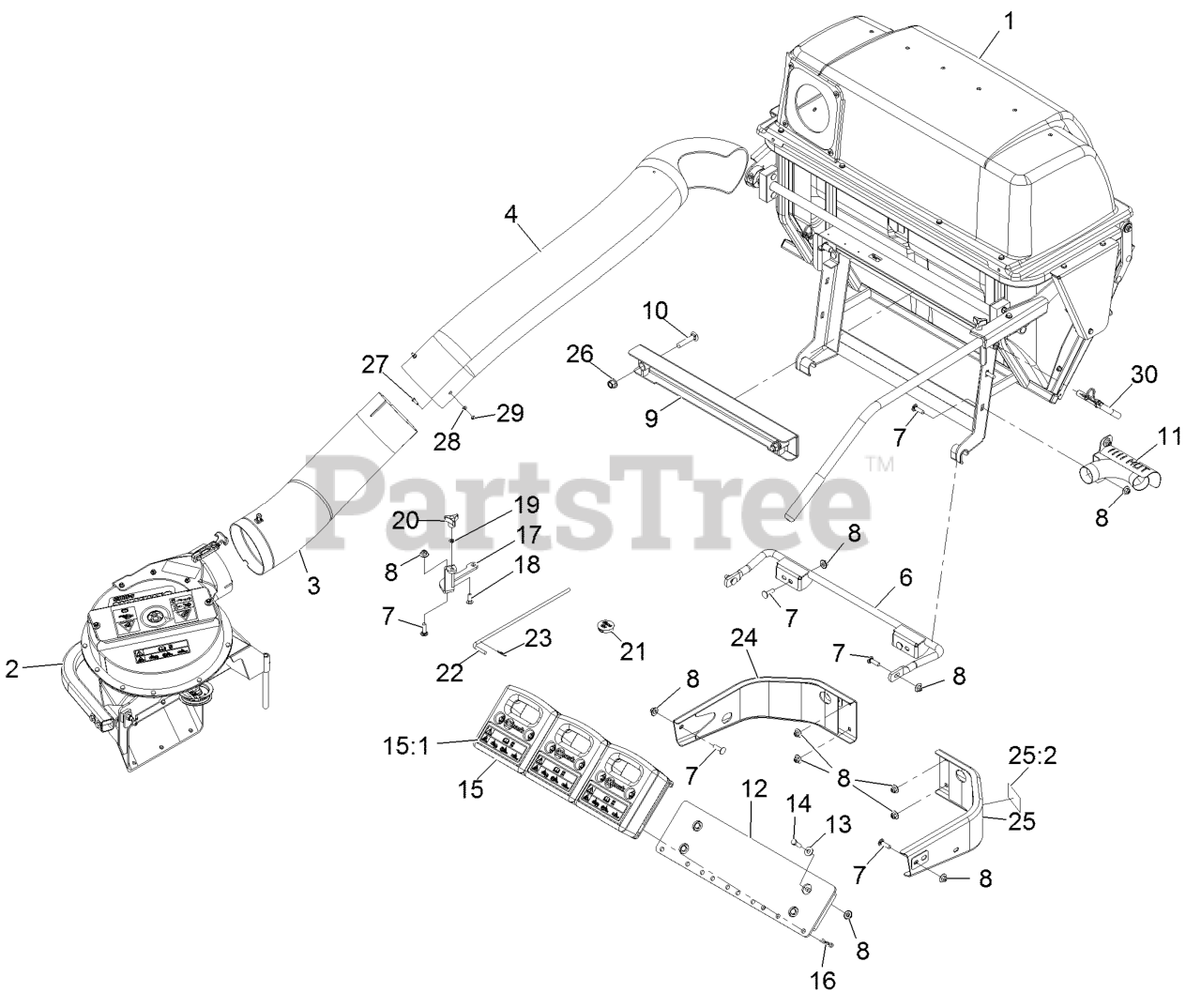

LZUVQD7 Assembly Parts Diagram

  • Title

1

ASM,Hopper Sm Qds

ASM,Hopper Sm Qds

$

$

Not available

2

Exmark 109-9832

ASM, Blower Small - Svc Only

$2147.99

$

Usually ships in 3-6 days

0

3

Exmark 109-2043

Lower Tube ASM

$258.99

$

In Stock, only 1 left!

0

4

Exmark 109-2036

Tube-Upper

$279.99

$

Usually ships in 3-6 days

0

6

Exmark 109-9248

Mount-Bagger, Lower

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-0473-03

Mount-Bagger, Upper

$239.99

$

Usually ships in 3-6 days

0

10

Exmark 3233-34

Bolt-Carriage 1/2-13 X 2 1/2

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 116-2804

Exhaust Diverter ASM

$202.99

$

Usually ships in 3-6 days

0

12

Exmark 116-1129-01

Wld, Mount Toeboard Weight

$456.99

$

Usually ships in 3-6 days

0

13

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

14

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-6363

Asm, Weight (103-6364-01) W/Decals

$344.99

$

Usually ships in 3-6 days

0

15:1

Exmark 126-4661

Decal-Warning Weight

$5.99

$

In Stock, only 2 left!

0

16

Exmark 9335124

Hairpin-Cotter

$2.99

$

In Stock, only 1 left!

0

17

Exmark 116-0161-01

Bracket, Small Uv Belt Cover

$51.99

$

Usually ships in 3-6 days

0

18

Exmark 3230-2

Bolt-Carriage 5/16-18 X 1

$1.49

$

In Stock, Qty 7

0

19

Exmark 109-5667

Ring-Bolt Retaining

$6.49

$

In Stock, only 3 left!

0

20

Exmark 1-323385

Knob-3 Prong

$5.49

$

In Stock, Qty 20+

0

21

Exmark 103-1279

Plug

$11.99

$

Usually ships in 3-6 days

0

22

Exmark 109-3458

Pin, Chute Pivot

$17.99

$

Usually ships in 3-6 days

0

23

Exmark 1-806003

Hairpin-Cotter

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-0057-03

Bumper-RH

$213.99

$

In Stock, only 1 left!

0

25

Exmark 116-0180

LH Bumper ASM

$144.99

$

Usually ships in 3-6 days

0

25:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 4 left!

0

26

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

27

Exmark 32105-13

Screw-HWH #10-24 X 3/4

$1.99

$

In Stock, Qty 5

0

28

Exmark 3256-14

Washer-#10 Std

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

30

Exmark 116-0458

Pin-Mount, Bagger

$15.99

$

In Stock, only 2 left!
