LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018)

Ultra Vac QDS Bagger for Lazer Z Mower

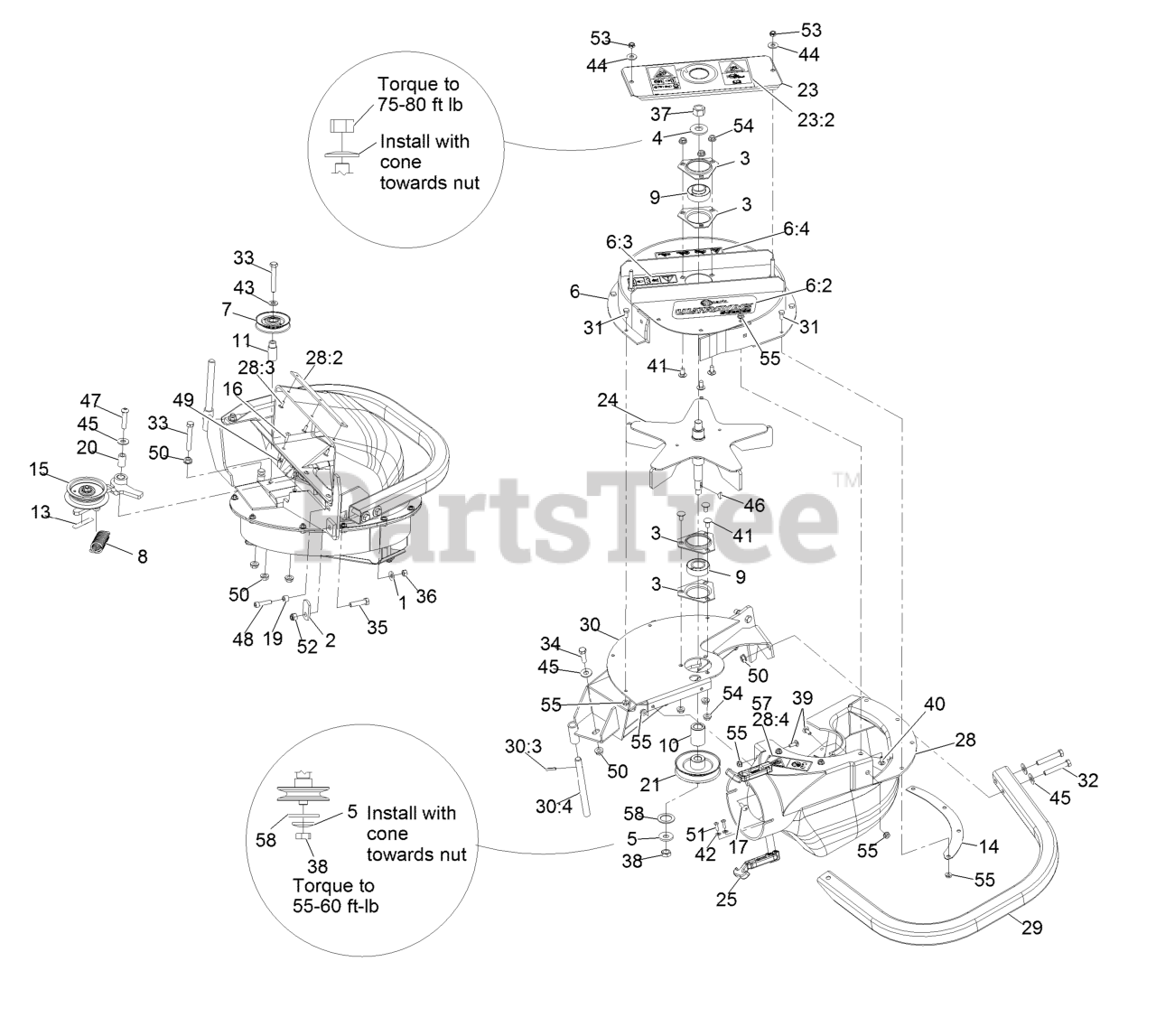

LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) > Parts Diagrams (13) > Blower Assembly No. 109-9832

  • Title
1-303334

1

Washer-Spring Disc 5/16

Part# 1-303334

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.33

1-353054

2

Latch-Catcher, Grass

Part# 1-353054

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

1-513013

3

Housing-Flange

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

1-513208

4

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.88

1-513435

5

Washer-Spring Disc 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.46

116-4817

6

ASM-Upper Housing Small

Part# 116-4817

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $380.02

126-7211

6:2

Decal-Ultravac S-Series

Part# 126-7211

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.86

112-9028

6:3

Decal-Missing, Cover

Part# 112-9028

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.24

126-4661

6:4

Decal-Warning Weight

Part# 126-4661

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.65

1-653322

7

Idler-Inside

Part# 1-653322

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $46.16

1-653331

8

Spring

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.91

1-653346

9

Bearing

Part# 1-653346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.47

1-653365

10

Spacer

Part# 1-653365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.26

1-653366

11

Spacer

Part# 1-653366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.88

126-4659

13

Decal-Warning

Part# 126-4659

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.58

1-653596-03

14

Plate-Backing, Blower

Part# 1-653596-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.61

15

ASM, Idler

Part#

Not available

1-803075

16

Screw-Truss Head #10-24 X 3/4

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

1-803076

17

Screw-PPH 1/4-20 X 3/4

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.95

103-0126

19

Bushing

Part# 103-0126

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.61

103-0130

20

Bushing-Pivot, Idler

Part# 103-0130

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.68

103-1047

21

Sheave-Blower

Part# 103-1047

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $54.25

103-3585

23

Cover, Bearing

Part# 103-3585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $82.66

126-4584

23:2

Decal-Warning

Part# 126-4584

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

103-3815

24

Impeller

Part# 103-3815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $206.62

103-4080

25

Latch-Rubber

Part# 103-4080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.87

109-1985

28

Chute, Blower (46, 50 And 56)

Part# 109-1985

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $316.07

103-4752-03

28:2

Plate-Reinforcing

Part# 103-4752-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.94

114439

28:3

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

126-4853

28:4

Decal-Warning

Part# 126-4853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.53

109-1122-01

29

Bumper

Part# 109-1122-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $79.64

109-9362-03

30

Weld, Frame Sm Blower

Part# 109-9362-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $491.13

1-806323

30:3

Rollpin 3/16 X 7/8

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

1-353050

30:4

Shaft-Catcher, Grass

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.22

321-3

31

Screw-HH 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

323-11

32

Screw-HH 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

323-12

33

Screw-HH 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.99

323-7

34

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

323-8

35

Screw-HH 3/8-16 X 1 1/2

Part# 323-8

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.52

3217-6

36

Nut-Hex 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

3219-6

37

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

3220-5

38

Nut-Jam 1/2-20

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3229-1

39

Bolt-Carriage 1/4-20 X 3/4

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.71

3229-11

40

Bolt-Carriage 1/4-20 X 5/8

Part# 3229-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.94

3230-18

41

Bolt-Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.10

3256-14

42

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3256-24

43

Washer-3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.51

3256-3

44

Washer-5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

3256-4

45

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3257-32

46

Key-Woodruff 3/16 X 5/8

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

3274-107

47

Screw-Button Head 3/8-16 X 1 3/4

Part# 3274-107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.94

3274-18

48

Screw-Sh 5/16-18 X 1 1/4

Part# 3274-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.67

3290-148

49

Nut-Whizlock #10-24

Part# 3290-148

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

3290-357

50

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.75

3290-500

51

Screw-PPH #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

3296-39

52

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

3296-47

53

Nut-Nyloc 5/16-18 Thin

Part# 3296-47

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

32128-20

54

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.69

32128-33

55

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

126-4853

57

Decal-Warning

Part# 126-4853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.53

1-523157

58

Washer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01
