LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018)

Ultra Vac QDS Bagger for Lazer Z Mower

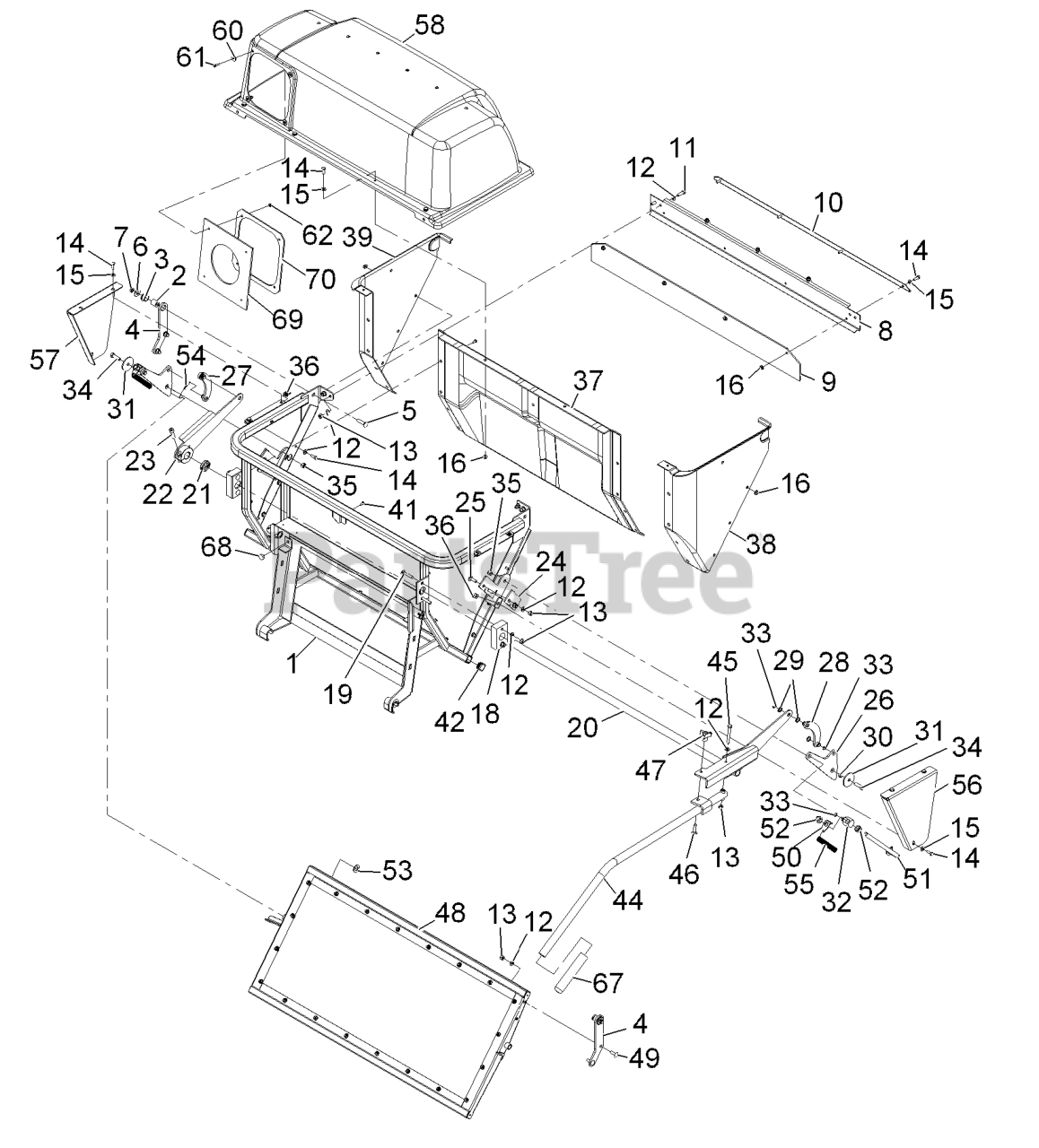

LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) > Parts Diagrams (13) > Hopper Assembly

  • Title
109-8701-03

1

Frame ASM

Part# 109-8701-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $959.16

103-6294

2

Pin-Pivot, Hinge

Part# 103-6294

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.00

103-6295

3

Bearing

Part# 103-6295

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.82

103-4820-03

4

Plate, Hinge

Part# 103-4820-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.39

3231-4

5

Bolt-Carriage 3/8-16 X 1 1/2

Part# 3231-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.46

3256-4

6

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

3296-59

7

Nut-Nyloc 3/8-16 Thin

Part# 3296-59 (Superseded to 121-4600)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.82

103-4412-03

8

Plate-Rear

Part# 103-4412-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.85

103-4832

9

Seal-Door

Part# 103-4832

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.14

103-4834-03

10

Strap-Hold Down

Part# 103-4834-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.55

322-5

11

Screw-HH 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.43

3256-23

12

Washer-5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.72

3296-29

13

Nut-Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

321-4

14

Screw-HH 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.81

3256-22

15

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

32128-33

16

Nut-Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.64

103-4402

18

Bearing

Part# 103-4402

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.31

3230-5

19

Bolt-Carriage 5/16-18 X 1 3/4

Part# 3230-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

103-5114-03

20

Bellcrank

Part# 103-5114-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $155.83

103-4433

21

Shaft-Collar

Part# 103-4433

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.61

103-8835-03

22

Link

Part# 103-8835-03 (Superseded to 103-8839)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $108.49

3274-1

23

Screw-Sh 3/8-16 X 1 1/4

Part# 3274-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.74

103-4408-03

24

Stop-Linkage

Part# 103-4408-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.26

3230-2

25

Bolt-Carriage 5/16-18 X 1

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

103-4424

26

Arm-Linkage, Door

Part# 103-4424

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.08

103-5111

27

Link-RH

Part# 103-5111

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.70

103-5112

28

Link-LH

Part# 103-5112

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $42.70

94-8196

29

Washer-Nylon

Part# 94-8196

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.22

103-4415

30

Bearing-Linkage, Pivot

Part# 103-4415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.35

103-4431

31

Washer

Part# 103-4431

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.41

103-4848

32

Trunnion-Link

Part# 103-4848

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

32151-61

33

Ring-Retaining

Part# 32151-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

323-7

34

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

3296-39

35

Nut-Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

107069

36

Nut-Retainer-Panel 1/4-20

Part# 107069

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.39

103-5102

37

Panel-Bagger

Part# 103-5102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $160.44

103-7828

38

Panel-Bagger, LH

Part# 103-7828

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.51

103-7829

39

Panel-Bagger, RH

Part# 103-7829

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $123.51

114439

41

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.59

103-3202

42

Cap

Part# 103-3202

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.83

109-8506-03

44

Handle-Qd7

Part# 109-8506-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.18

322-12

45

Screw-HH 5/16-18 X 2 1/2

Part# 322-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.90

3230-3

46

Bolt-Carriage 5/16-18 X 1 1/4

Part# 3230-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.01

1-323385

47

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

103-6270

48

Asm, Door

Part# 103-6270

OEM Warranty Repair Part for Exmark

Currently unavailable

3230-22

49

Bolt-Carriage 5/16-18 X 1 Sp

Part# 3230-22 (Superseded to 3230-22)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.87

103-4835

50

Anchor-Spring

Part# 103-4835

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.38

103-4822

51

Link-Door

Part# 103-4822

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.00

3219-5

52

Nut-Hex 1/2-20

Part# 3219-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.65

3256-26

53

Washer-1/2 SAE

Part# 3256-26

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.46

1-806003

54

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

103-4813

55

Spring

Part# 103-4813

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.96

103-4437-03

56

Guard-LH

Part# 103-4437-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.29

103-4819-03

57

Guard-RH

Part# 103-4819-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.29

103-6232

58

Asm, Hood

Part# 103-6232

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $325.79

3256-61

60

Washer

Part# 3256-61

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.34

3250-27

61

Screw-PPH #10-24 X 7/8

Part# 3250-27

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.57

3296-2

62

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

103-7115

67

Handle-Grip

Part# 103-7115

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.31

1-513658

68

Bumper

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.94

1-653561

69

Seal-Chute

Part# 1-653561

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.09

1-653598-03

70

Clamp-Seal

Part# 1-653598-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $55.40
