LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018)

Ultra Vac QDS Bagger for Lazer Z Mower

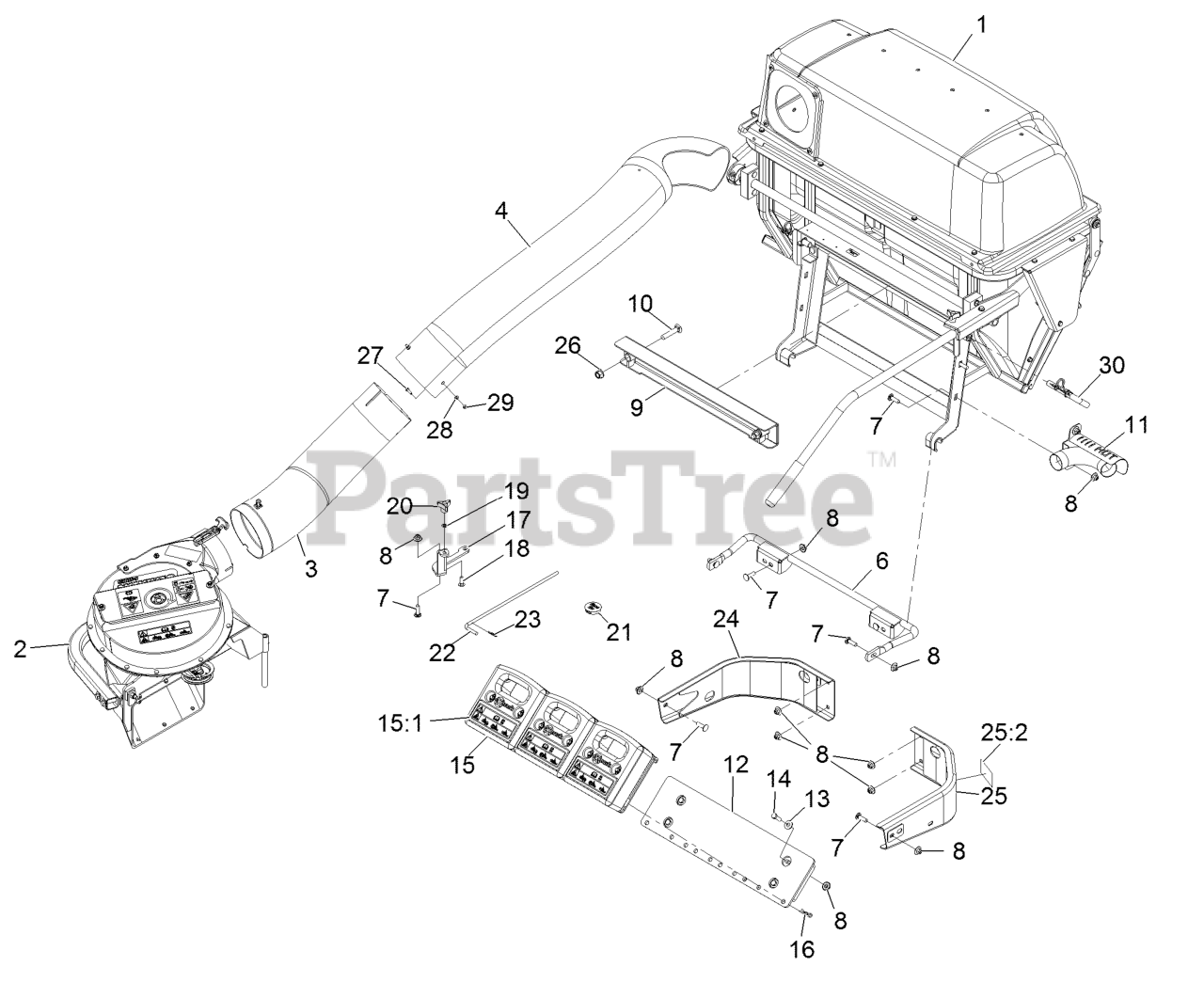

LZUVQD7 - Exmark Ultra Vac QDS Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) > Parts Diagrams (13) > LZUVQD7 Assembly

  • Title

1

ASM,Hopper Sm Qds

Part#

Not available

109-9832

2

ASM, Blower Small - Svc Only

Part# 109-9832

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1487.98

109-2043

3

Lower Tube ASM

Part# 109-2043

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $177.75

109-2036

4

Tube-Upper

Part# 109-2036

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $191.60

109-9248

6

Mount-Bagger, Lower

Part# 109-9248

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $141.98

3231-28

7

Bolt-Carriage 3/8-16 X 1 1/4

Part# 3231-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

109-6658

8

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.77

116-0473-03

9

Mount-Bagger, Upper

Part# 116-0473-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $163.90

3233-34

10

Bolt-Carriage 1/2-13 X 2 1/2

Part# 3233-34

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.28

116-2804

11

Exhaust Diverter ASM

Part# 116-2804

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $139.66

116-1129-01

12

Wld, Mount Toeboard Weight

Part# 116-1129-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $317.27

3256-4

13

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

323-7

14

Screw-HH 3/8-16 X 1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.29

103-6363

15

Asm, Weight (103-6364-01) W/Decals

Part# 103-6363

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $239.47

126-4661

15:1

Decal-Warning Weight

Part# 126-4661

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.65

9335124

16

Hairpin-Cotter

Part# 9335124

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.25

116-0161-01

17

Bracket, Small Uv Belt Cover

Part# 116-0161-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.13

3230-2

18

Bolt-Carriage 5/16-18 X 1

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

109-5667

19

Ring-Bolt Retaining

Part# 109-5667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.29

1-323385

20

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.75

103-1279

21

Plug

Part# 103-1279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

109-3458

22

Pin, Chute Pivot

Part# 109-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.69

1-806003

23

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.26

116-0057-03

24

Bumper-RH

Part# 116-0057-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $146.59

116-0180

25

LH Bumper ASM

Part# 116-0180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $182.37

106-5517

25:2

Decal-Warning

Part# 106-5517

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.40

99-5107

26

Nut-Lock 1/2-13

Part# 99-5107

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

32105-13

27

Screw-HWH #10-24 X 3/4

Part# 32105-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.40

3256-14

28

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

3296-2

29

Nut-Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.29

116-0458

30

Pin-Mount, Bagger

Part# 116-0458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.47
