LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Battery Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

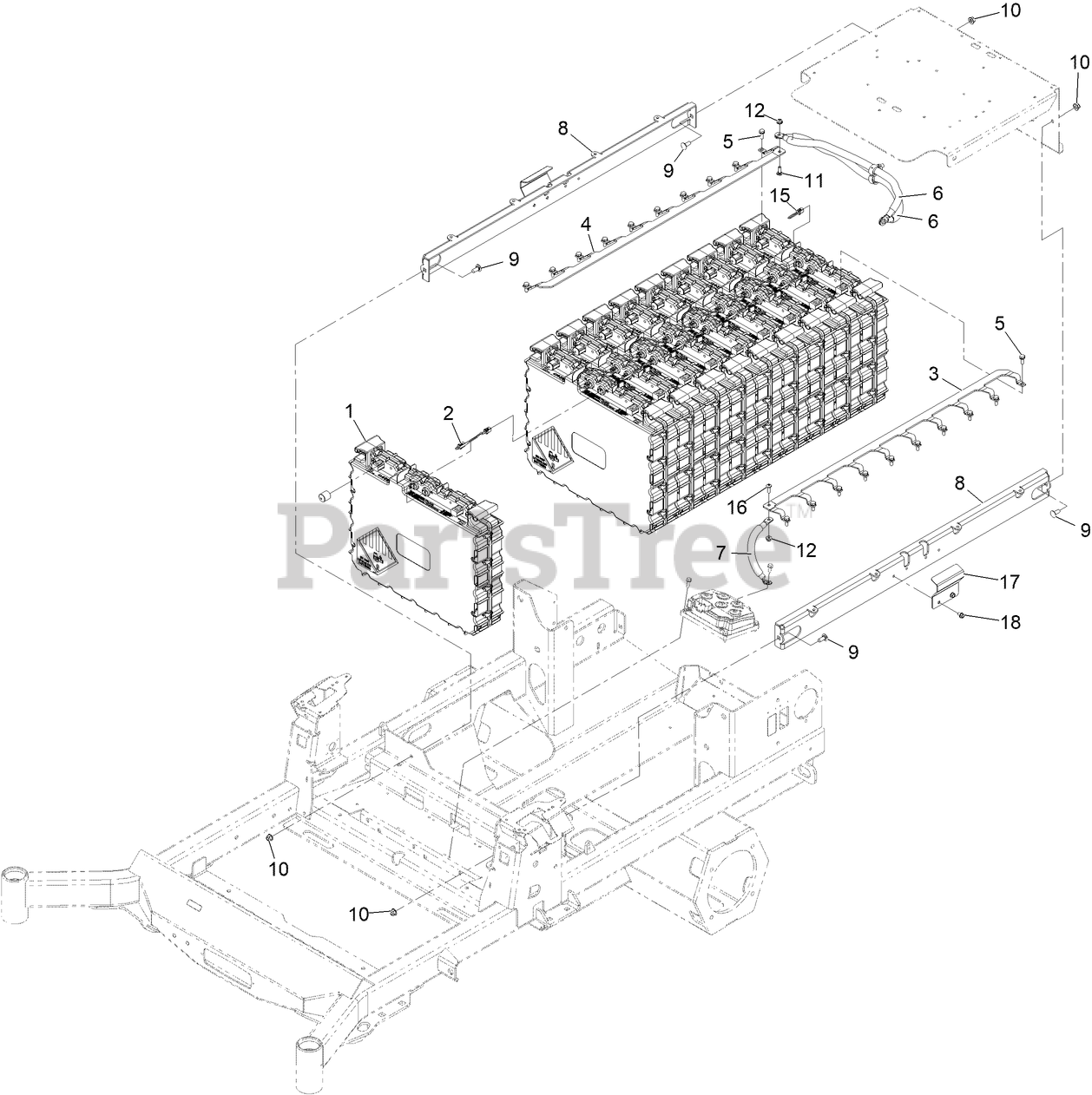

Battery Assembly Parts Diagram

  • Title

1

Exmark 145-5320

BATTERY ASM

$2456.99

$

Usually ships in 0 days

0

2

Exmark 140-9565

HARNESS-WIRE, DATA INTERFACE

$60.99

$

Usually ships in 0 days

0

3

Exmark 147-1666

BUSBAR-10, BK

$225.99

$

Usually ships in 0 days

0

4

Exmark 147-1632

BUSBAR-10, RD

$225.99

$

Usually ships in 0 days

0

5

Exmark 145-5783

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 147-4560

CABLE-BATTERY, RD ASM

$75.99

$

Usually ships in 0 days

0

7

Exmark 147-4570

CABLE-BATTERY, BK ASM

$49.99

$

Usually ships in 0 days

0

8

Exmark 147-7809-03

PLATE-RETAINER

$42.99

$

Usually ships in 0 days

0

9

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

11

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 122-2323

HARNESS-WIRE, CAN TERMINATOR

$35.99

$

Usually ships in 0 days

0

16

Exmark 138-0689

SCREW-PH

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 146-3366-03

PLATE-COVER

$22.99

$

Usually ships in 0 days

0

18

Exmark 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

99

Exmark 145-1070

CHARGER-3300W

Note: Not illustrated

$1924.99

$

Usually ships in 0 days

0
