LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Deck Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

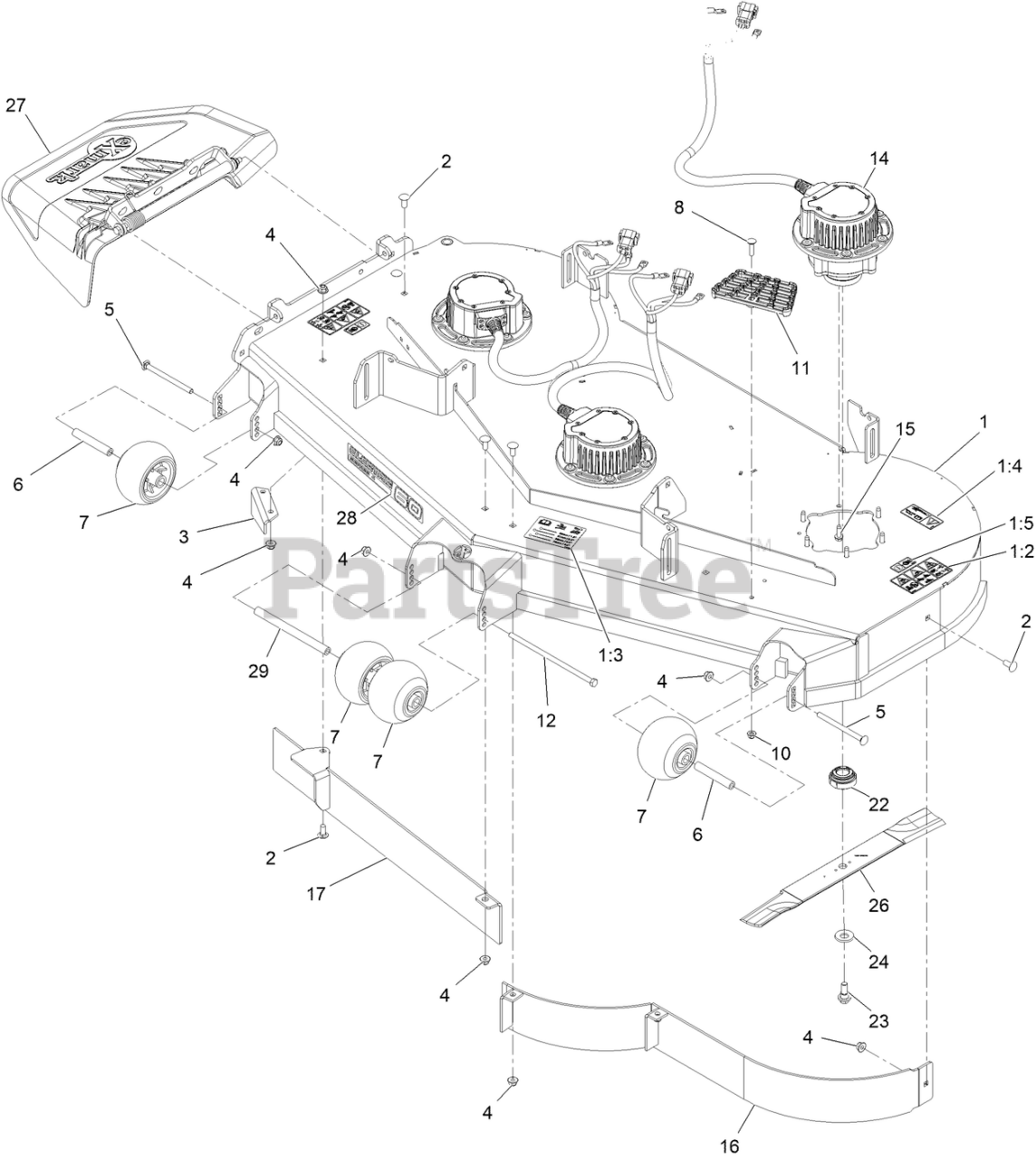

Deck Assembly Parts Diagram

  • Title

1

Exmark 142-9740

ASM, Deck W/ Decals, 60

$

$

Currently unavailable

1:2

Exmark 117-3848

DECAL-DANGER

$18.99

$

In Stock, Qty 15

0

1:3

Exmark 127-0326

DECAL-SCALP, ANTI

$7.49

$

Usually ships in 3-6 days

0

1:4

Exmark 147-0288

DECAL-DANGER

$6.49

$

Usually ships in 0 days

0

1:5

Exmark 137-8127

DECAL-NO SPRAY

$6.49

$

Usually ships in 0 days

0

2

Exmark 3231-27

SCREW-CARR

$4.99

$

In Stock, only 3 left!

0

3

Exmark 107-8541-01

BAFFLE-DISCHARGE

$23.99

$

In Stock, only 1 left!

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 109-6795

BOLT-CARR

$5.49

$

In Stock, only 4 left!

0

6

Exmark 146-1990

SPACER-AXLE

$7.99

$

In Stock, Qty 12

0

7

Exmark 146-1989

ROLLER-SCALP, ANTI

$24.99

$

In Stock, Qty 12

0

8

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 9

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

11

Exmark 126-4781-03

STEP-DECK

$31.99

$

In Stock, only 2 left!

0

12

Exmark 323-24

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 147-1689

MOTOR/GEN

$1592.99

$

Usually ships in 3-6 days

0

15

Exmark 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 114-5842-01

BAFFLE

$260.99

$

Usually ships in 3-6 days

0

17

Exmark 146-1984-01

Baffle-Front, 60 [red]

$

$

Currently unavailable

22

Exmark 145-3439

RETAINER-BLADE

$17.99

$

Usually ships in 3-6 days

0

23

Exmark 145-3499

SCREW-SHOULDER, HWH

$9.49

$

Usually ships in 3-6 days

0

24

Exmark 125-1736

Washer-Belleville

$4.49

$

In Stock, only 2 left!

0

26

Exmark 145-3505-03

BLADE-20.5IN, MED SAIL

$33.99

$

Usually ships in 3-6 days

0

27

Exmark 146-2418

ASM- DISCHARGE CHUTE

$151.99

$

Usually ships in 0 days

0

28

Exmark 146-2713

DECAL-ELECTRIC 60 SERIES 4

$23.99

$

Usually ships in 0 days

0

29

Exmark 146-4543

SPACER-AXLE, DOUBLE

$30.99

$

Usually ships in 0 days

0
