LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Deck Lift Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

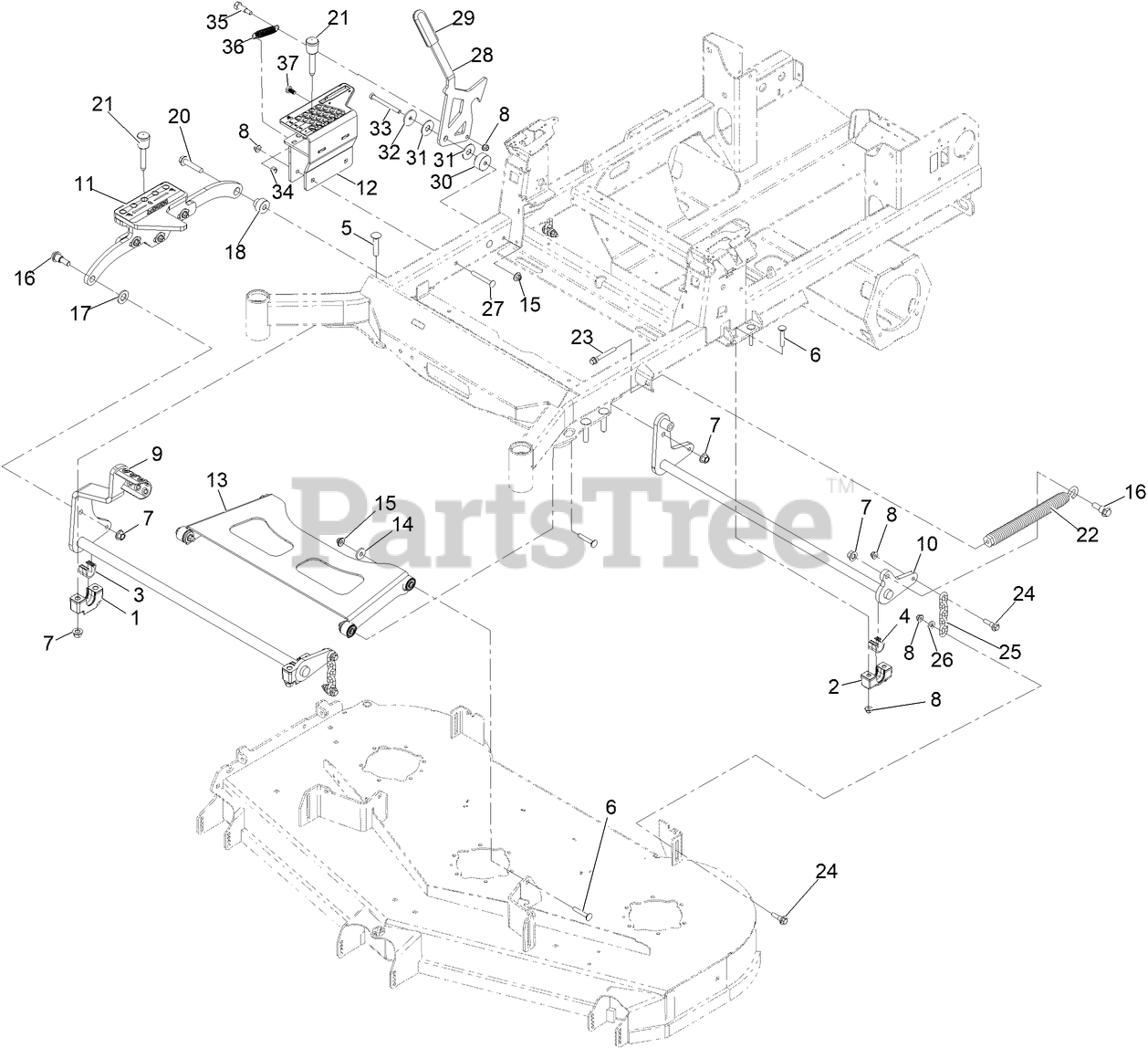

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 9

0

2

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$15.99

$

In Stock, Qty 6

0

3

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

0

4

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

0

5

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.49

$

In Stock, Qty 20+

0

7

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 146-3117-03

WELD-FRONT CROSS SHAFT

$316.99

$

Usually ships in 0 days

0

10

Exmark 146-2183-03

WELD-REAR CROSS SHAFT

$258.99

$

Usually ships in 0 days

0

11

Exmark 146-2241

ASM-Decklift Linkages

$

$

Currently unavailable

12

Exmark 146-2528

ASM-HOC Box W/Decal

$

$

Currently unavailable

13

Exmark 140-1179

DECK STRUT W/ BUSHINGS ASM

$148.99

$

Usually ships in 3-6 days

0

14

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

15

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, Qty 20+

0

17

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

18

Exmark 146-2188

SPACER-STEPPED

$23.99

$

Usually ships in 0 days

0

20

Exmark 127-7444

SCREW-HHF

$9.49

$

Usually ships in 3-6 days

0

21

Exmark 142-9775

ASM- HOC PIN

$26.99

$

In Stock, only 4 left!

0

22

Exmark 116-0886

SPRING-EXTENSION

$149.99

$

In Stock, only 1 left!

0

23

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, Qty 8

0

24

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

25

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 14

0

26

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

0

27

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

28

Exmark 146-2549

LATCH-TRANSPORT

$90.99

$

Usually ships in 0 days

0

29

Exmark 132-4749

GRIP-LEVER

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 146-2565

SPACER-STEPPED

$21.99

$

Usually ships in 0 days

0

31

Exmark 146-0909

Washer

$4.49

$

Usually ships in 0 days

0

32

Exmark 63-7400

WASHER-REBOUND

$3.49

$

In Stock, only 4 left!

0

33

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

34

Exmark 33025-00

Nut-Lock, NI

$1.49

$

In Stock, only 2 left!

0

35

Exmark 117-4698

SCREW-SHOULDER, HH

$22.99

$

Usually ships in 3-6 days

0

36

Exmark 104-4130

SPRING-EXTENSION, PIVOT

$23.99

$

Usually ships in 3-6 days

0

37

Exmark 142-7585

MAGNET-STUD, THREADED

$12.99

$

Usually ships in 0 days

0
