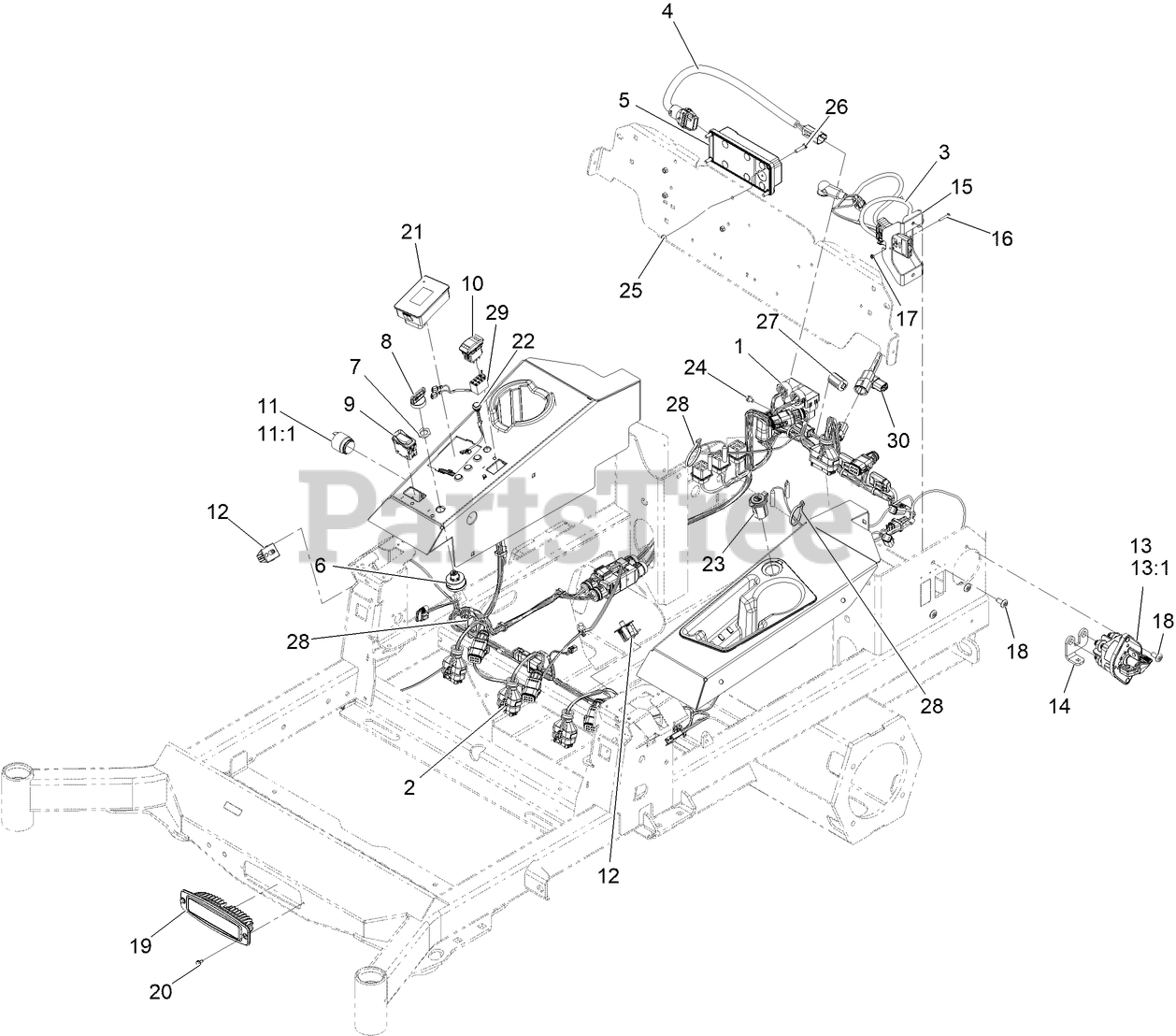

LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Electrical Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

Electrical Assembly Parts Diagram

  • Title

1

Exmark 144-2673

HARNESS-WIRE, MAIN

$1765.99

$

Usually ships in 0 days

0

2

Exmark 145-4807

HARNESS-WIRE, DECK

$1249.99

$

Usually ships in 0 days

0

3

Exmark 145-4800

HARNESS-WIRE, CHARGER PORT

$383.99

$

Usually ships in 0 days

0

4

Exmark 147-0250

HARNESS-WIRE

$96.99

$

Usually ships in 0 days

0

5

Exmark 139-8189

CONTROLLER

$860.99

$

Usually ships in 0 days

0

6

Exmark 139-7716

SWITCH-KEY, SPST

$42.99

$

Usually ships in 3-6 days

0

7

Exmark 101884

NUT

$7.99

$

In Stock, only 1 left!

0

8

Exmark 103-2106

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

9

Exmark 139-6368

SWITCH-ROCKER, ON-NONE-ON

$36.99

$

In Stock, Qty 12

0

10

Exmark 95-8999

SWITCH

$48.99

$

In Stock, only 1 left!

0

11

Exmark 80-9330

Audio Alarm ASM

$156.99

$

Usually ships in 3-6 days

0

11:1

Exmark 104-5107

Nut-Plastic, Knurled

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 145-3520

SWITCH-PLUNGER, ON-(ON)

$25.99

$

Usually ships in 3-6 days

0

13

Exmark 122-0603

SWITCH-DISCONNECT

$294.99

$

Usually ships in 3-6 days

0

13:1

Exmark 33006-00

Nut-HF

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 147-0370

BUSBAR-2, SWITCH

$85.99

$

Usually ships in 0 days

0

15

Exmark 145-3597-03

BRACKET-CHARGER, DUAL

$30.99

$

Usually ships in 3-6 days

0

16

Exmark 32105-9

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

17

Exmark 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 10

0

18

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

19

Exmark 139-8089

MOUNT-FLUSH, LIGHT

$105.99

$

Usually ships in 3-6 days

0

20

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 122-1201

MODULE-DISPLAY

$222.99

$

Usually ships in 3-6 days

0

22

Exmark 136-9678

SWITCH-PUSHBUTTON

$62.99

$

Usually ships in 3-6 days

0

23

Exmark 140-7955

PORT-POWER, USB

$38.99

$

Usually ships in 3-6 days

0

24

Exmark 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

26

Exmark 112-9356

SCREW-HSBH

$3.99

$

Usually ships in 0 days

0

27

Exmark 139-7720

FERRITE, SNAP-ON

$9.49

$

Usually ships in 3-6 days

0

28

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

29

Exmark 146-2741

Harness-Light Switch Jumper

$

$

Currently unavailable

30

Exmark 161-3544

HARNESS-WIRE, JUMPER

$100.99

$

Usually ships in 0 days

0
