LZV060B2360A00 - Exmark 60" Lazer Z V-Series Zero-Turn Mower, Electric (SN: 416150475 - 417930745) (Rev A) (2024) Motion Control Assembly Parts Diagram

60" Lazer Z V-Series Zero-Turn Mower, Electric

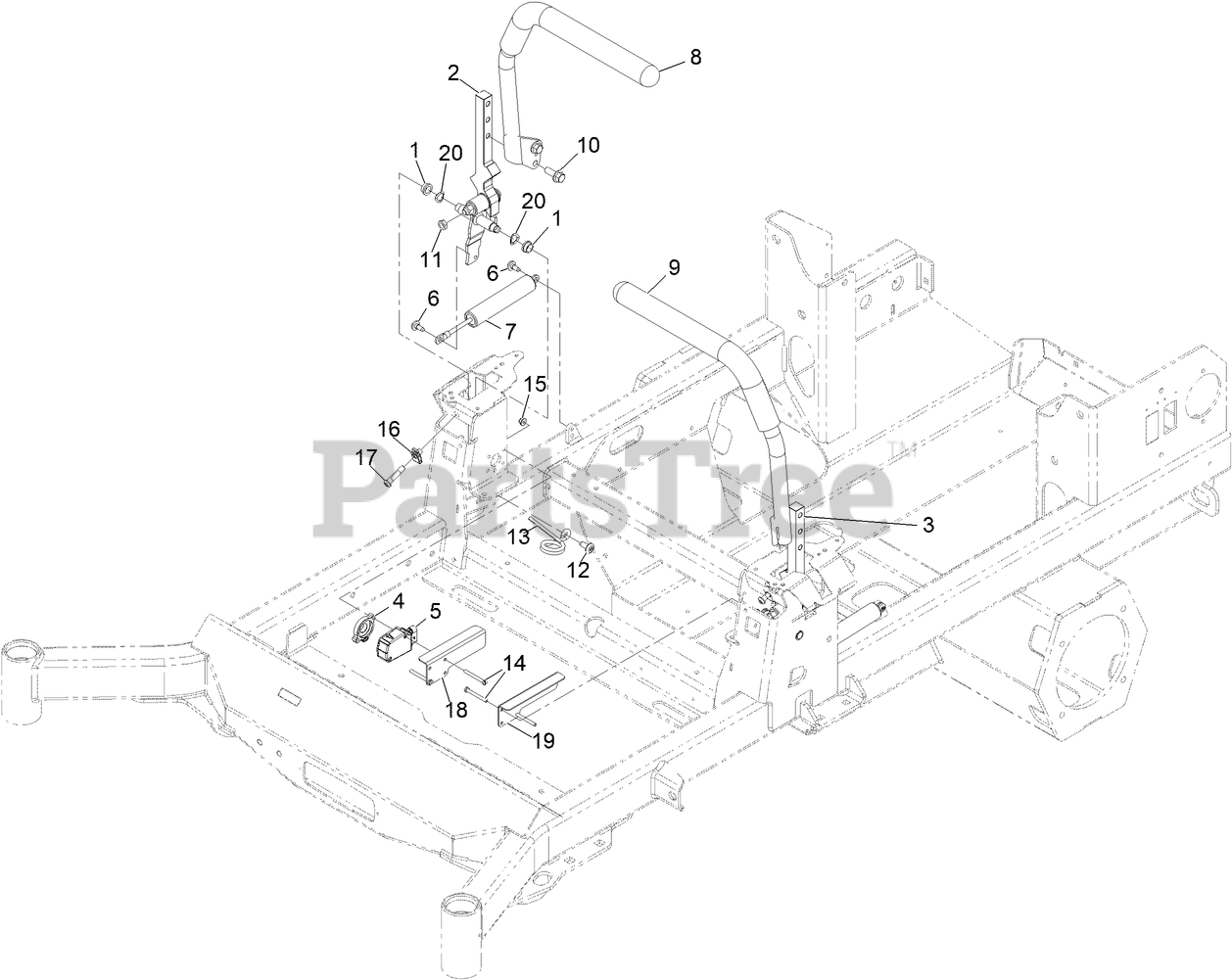

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

2

Exmark 146-3655

RH MOTION CONTROL ASM

$82.99

$

Usually ships in 0 days

0

3

Exmark 146-3656

LH MOTION CONTROL ASM

$82.99

$

Usually ships in 0 days

0

4

Exmark 140-5028

SPACER-SENSOR

$2.99

$

Usually ships in 0 days

0

5

Exmark 122-0917

SENSOR-POSITION

$221.99

$

Usually ships in 0 days

0

6

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 132-6853

DAMPER-NON CAVITATING

$37.99

$

In Stock, only 2 left!

0

8

Exmark 146-3015

ASM-HANDLE RH, BLACK

$135.99

$

Usually ships in 0 days

0

9

Exmark 146-3016

ASM-HANDLE LH, BLACK

$130.99

$

Usually ships in 0 days

0

10

Exmark 110-5052

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

11

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

12

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

13

Exmark 138-7539

SPRING-TORSION

$7.49

$

Usually ships in 3-6 days

0

14

Exmark 3290-424

SCREW-SHH

$3.49

$

Usually ships in 3-6 days

0

15

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

16

Exmark 112-3306

NUT

$3.99

$

Usually ships in 3-6 days

0

17

Exmark 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 147-7779-03

PLATE-COVER, SENSOR RH

$11.99

$

Usually ships in 0 days

0

19

Exmark 147-7778-03

PLATE-COVER, SENSOR LH

$11.99

$

Usually ships in 0 days

0

20

Exmark 138-1642

WASHER-SPRING

$3.99

$

Usually ships in 0 days

0
