LZX38KC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler (SN: 000920000 - 000999999) (2011) Brake Handle Assembly No. 116-1878 Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, 38hp Kohler

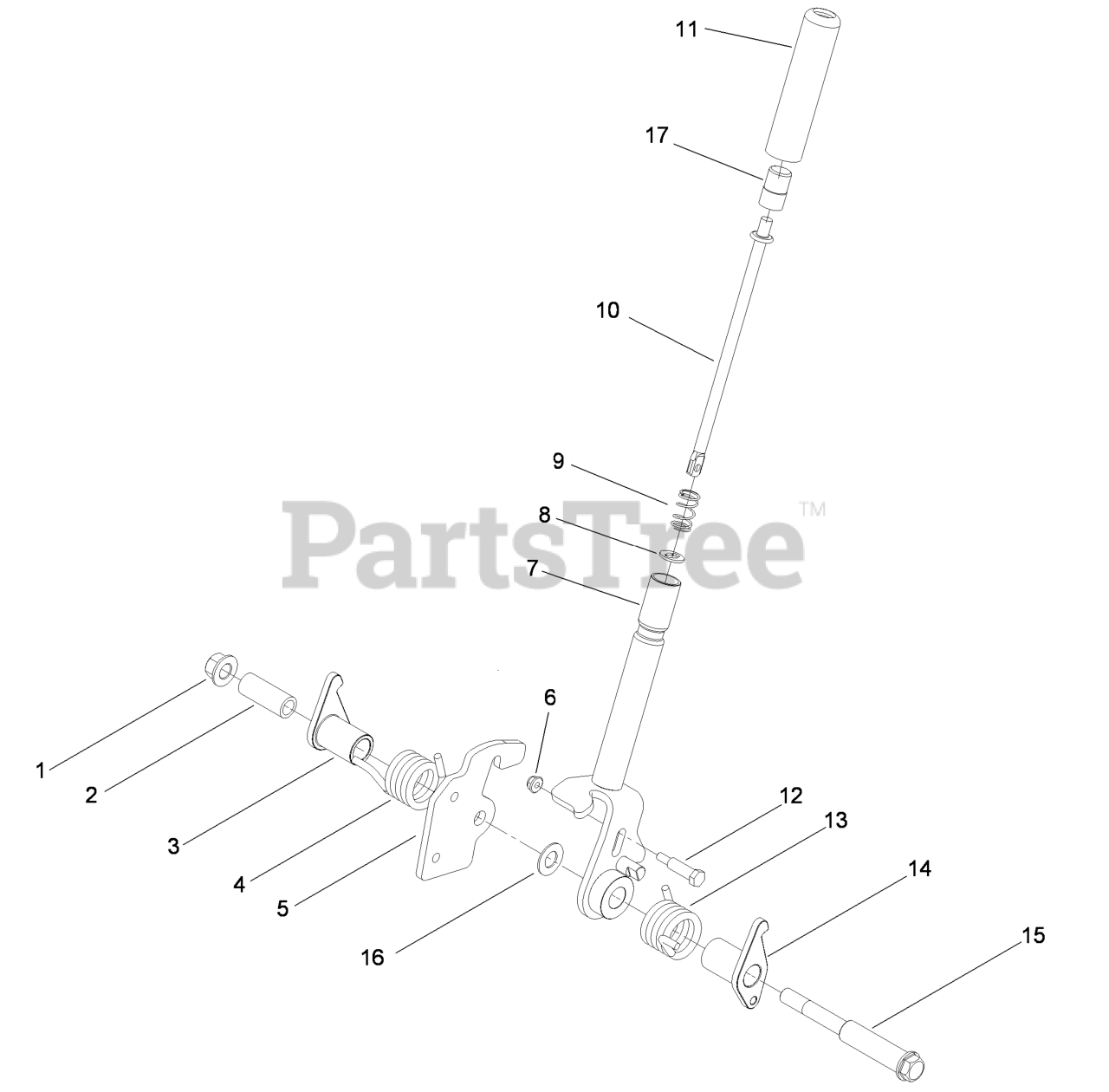

Brake Handle Assembly No. 116-1878 Parts Diagram

  • Title

1

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

2

Exmark 117-0380

SPACER

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 115-3580

ARM-BRAKE, LH

$30.99

$

Usually ships in 3-6 days

0

4

Exmark 117-0376

SPRING-TORSION, RH

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 115-3574

PLATE-LATCH

$

$

Not available

6

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-1876-03

BRAKE HANDLE ASM

$111.99

$

Usually ships in 3-6 days

0

8

Exmark 114-1207

WASHER-SPECIAL

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 114-8187

SPRING-COMPRESSION

$5.99

$

In Stock, only 3 left!

0

10

Exmark 115-3581

ROD-RELEASE, BRAKE

$133.99

$

Usually ships in 3-6 days

0

11

Exmark 115-3592

GRIP

$12.99

$

In Stock, only 2 left!

0

12

Exmark 112-8387

BOLT-SHOULDER

$8.49

$

Usually ships in 3-6 days

0

13

Exmark 117-0375

SPRING-TORSION, LH

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 115-3579

ARM-BRAKE, RH

$

$

Not available

15

Exmark 117-0379

BOLT-SHOULDER

$152.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 115-2750

KNOB

$13.99

$

In Stock, only 2 left!

0
