LZX680KC486 - Exmark 48" Lazer Z X-Series Zero-Turn Mower, Kohler CV680 (SN: 312000000 - 312999999) (2012) Deck Lift Assembly Parts Diagram

48" Lazer Z X-Series Zero-Turn Mower, Kohler CV680

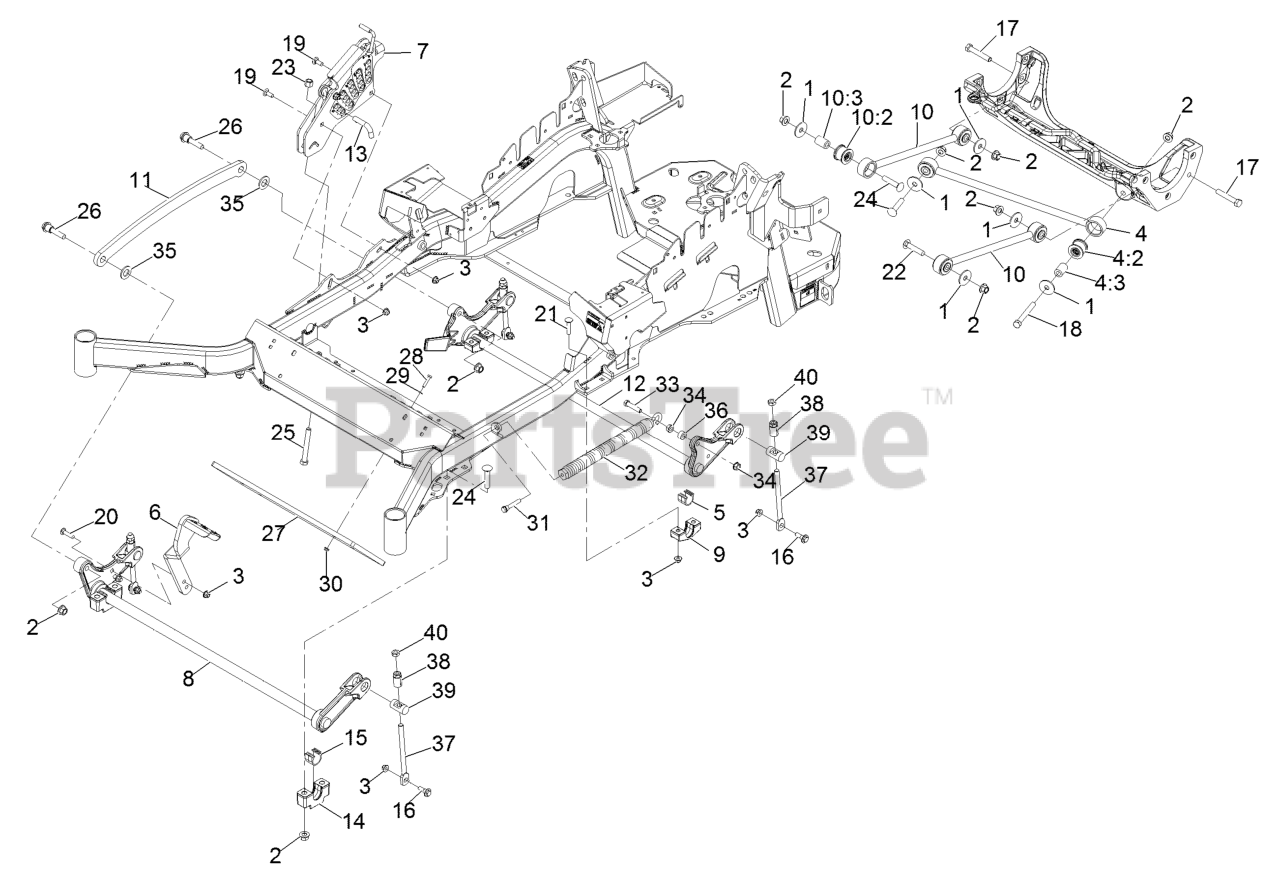

Deck Lift Assembly Parts Diagram

  • Title
1

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 4 left!

0

2

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

PANHARD ROD ASM

$137.99

$

In Stock, Qty 6

0

4:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

4:3

$6.49

$

In Stock, Qty 6

0

5

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 8

0

6

Exmark 116-1919-01

LEVER-FOOT

$95.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$265.99

$

In Stock, only 1 left!

0

8

Exmark 116-1771-03

126-2477-03
(Superseded to 126-2477-03)

$235.99

$

Usually ships in 3-6 days

0

9

Exmark 116-0818-03

132-4719
(Superseded to 132-4719)

$43.99

$

In Stock, only 1 left!

0

10

Exmark 109-7952

DECK STRUT ASM

$140.99

$

In Stock, only 2 left!

0

10:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

10:3

$6.49

$

In Stock, Qty 6

0

11

Exmark 116-0797-03

LINK-LIFT, DECK

$133.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2645-03

LIFT-DECK, REAR

$391.99

$

Usually ships in 3-6 days

0

13

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 5

0

14

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 8

0

15

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 15

0

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 14

0

17

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

18

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

22

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

23

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 116-0827-01

WEIGHT,TOE BOARD

$271.99

$

Usually ships in 3-6 days

0

28

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

$1.49

$

In Stock, Qty 20+

0

31

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, only 1 left!

0

32

Exmark 116-0886

SPRING-EXTENSION

$133.99

$

Usually ships in 3-6 days

0

33

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 10

0

34

$4.49

$

In Stock, Qty 19

0

35

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

36

$7.99

$

Usually ships in 3-6 days

0

37

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

0

38

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

0

39

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

0

40

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
