LZX801GKA606C1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Caster Wheel and Fork Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

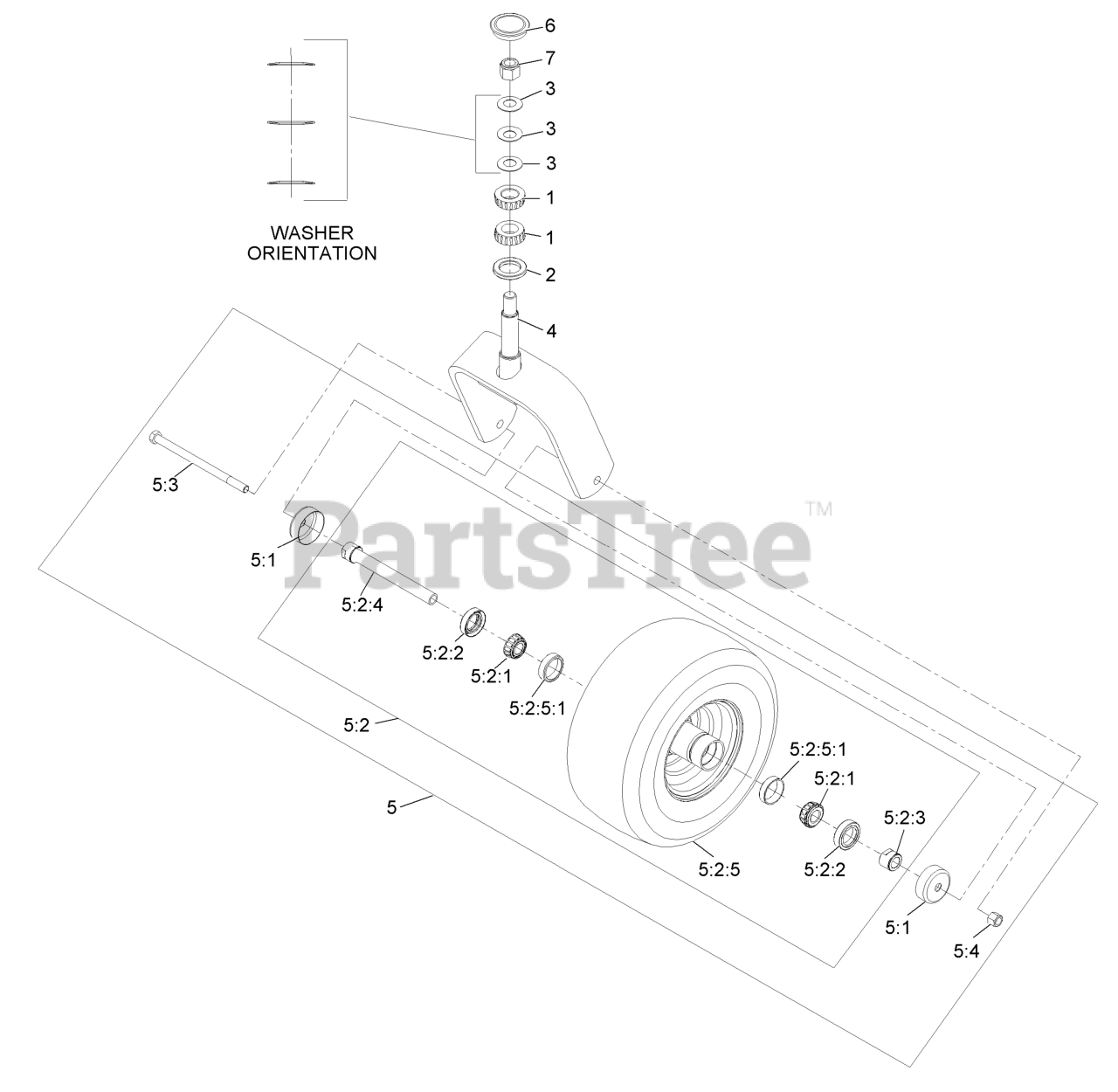

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 1-543509

Cone-Bearing Tapered Roller

$14.99

$

In Stock, Qty 20+

0

2

Exmark 116-5647

SEAL-GREASE

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

4

Exmark 116-6707-01

116-8888
(Superseded to 116-8888)

$197.99

$

In Stock, Qty 20+

0

5

Exmark 109-9127

WHEEL & TIRE ASM

$362.99

$

In Stock, Qty 20+

0

5:1

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

5:2

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

5:2:1

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 18

0

5:2:2

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

5:2:3

Spacer-Nut

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$

$

Not available

5:2:4

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

5:2:5

Exmark 126-5361

AXLE CASTER ASM

Note: Not serviced separately

$20.99

$

In Stock, Qty 13

0

5:2:5:1

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 6

0

5:3

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

0

5:4

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 18

0

7

Exmark 3296-51

NUT-LOCK, NI

$6.99

$

In Stock, Qty 20+

0
