LZX820AKA726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) Controls Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

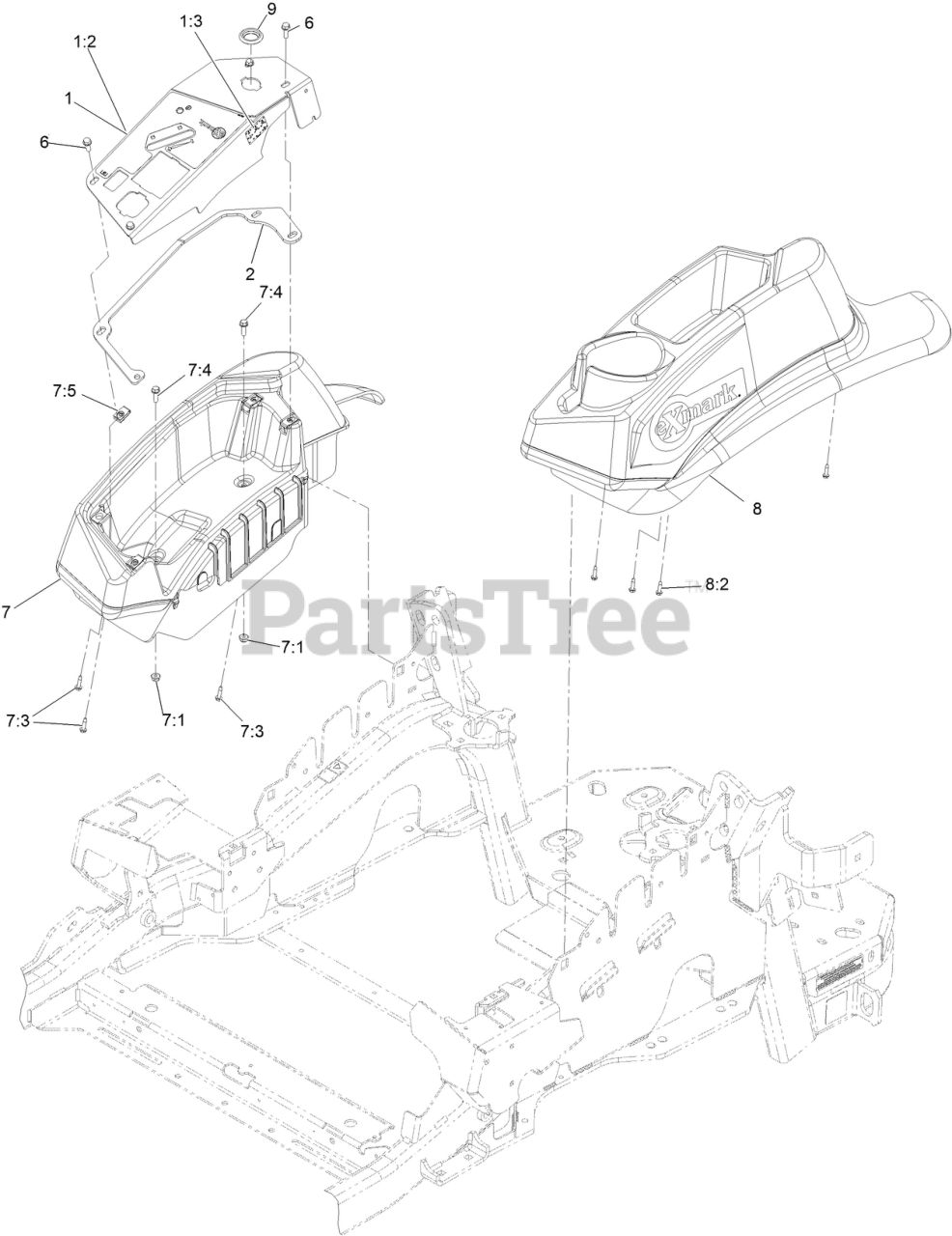

Controls Assembly Parts Diagram

  • Title

1

Exmark 146-4537

ASM-CONTROL PANEL W/DECAL

$135.99

$

Usually ships in 0 days

0

1:2

Exmark 146-1761

DECAL-CONTROL PANEL

$18.99

$

Usually ships in 0 days

0

1:3

Exmark 146-3416

DECAL-FUSE

$7.49

$

Usually ships in 0 days

0

2

Exmark 146-2265-03

SPACER-CONTROL PANEL, KAW 820

$20.99

$

Usually ships in 0 days

0

6

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 109-9341

CONSOLE,RH NARROW ASM

$270.99

$

Usually ships in 3-6 days

0

7:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.99

$

Usually ships in 3-6 days

0

7:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

7:5

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Exmark 109-9342

CONSOLE.LH NARROW ASM

$270.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.99

$

Usually ships in 3-6 days

0

9

Exmark 116-1875

PLUG-PLASTIC

$2.99

$

Usually ships in 3-6 days

0
