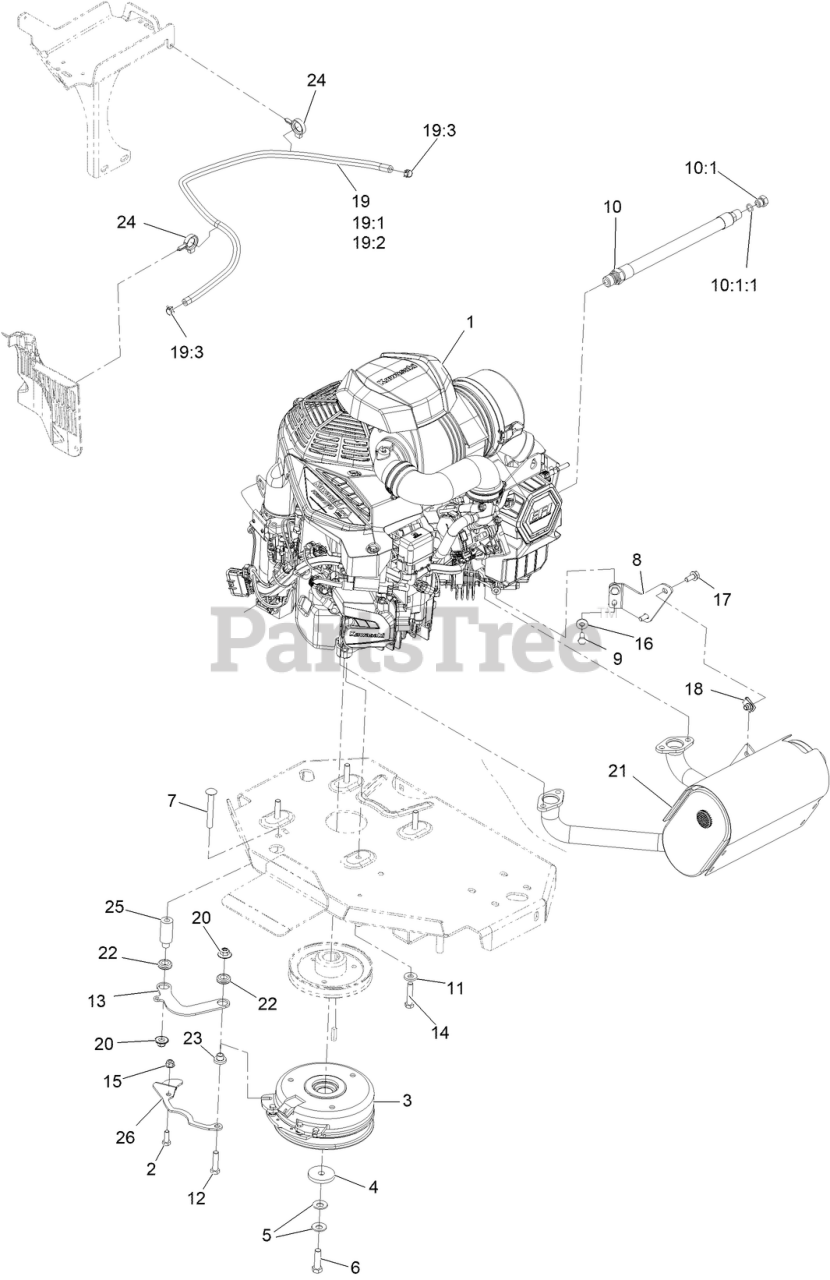

LZX820AKA726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) Engine Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki Fx820V

Note: Not serviced separately | Obtain parts from www.kawpower.com

$

$

Not available

2

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Exmark 126-4185

CLUTCH KIT

$754.99

$

In Stock, only 1 left!

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 5

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

6

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 1 left!

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

8

Exmark 146-1791

BRACKET-MUFFLER 820KAW

$14.99

$

Usually ships in 0 days

0

9

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 9

0

10

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$41.99

$

In Stock, Qty 6

0

10:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

10:1:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

11

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

12

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 2 left!

0

14

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

16

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 11

0

17

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 14

0

19

Exmark 126-1414

FUEL LINE ASM

$48.99

$

Usually ships in 3-6 days

0

19:1

Exmark 109-0286

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

0

19:2

Exmark 126-1417

SLEEVE-THERMAL

$37.99

$

Usually ships in 3-6 days

0

19:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

20

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 146-1212

MUFFLER-KAWASAKI FX820V

$275.99

$

Usually ships in 0 days

0

22

Exmark 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 2 left!

0

23

Exmark 116-3318

SPACER

$20.99

$

In Stock, only 2 left!

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

25

Exmark 116-3319

SPACER

$26.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3331-01

BELT-GUIDE

$28.99

$

In Stock, only 1 left!

0
