LZX820AKA726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) Height of Cut Box Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

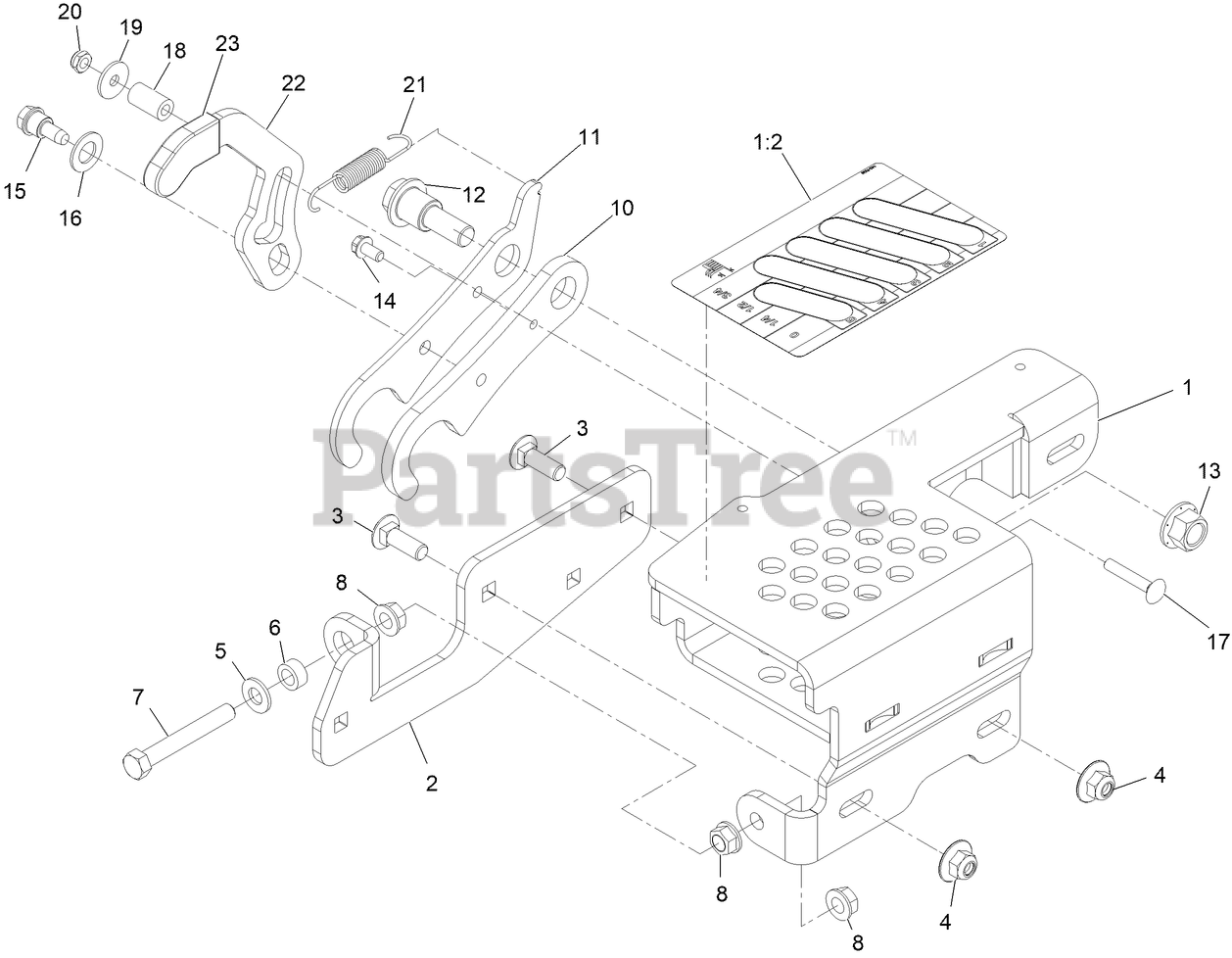

Height of Cut Box Assembly Parts Diagram

  • Title

1

Exmark 142-8572

ASM- Box HOC W/Decal

$247.99

$

Usually ships in 0 days

0

1:2

Exmark 142-7630

Decal- Height Of Cut

$9.99

$

Usually ships in 0 days

0

2

Exmark 142-6926-01

Bracket- Mount HOC

$27.99

$

Usually ships in 0 days

0

3

Exmark 3231-38

Bolt-Carriage 3/8-16 X 1 1/4

$8.49

$

In Stock, only 4 left!

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 114127

Spacer

$9.49

$

In Stock, only 2 left!

0

7

Exmark 112-7451

SCREW-TAP

$4.99

$

Usually ships in 3-6 days

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 70-1160

WASHER

$4.49

$

Usually ships in 3-6 days

0

11

Exmark 142-9266

Plate- Pawl

$16.99

$

Usually ships in 0 days

0

12

Exmark 142-9265

Plate- Pawl

$13.99

$

Usually ships in 0 days

0

13

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, Qty 20+

0

14

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 15

0

15

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 115-1958

BOLT-SHOULDER

$8.99

$

In Stock, Qty 10

0

17

Exmark 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

18

Exmark 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

19

Exmark 142-9115

Spacer- 0.50" OD

$3.99

$

Usually ships in 0 days

0

20

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 8

0

21

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Exmark 142-8428

Spring- Extension

$2.99

$

Usually ships in 0 days

0

23

Exmark 142-8309

Lever- Transport W/Grip

$30.99

$

Usually ships in 0 days

0
