LZX820AKA726Q1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 416150475 - 417930745) (Rev A) (2024) LH Hydro Assembly No. 135-7907 Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

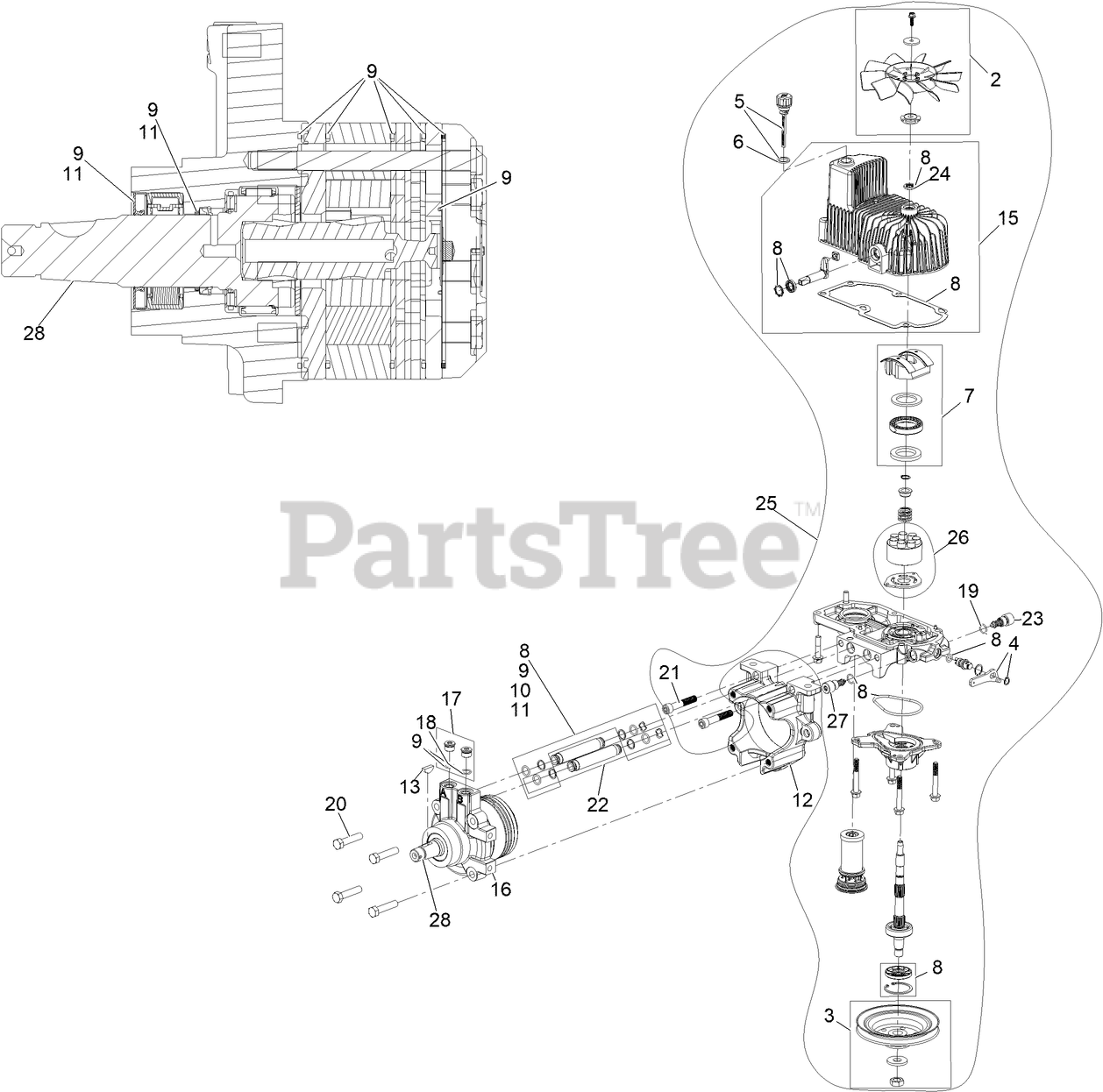

LH Hydro Assembly No. 135-7907 Parts Diagram

  • Title

2

Exmark 142-3603

Kit, 7.8 In Fan

$128.99

$

In Stock, only 1 left!

0

3

Exmark 116-0234

PULLEY KIT

$182.99

$

In Stock, only 1 left!

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$55.99

$

In Stock, Qty 12

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$593.99

$

Usually ships in 3-6 days

0

8

Exmark 142-3604

Kit, Pump Seal

$178.99

$

In Stock, only 2 left!

0

9

Exmark 116-1369

MOTOR SEAL KIT

$292.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$36.99

$

In Stock, only 2 left!

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$164.99

$

Usually ships in 3-6 days

0

12

Exmark 116-5469

NOSE CUP-UHT

$313.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 14

0

15

Exmark 142-4460

Kit, Housing-Hydro LH

$786.99

$

Usually ships in 3-6 days

0

16

Exmark 146-1948

HYD MOTOR,280CC LH SEALED

$1864.99

$

Usually ships in 3-6 days

0

17

Exmark 116-7901

MAGNETIC PLUGS SERVICE KIT

$119.99

$

Usually ships in 3-6 days

0

18

Exmark 76-1900

O-RING

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 116-8662

O-RING-CHECK VALVE

$3.49

$

Usually ships in 3-6 days

0

20

Exmark 116-8974

SCREW HH

$5.49

$

In Stock, Qty 15

0

21

Exmark 116-8975

SCREW-HSH

$11.99

$

In Stock, only 2 left!

0

22

Exmark 116-9922

HYDRAULIC TUBE KIT

$174.99

$

Usually ships in 3-6 days

0

23

Exmark 126-7467

SHOCK VALVE, 16CC HYDRO

$110.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7711

SEAL-FAN DRIVE

$27.99

$

In Stock, Qty 5

0

25

Exmark 142-3607

Kit, Pump Section 16Cc LH

$2159.99

$

Usually ships in 3-6 days

0

26

Exmark 142-4501

Kit - 16Cc Port Plate,Rotate Grp

$592.99

$

Usually ships in 3-6 days

0

27

Exmark 142-4458

Shock Valve Orificed 3300

$91.99

$

Usually ships in 3-6 days

0

28

Exmark 146-3749

OUTPUT SHAFT- TL UHT MOTOR

$406.99

$

Usually ships in 0 days

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1370.99

$

Usually ships in 3-6 days

0
