LZX921GKA72600 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

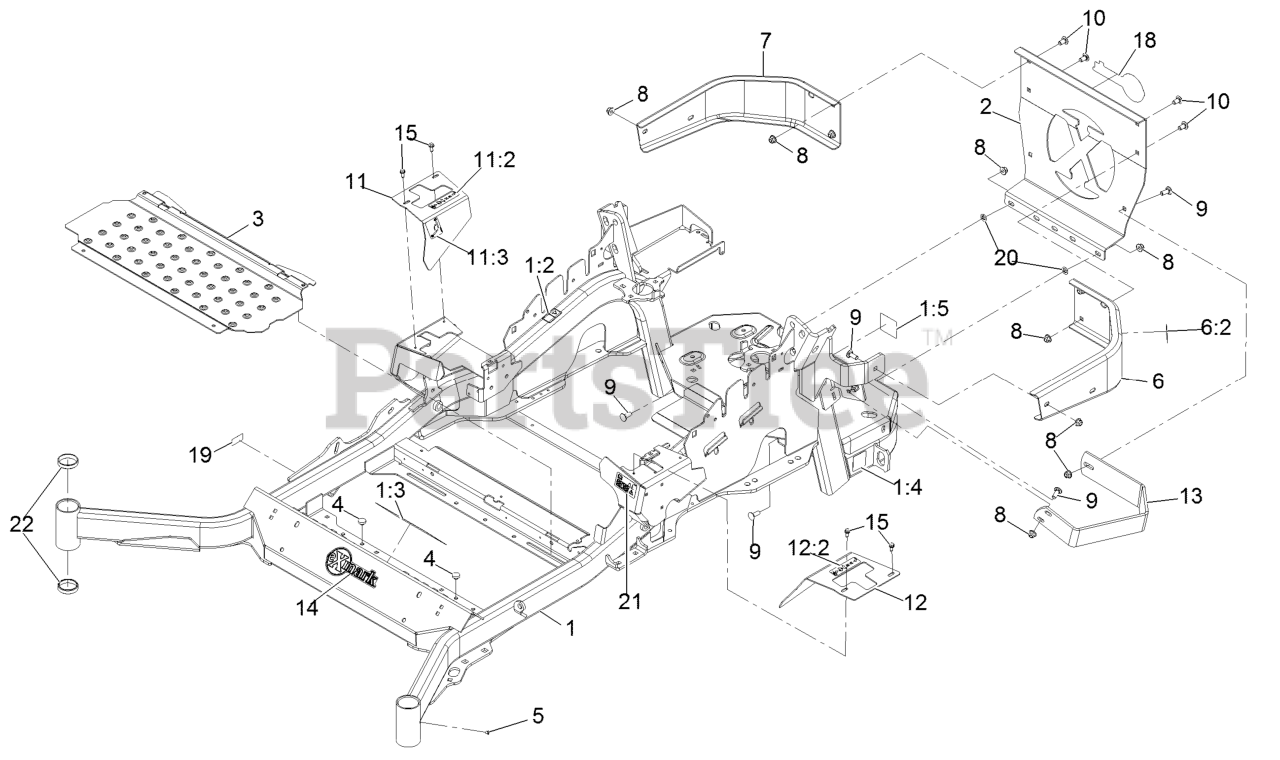

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 126-6620

116-5904
(Superseded to 116-5904)

$2392.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:3

Exmark 132-0871

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

$106.99

$

Usually ships in 3-6 days

0

4

$6.49

$

In Stock, Qty 11

0

$5.49

$

In Stock, Qty 11

0

6

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$47.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$13.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$27.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$20.99

$

Usually ships in 3-6 days

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$58.99

$

Usually ships in 3-6 days

0

14

Exmark 126-6969

DECAL-EXMARK LOGO

$7.49

$

In Stock, Qty 17

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

18

Exmark 126-6965

DECAL-EXMARK LOGO
(Superseded to 126-6877)

$7.49

$

In Stock, Qty 12

0

19

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

20

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 9

0

21

Exmark 117-3864

DECAL-FUEL FILL, CE

$13.99

$

Usually ships in 3-6 days

0

22

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 18

0
