LZX921GKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Deck Lift Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

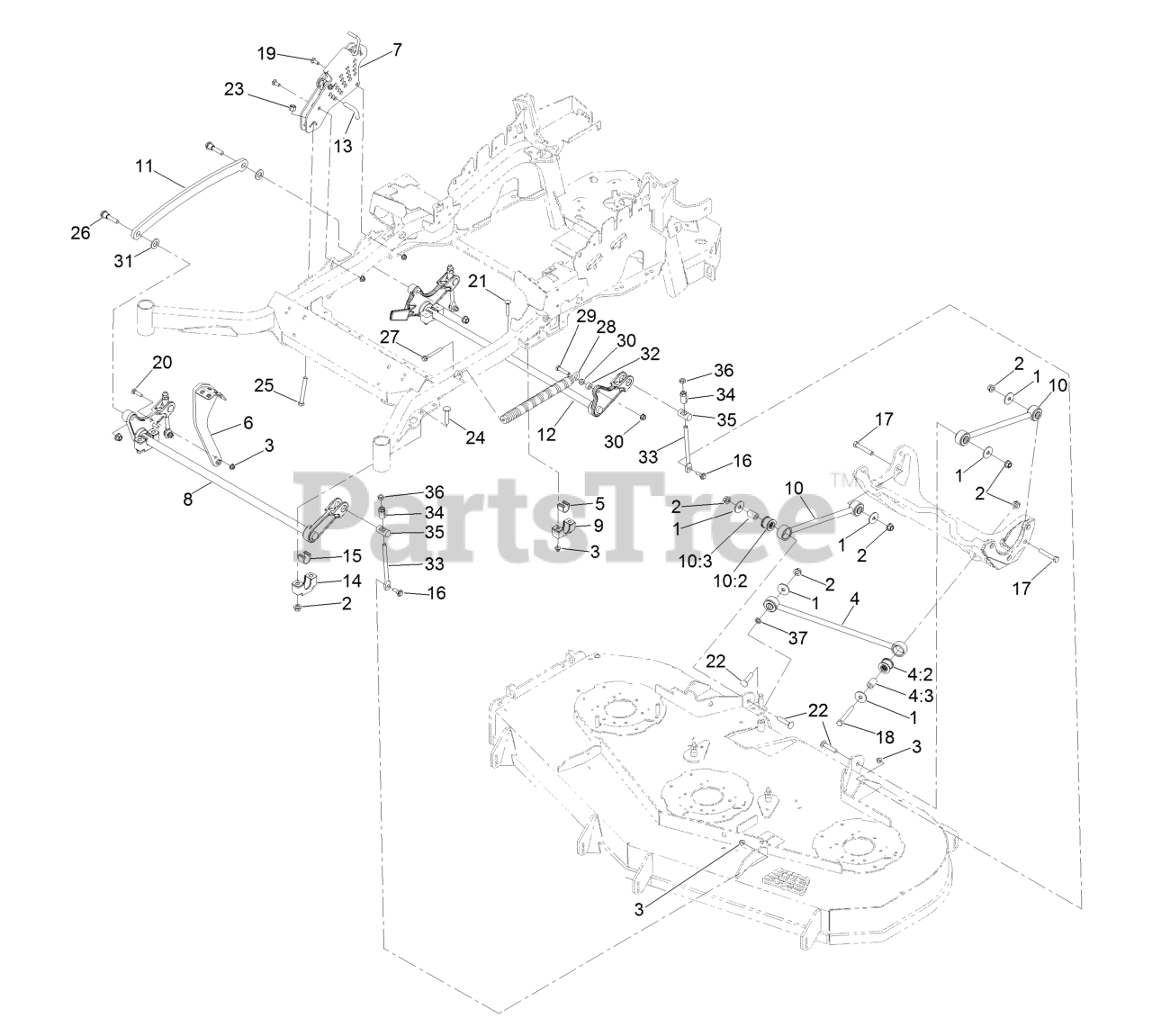

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 86-1990

Washer-Thrust

$4.49

$

In Stock, Qty 15

0

2

Exmark 99-5107

Nut-Lock

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

Panhard Rod ASM

$150.99

$

In Stock, Qty 11

0

4:2

Exmark 109-5009

Bushing-Suspension, Rubber

$5.49

$

In Stock, Qty 20+

0

4:3

Exmark 109-5010

Spacer

$14.99

$

In Stock, Qty 20+

0

5

Exmark 109-7173

Bearing-Cross Shaft, Rear

$5.49

$

In Stock, Qty 20+

0

6

Exmark 131-8812-01

Lever-Foot

$78.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$289.99

$

In Stock, only 1 left!

0

8

Exmark 126-2477-03

Decklift-Front

$256.99

$

Usually ships in 3-6 days

0

9

Exmark 127-0553

Support-Cross Shaft, Bearing Rear

$15.99

$

In Stock, Qty 10

0

10

Exmark 109-7952

Decklift-Front

$153.99

$

In Stock, Qty 8

0

10:2

Exmark 109-5009

Support-Cross Shaft, Bearing Rear

$5.49

$

In Stock, Qty 20+

0

10:3

Exmark 109-5010

Deck Strut ASM

$14.99

$

In Stock, Qty 20+

0

11

Exmark 116-0797-03

Bushing-Suspension, Rubber

$144.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2645-03

Lift-Deck, Rear

$418.99

$

Usually ships in 3-6 days

0

13

Exmark 116-5584

Pin-HOC

$5.49

$

In Stock, Qty 20+

0

14

Exmark 109-9409

Support-Cross Shaft, Bearing Rear

$15.99

$

In Stock, Qty 15

0

15

Exmark 109-9410

Bearing-Cross Shaft, Front

$5.49

$

In Stock, Qty 20+

0

16

Exmark 109-9840

Screw-Shoulder, HHF

$5.49

$

In Stock, Qty 20+

0

17

Exmark 325-12

Screw-HH

$6.49

$

In Stock, Qty 20+

0

18

Exmark 325-17

Screw-HH

$6.49

$

In Stock, Qty 20+

0

19

Exmark 3231-2

Bolt-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3231-4

Screw-CARR

$4.49

$

In Stock, Qty 20+

0

21

Exmark 3231-7

Screw-CARR

$7.49

$

In Stock, Qty 20+

0

22

Exmark 3233-34

Screw-CARR

$10.99

$

In Stock, Qty 14

0

23

Exmark 3296-23

Nut-Lock, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-1700

Bolt-CARR

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 116-0559

Bolt-TAP

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 116-2022

Screw-HHF, Shoulder

$9.49

$

Usually ships in 3-6 days

0

27

Exmark 92-7674

Bolt-Shoulder

$2.99

$

In Stock, only 2 left!

0

28

Exmark 116-0000

Spring-Extension

$144.99

$

Usually ships in 3-6 days

0

29

Exmark 109-9065

Screw-HH

$3.99

$

In Stock, Qty 20+

0

30

Exmark 32128-37

Nut-HF

$4.99

$

In Stock, Qty 20+

0

31

Exmark 3256-28

Washer-Flat

$3.99

$

In Stock, Qty 20+

0

32

Exmark 116-2695

Spacer

$20.99

$

Usually ships in 3-6 days

0

33

Exmark 109-8007

Link-Adjuster, Deck Lift

$17.99

$

In Stock, Qty 12

0

34

Exmark 109-7840

Adjuster-Lift, Deck

$8.49

$

In Stock, Qty 18

0

35

Exmark 109-8353

Trunnion

$15.99

$

In Stock, Qty 20+

0

36

Exmark 3218-5

Nut-Jam

$1.49

$

In Stock, Qty 20+

0

37

Exmark 126-2916

Nut-Push

$1.49

$

In Stock, only 1 left!

0
