LZX940EKC72RT0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 316000000 - 399999999) (2016) Deck Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

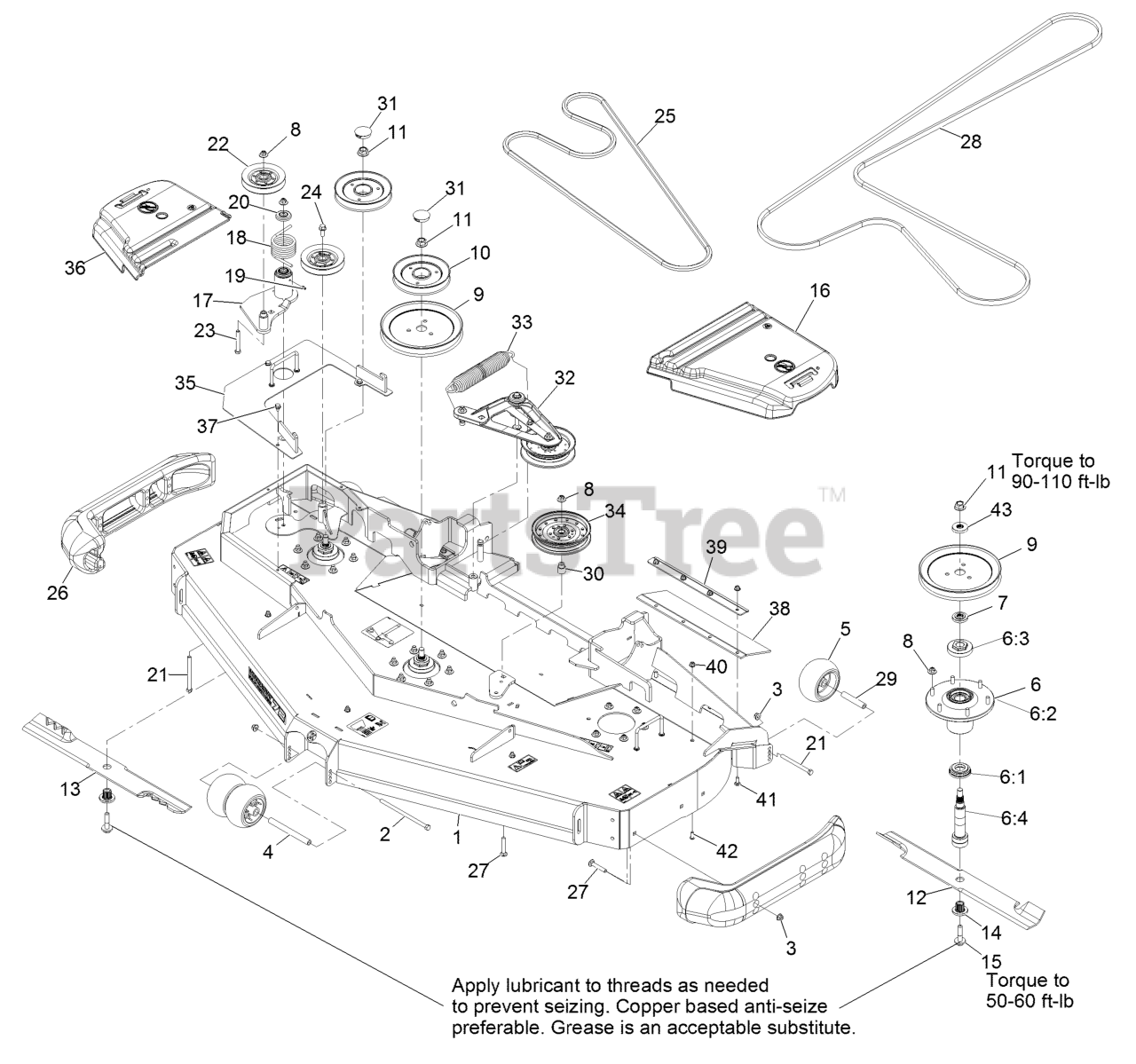

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9827

DECK-RD72 NLZ, W/DECALS

$3758.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

5

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

6

Exmark 109-6917

ASM,SPINDLE HOUSING

$425.99

$

In Stock, Qty 8

0

6:1

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

In Stock, Qty 5

0

6:2

Exmark 103-9539

ASM,CUTTER HOUSING

$415.99

$

In Stock, only 2 left!

0

6:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$26.99

$

In Stock, only 2 left!

0

6:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$152.99

$

In Stock, Qty 6

0

7

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 20+

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2180

SHEAVE,BLADE DRIVE 9.00

$56.99

$

In Stock, only 3 left!

0

10

Exmark 116-8193

SHEAVE-RD, REVERSE DRIVE

$201.99

$

In Stock, only 1 left!

0

11

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$41.99

$

In Stock, Qty 20+

0

12

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$46.99

$

In Stock, Qty 20+

0

12

Exmark 116-5171

116-5171-S
(Superseded to 116-5171-S)

$46.99

$

In Stock, Qty 20+

0

13

Exmark 116-8503

116-8503-S
(Superseded to 116-8503-S)

$44.99

$

In Stock, Qty 20+

0

13

Exmark 116-8502

116-8502-S
(Superseded to 116-8502-S)

$41.99

$

In Stock, Qty 15

0

14

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

15

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

16

Exmark 109-6938

COVER-BELT, LH

$102.99

$

In Stock, Qty 19

0

17

Exmark 126-0853

IDLER ASM

$270.99

$

Usually ships in 3-6 days

0

18

Exmark 108-1921

SPRING-TORSION

$31.99

$

Usually ships in 3-6 days

0

19

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

20

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 8

0

21

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

22

Exmark 126-1478

SHEAVE

$53.99

$

In Stock, only 3 left!

0

23

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

25

Exmark 116-8501

BELT

$133.99

$

Usually ships in 3-6 days

0

26

Exmark 112-1479

SKID-BUMPER, DECK

$110.99

$

Usually ships in 3-6 days

0

27

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$7.49

$

In Stock, Qty 20+

0

28

Exmark 109-8070

BELT
(Superseded to 109-8070-SL)

$157.99

$

Usually ships in 3-6 days

0

29

Exmark 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

30

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

31

Exmark 116-2253

PLUG,BLACK NYLON 1.75

$3.49

$

In Stock, only 3 left!

0

32

Exmark 126-1720

DECK IDLER ASM

$270.99

$

In Stock, only 1 left!

0

33

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

34

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$66.99

$

In Stock, only 2 left!

0

35

Exmark 125-9374-01

COVER-REVERSE DRIVE

$158.99

$

Usually ships in 3-6 days

0

36

Exmark 116-0094

COVER-BELT, RH

$92.99

$

In Stock, Qty 20+

0

37

Exmark 9266934

SCREW

$9.49

$

In Stock, Qty 7

0

38

Exmark 125-9380

GUARD-TIRE

$27.99

$

In Stock, only 2 left!

0

39

Exmark 126-0414-01

SUPPORT-OUTER FLAP

$25.99

$

Usually ships in 3-6 days

0

40

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

42

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

43

Exmark 103-9523

SPACER,SPLINED

$8.99

$

In Stock, Qty 16

0
