LZX940KC606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler CV940 (SN: 312000000 - 312999999) (2012) Deck Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler CV940

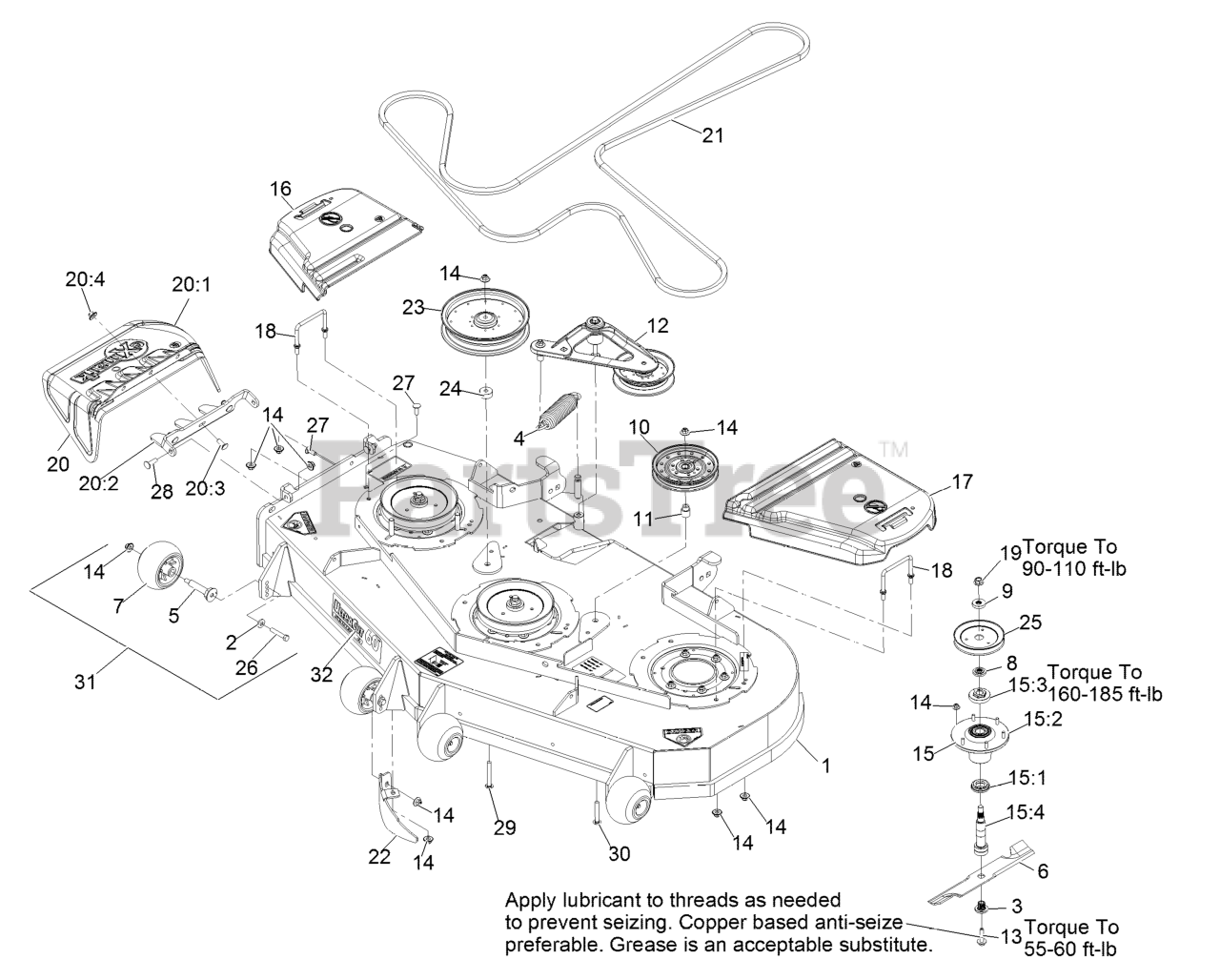

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-4232

DECK ASM,W/DECALS 60
(Superseded to 146-1330)

$2391.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$25.99

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

5

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$42.99

$

In Stock, Qty 20+

0

6

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

6

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$35.99

$

In Stock, Qty 20+

0

6

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$37.99

$

In Stock, Qty 20+

0

6

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$41.99

$

In Stock, Qty 20+

0

6

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$34.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.99

$

In Stock, only 2 left!

0

9

Exmark 103-9523

SPACER,SPLINED

$9.49

$

In Stock, Qty 9

0

10

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$68.99

$

In Stock, Qty 16

0

11

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

12

Exmark 116-3755

DECK IDLER ASM

$300.99

$

In Stock, Qty 12

0

13

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 109-6917

ASM,SPINDLE HOUSING

$447.99

$

In Stock, Qty 9

0

15:1

Exmark 103-9504

GUARD,BOTTOM

$13.99

$

Usually ships in 3-6 days

0

15:2

Exmark 103-9539

ASM,CUTTER HOUSING

$439.99

$

In Stock, only 1 left!

0

15:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$27.99

$

Usually ships in 3-6 days

0

15:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$160.99

$

In Stock, only 1 left!

0

16

Exmark 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

17

Exmark 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

18

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

19

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

20

Exmark 109-7188

ASM,DISCHARGE CHUTE

$129.99

$

In Stock, Qty 14

0

20:1

Exmark 109-2738

CHUTE,DISCHARGE

$90.99

$

In Stock, Qty 8

0

20:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$60.99

$

In Stock, only 1 left!

0

20:3

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

20:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-8073

BELT,V-5V-198.75
(Superseded to 135-5774-SL)

$185.99

$

In Stock, Qty 20+

0

22

Exmark 116-5614-01

DOGLEG - LZ60

$71.99

$

Usually ships in 3-6 days

0

23

Exmark 109-8590

PULLEY-IDLER

$197.99

$

In Stock, only 1 left!

0

24

Exmark 103-2956

SPACER-IDLER

$9.99

$

In Stock, only 2 left!

0

25

Exmark 109-9511

SHEAVE,BLADE DRIVE 7.25
(Superseded to 146-4627)

$41.99

$

In Stock, only 2 left!

0

26

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

29

Exmark 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

30

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$56.99

$

In Stock, Qty 20+

0

32

Exmark 109-9439

DECAL,ULTRACUT 60 SERIES

$27.99

$

Usually ships in 3-6 days

0
