Exmark LZX980EKC606R1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Engine, Clutch and Muffler Assembly Parts Lookup with Diagrams

1

Engine-Kohler Ecv980 - 3021

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

Not available 

3

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

4

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

5

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 13

6

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 14

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

8

Exmark 116-5316

OIL DRAIN HOSE ASM

$58.99

$

In Stock, Qty 15

9

Exmark 353-508

PLUG-HH

$8.99

$

In Stock, only 4 left!

9:2

Exmark 237-42

O-RING

Note: Torque to 24-26 ft-lb

$3.49

$

In Stock, Qty 20+

9:2:1

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

10

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 2 left!

12

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

13

Exmark 116-9048

BRACKET-MUFFLER

$23.99

$

Usually ships in 3-6 days

14

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

15

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

16

Exmark 103-1390

BUSHING

$6.99

$

Usually ships in 3-6 days

17

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

18

Exmark 116-4295

SCREW-HH M6-1 X 20Mm W/Patch

$5.49

$

In Stock, only 3 left!

19

Exmark 126-4645

MUFFLER-940-980 KOH EFI

$594.99

$

Usually ships in 3-6 days

20

Exmark 126-4645

MUFFLER-940-980 KOH EFI

$594.99

$

Usually ships in 3-6 days

20

Exmark 126-5423

MUFFLER KIT

$714.99

$

Usually ships in 3-6 days

20:2

Exmark 126-0359

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

20:3

Exmark 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

21

Exmark 116-3331-01

BELT-GUIDE

$28.99

$

In Stock, only 1 left!

22

Exmark 116-3318

SPACER

$20.99

$

In Stock, only 3 left!

23

Exmark 116-3319

SPACER

$26.99

$

Usually ships in 3-6 days

24

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

25

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

26

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

27

Exmark 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 2 left!

29

Exmark 135-7328

Baffle Kit

$115.99

$

Usually ships in 3-6 days

29:2

Exmark 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

29:2

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

30

Exmark 126-0231

FUEL LINE ASM

$28.99

$

Usually ships in 3-6 days

30:1

Exmark 109-0284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

30:2

Exmark 126-0232

SLEEVE, THERMAL

$15.99

$

Usually ships in 3-6 days

30:3

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

31

Exmark 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

32

Exmark 68-9410

Screw-HHF

$9.49

$

Usually ships in 3-6 days

33

Exmark 126-5620

BRACKET-MUFFLER, FRONT

$17.99

$

Usually ships in 3-6 days

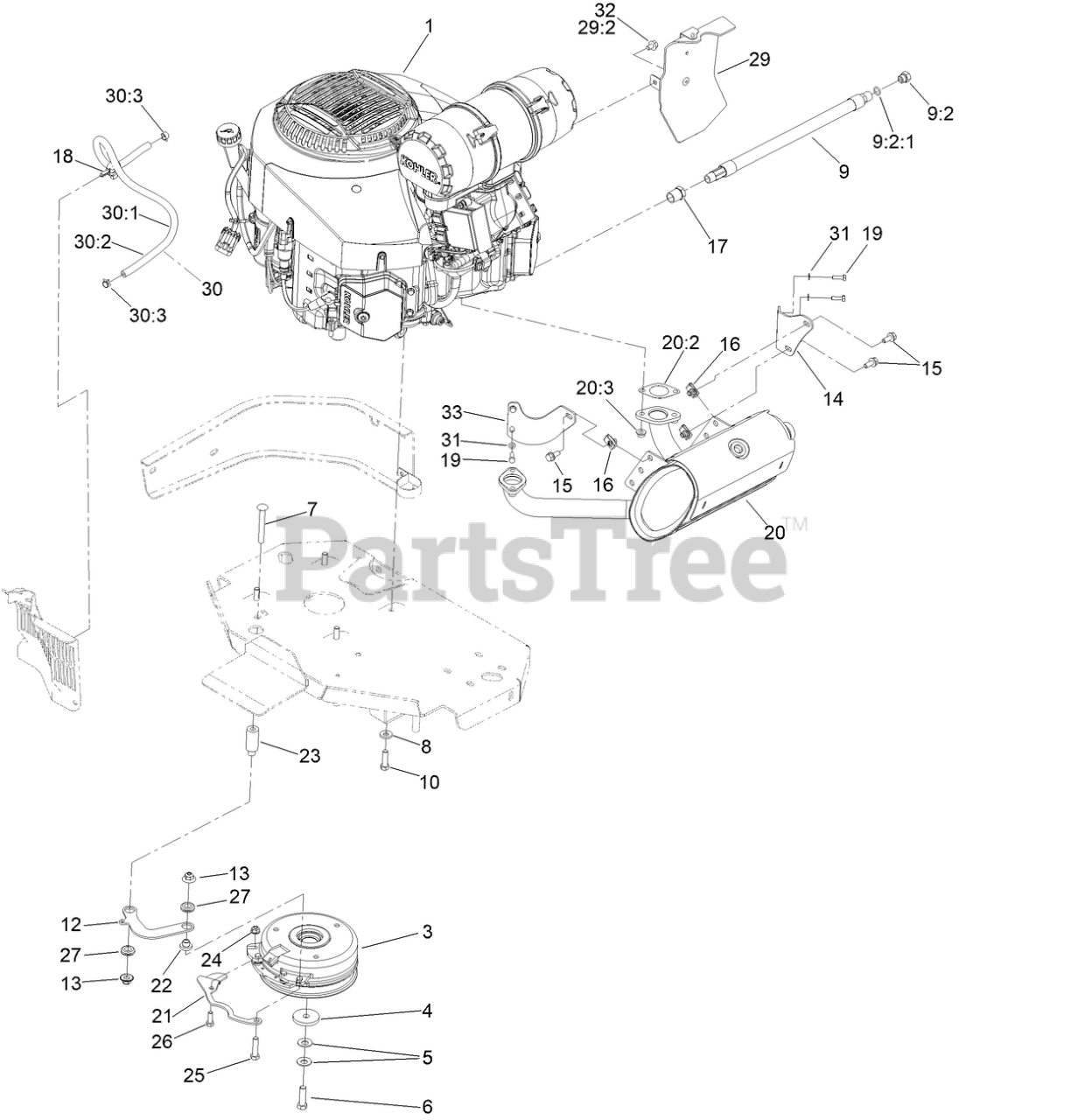

LZX980EKC606R1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 413950474 & Above) (Rev A) (2023) Engine, Clutch and Muffler Assembly Parts Diagram

Engine, Clutch and Muffler Assembly Parts Diagram
