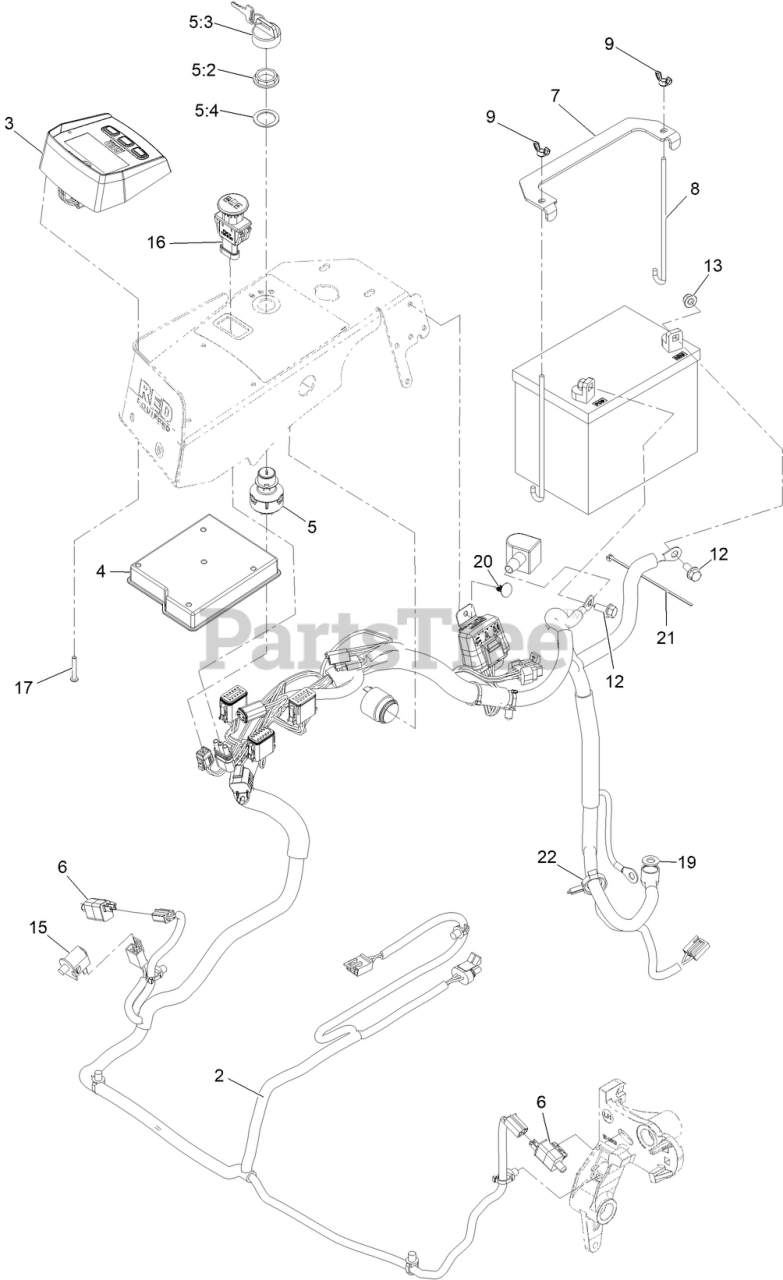

LZX980EKC726R1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 413950474 & Above) (Rev A) (2023) Electrical Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

Electrical Assembly Parts Diagram

  • Title

2

Exmark 142-7959

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$571.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4232

MODULE, LDU

$483.99

$

In Stock, only 2 left!

0

4

Exmark 135-3427

Module-Mcu

$409.99

$

Usually ships in 3-6 days

0

5

Exmark 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 20+

0

5:2

Exmark 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 3 left!

0

5:3

Exmark 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 20+

0

5:4

Exmark 108-8659

WASHER-BACKUP

$15.99

$

In Stock, only 1 left!

0

6

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

7

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$23.99

$

In Stock, only 2 left!

0

8

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 14

0

9

Exmark 1-543792

WINGNUT

$6.99

$

In Stock, Qty 12

0

12

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

16

Exmark 126-6187

SWITCH-PTO, SEALED

$58.99

$

In Stock, Qty 20+

0

17

Exmark 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0
